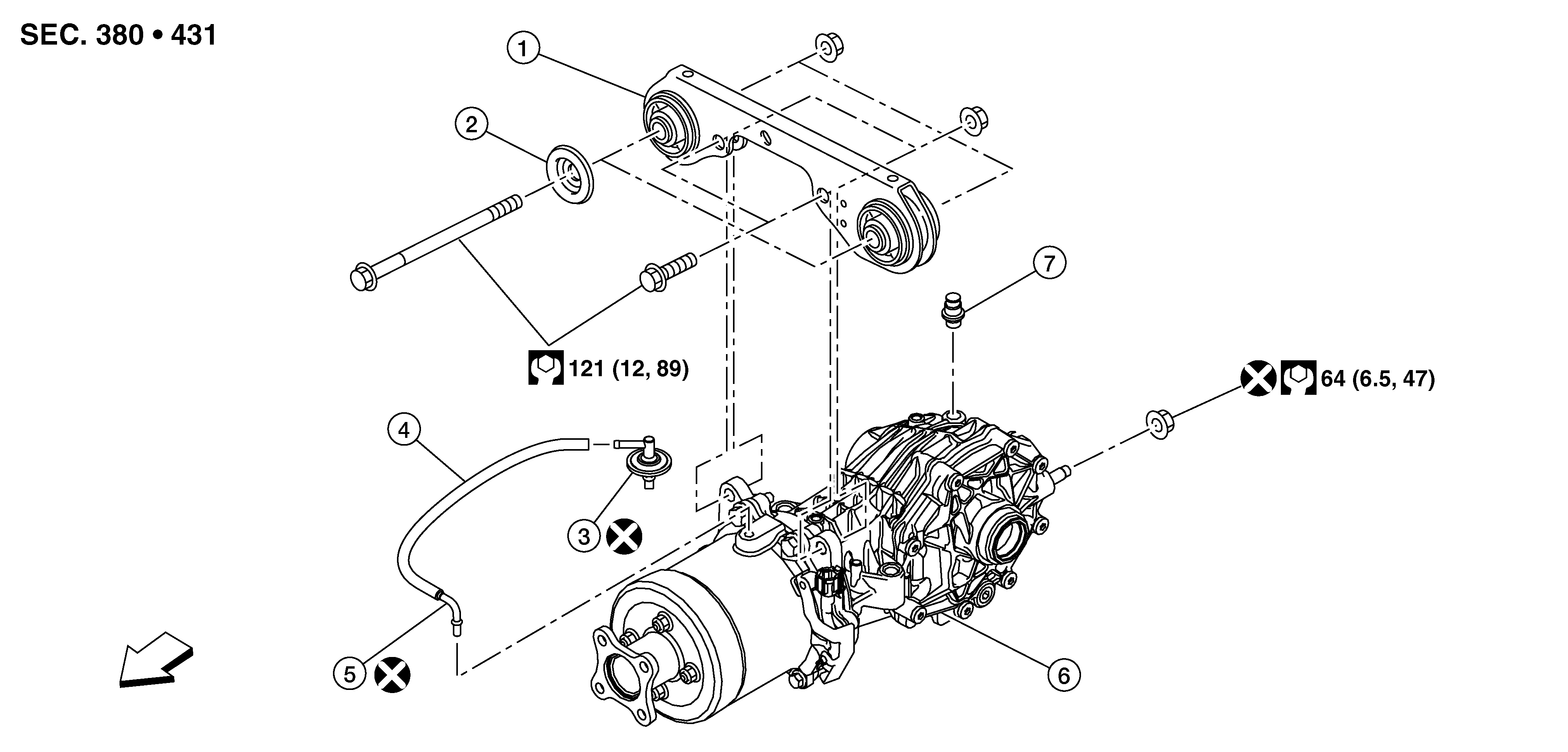

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Final drive bracket
|
2.
|
Washer
|
3.
|
Breather connector
|
|
4.
|
Breather hose
|
5.
|
Breather tube
|
6.
|
Final drive assembly
|
|
7.
|
Breather
|
|
Front
|
