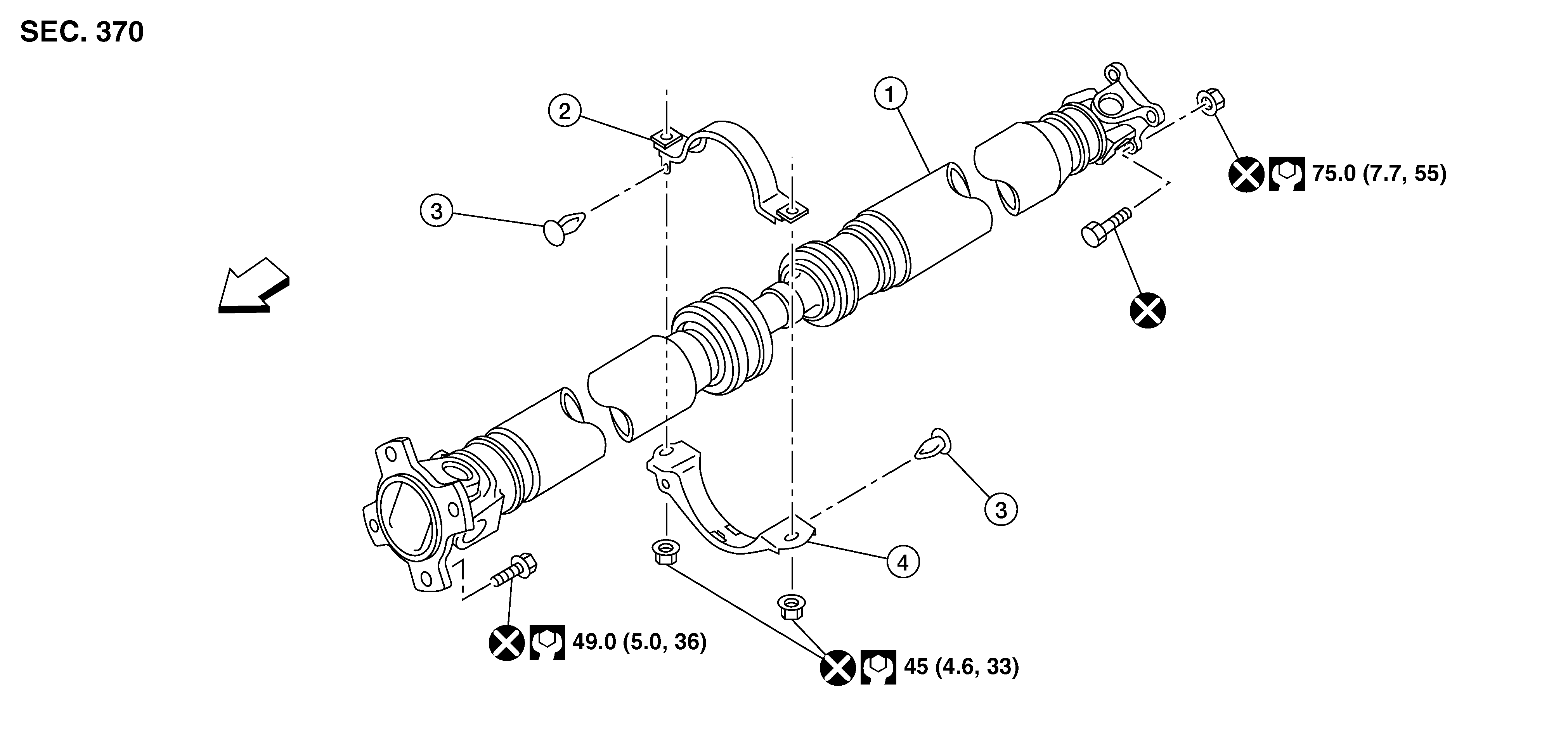

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Propeller shaft assembly
|
2.
|
Center bearing mounting bracket (upper)
|
3.
|
Clip
|
|
4.
|
Center bearing mounting bracket (lower)
|
|
: Vehicle front
|
|
: Always replace after every disassembly.
|
|
: N.m (kg-m, ft-lb)
|
