For USA With AWD
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

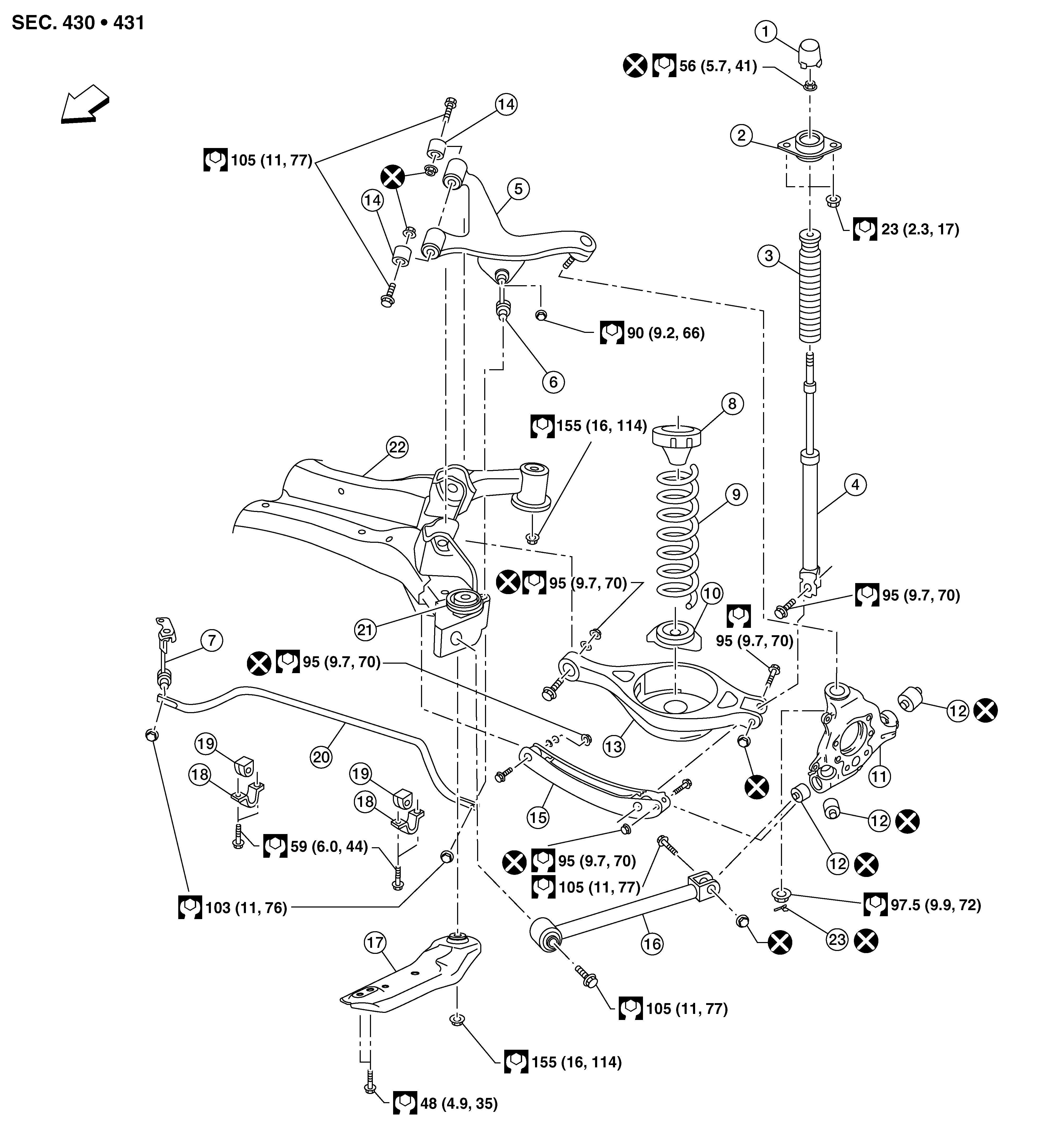

1. |
Cap |
2. |
Shock absorber insulator |
3. |
Bound bumper |
|
4. |
Rear shock absorber |
5. |
Rear suspension arm |
6. |
Connecting rod |
|
7. |
Connecting rod (RH) |
8. |
Upper seat |
9. |
Coil spring |
|
10. |
Lower seat |
11. |
Rear knuckle |
12. |
Bushing |
|
13. |
Rear lower link |
14. |
Suspension arm bushings |
15. |
Front lower link |
|
16. |
Radius rod |
17. |
Front member stay (LH) |
18. |
Stabilizer bar clamp |
|
19. |
Stabilizer bar bushing |
20. |
Stabilizer bar |
21. |
Member stopper |
|
22. |
Rear suspension member |
23. |
Cotter pin |
|
Front |
