Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

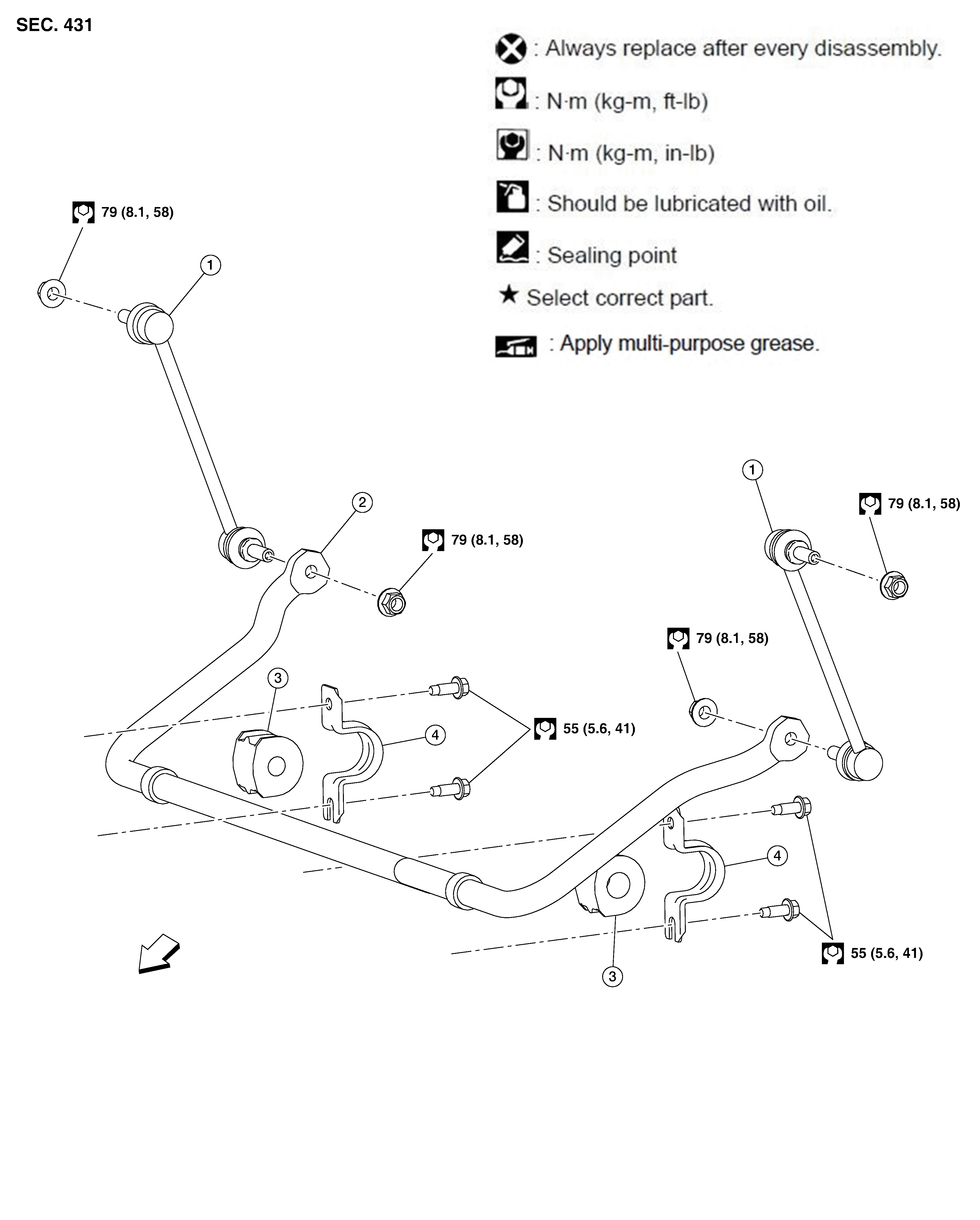

Fig 1: Rear Stabilizer Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension arm	2.	Connecting rod	3.	Stabilizer bar
4.	Stabilizer bar bushing	5.	Stabilizer bar clamp		Front
