Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

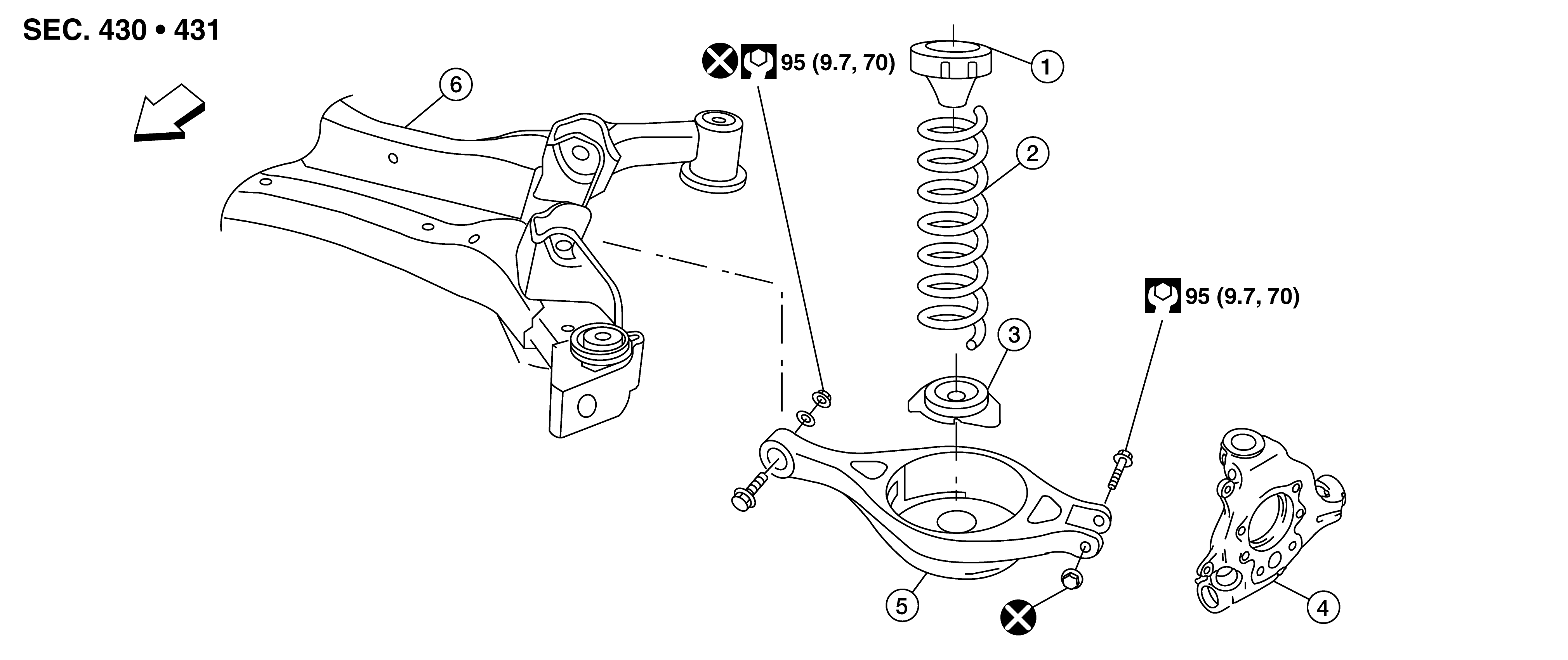

Fig 1: Rear Lower Link Coil Spring Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper seat	2.	Coil spring	3.	Lower seat
4.	Rear knuckle	5.	Rear lower link	6.	Rear suspension member
	Front
