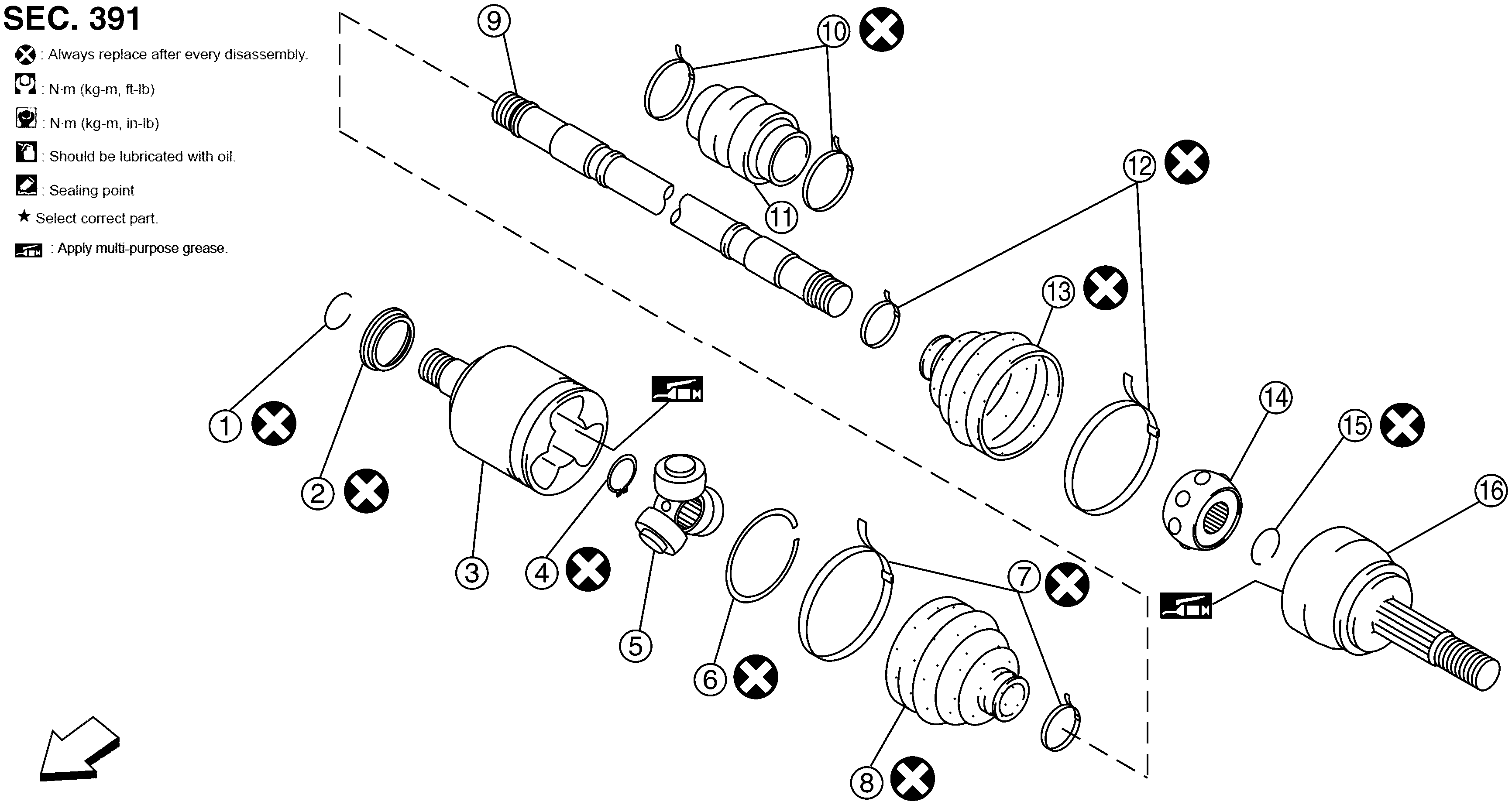

Disassembly and Assembly (LH): Notes
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Circlip
|
2.
|
Dust shield
|
3.
|
Slide joint housing
|
|
4.
|
Snap ring
|
5.
|
Spider assembly
|
6.
|
Stopper ring
|
|
7.
|
Boot band
|
8.
|
Boot
|
9.
|
Shaft
|
|
10.
|
Damper band
|
11.
|
Damper
|
12.
|
Boot band
|
|
13.
|
Boot
|
14.
|
Ball cage / Steel ball / Inner race assembly
|
15.
|
Circlip
|
|
16.
|
Joint sub-assembly
|
|
Front
|
