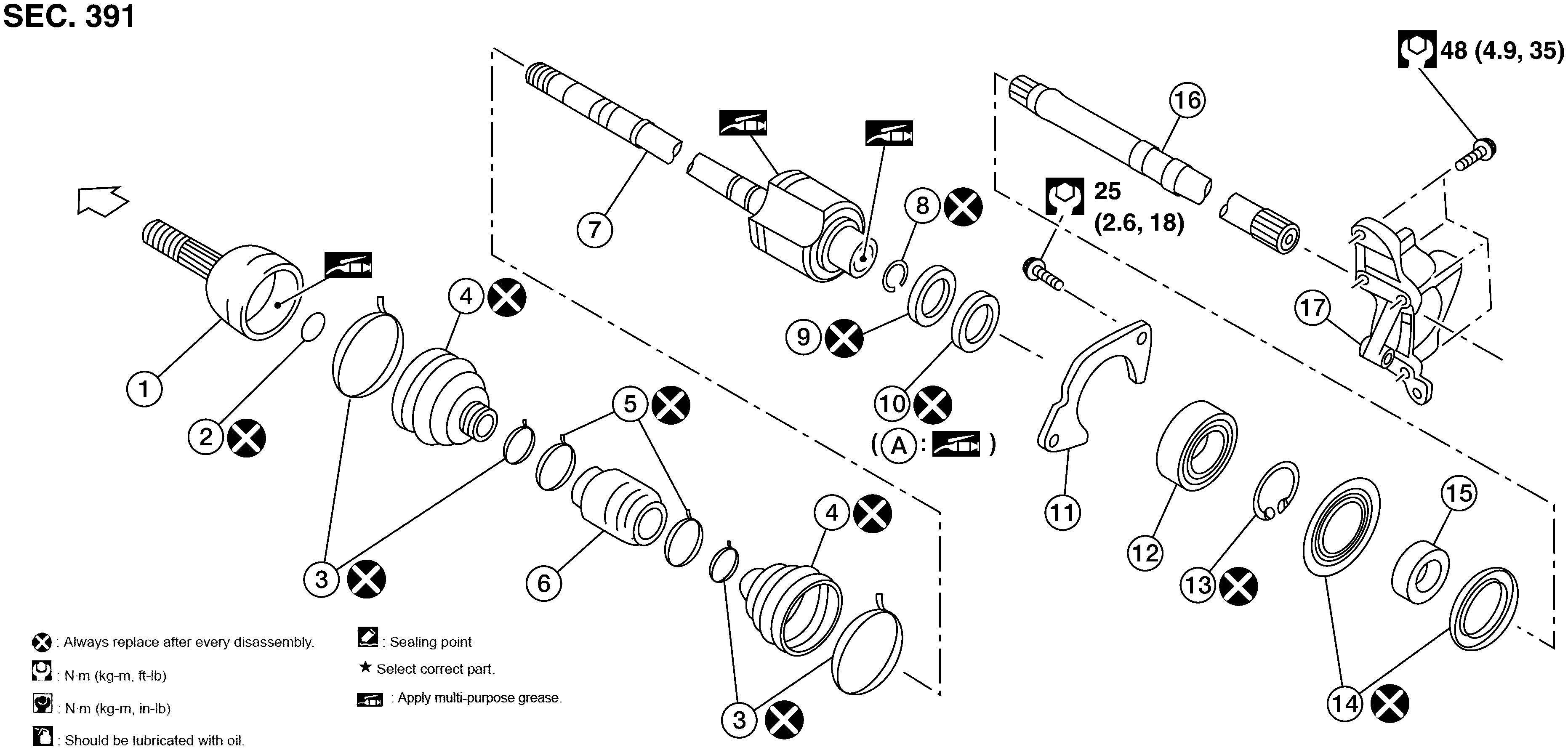

Exploded View: RH
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Joint sub-assembly |
2. |
Circular clip |
3. |
Boot band |
|
4. |
Boot |
5. |
Damper band (if equipped) |
6. |
Dynamic damper (if equipped) |
|
7. |
Housing assembly |
8. |
Circular clip |
9. |
Dust shield |
|
10. |
Oil seal |
11. |
Bearing retainer |
12. |
Bearing |
|
13. |
Snap ring |
14. |
Dust shield |
15. |
Collar |
|
16. |
Link shaft |
17. |
Support bearing bracket |
A: |
Oil seal lip |
|
|
Wheel side |
||||
|
|
Fill NISSAN Genuine grease or equivalent. |
||||
