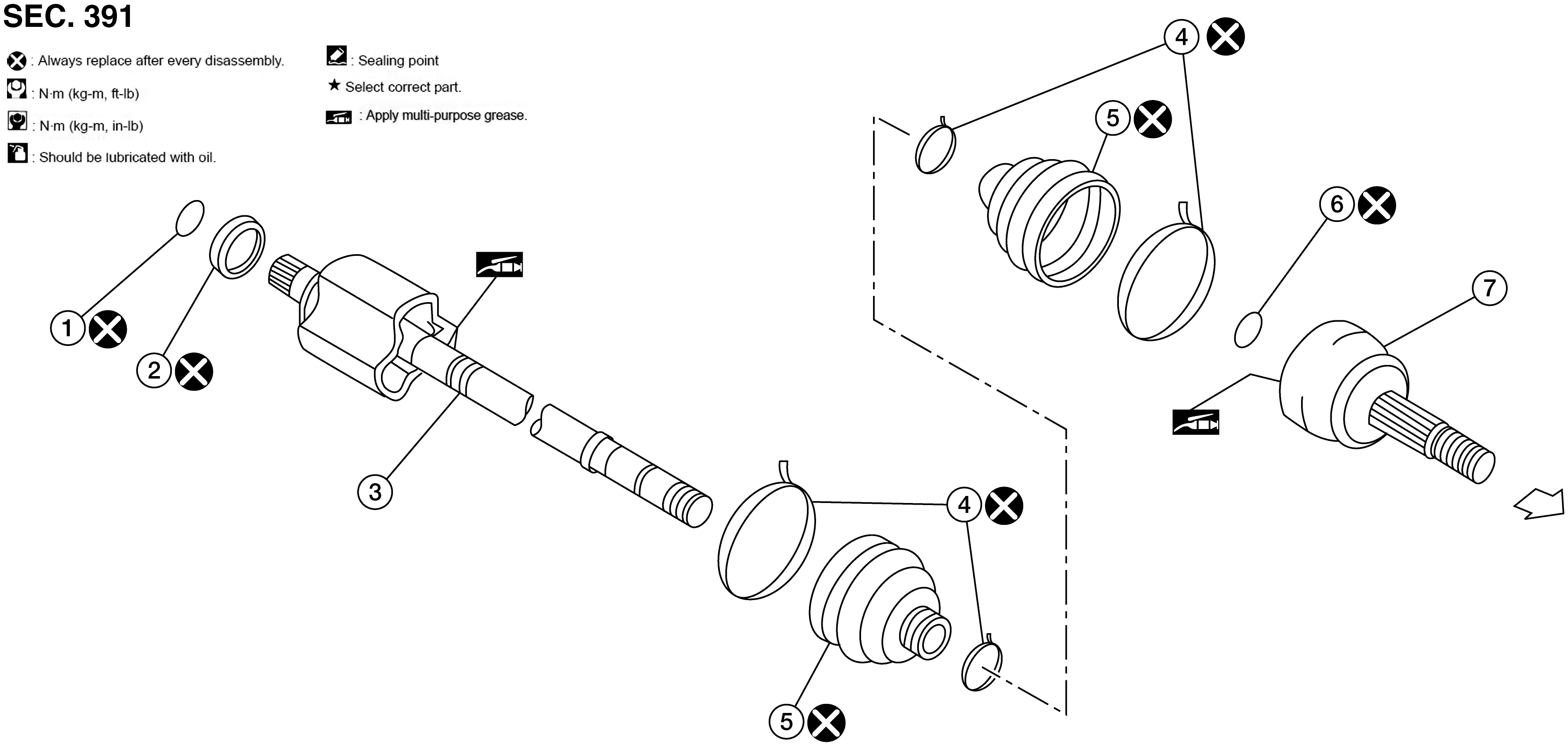

Exploded View: LH
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Circular clip
|
2.
|
Dust shield
|
3.
|
Housing assembly
|
|
4.
|
Boot band
|
5.
|
Boot
|
6.
|
Circular clip
|
|
7.
|
Joint sub-assembly
|
|
Wheel side
|
|
|
Fill NISSAN Genuine grease or equivalent.
|
