Bulb Replacement

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not touch bulb while it is lit or right after being turned OFF. Burning may result.
CAUTION:
  • Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
  • Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may affect performance of lamp.
  • Release and insert pawl as indicated or damage may occur.

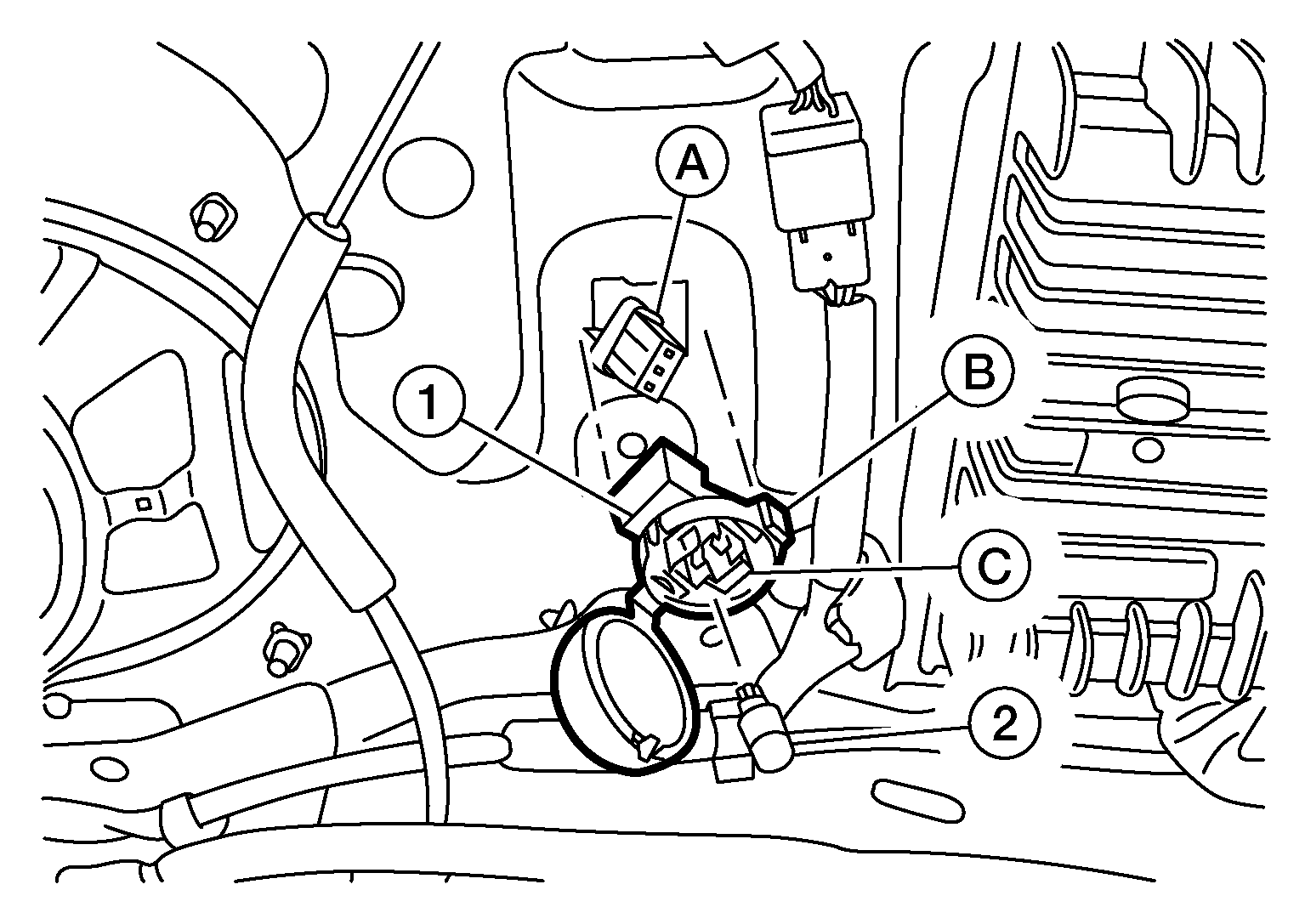

  1. Release the pawl (B) to open the lens.
    GNSALIIA1094Z-094Courtesy of NISSAN NORTH AMERICA, INC.

    A.

    Harness connector

    C.

    Pawl
  2. Remove trunk room lamp bulb (2).
  3. Install bulb to trunk room lamp (1).
  4. Close lens.
