Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

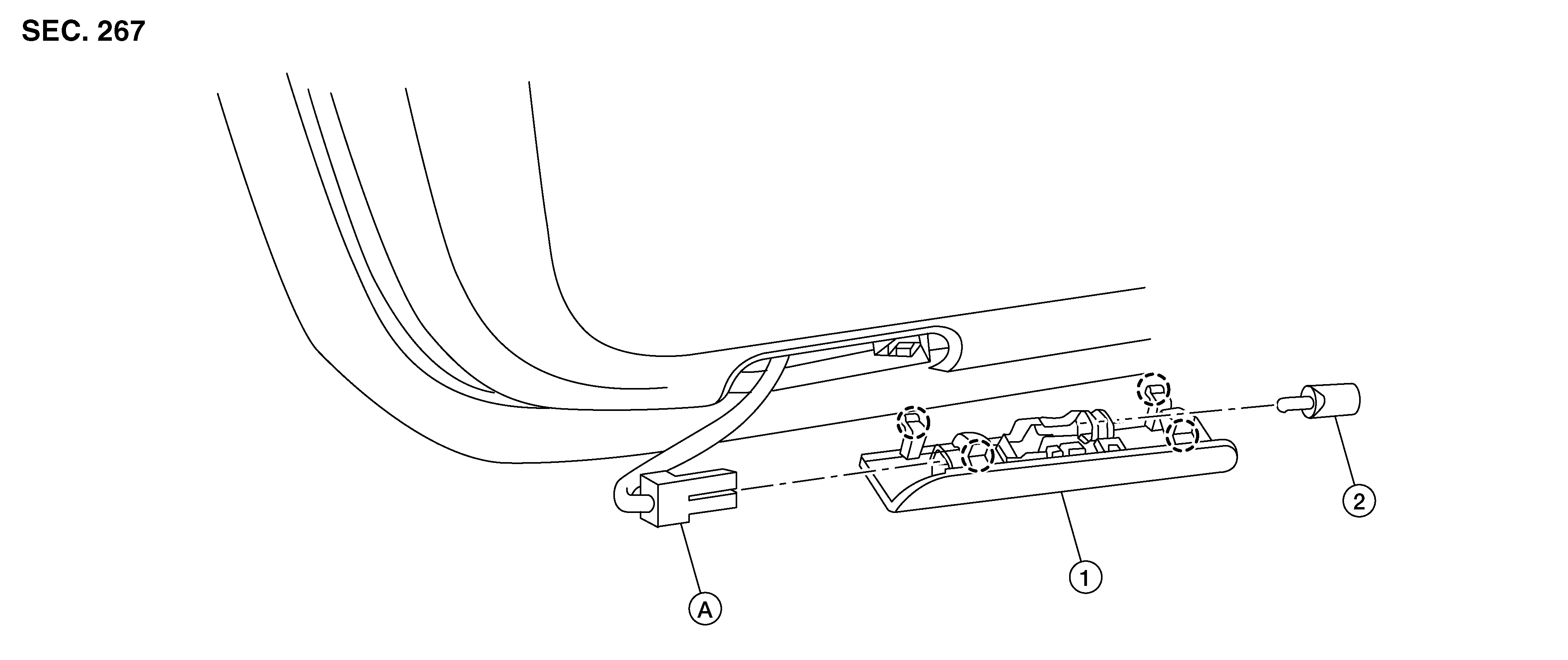

GNSALIIA1099Z-099Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front step lamp

2.

Bulb

A.

Front step lamp harness connector

SYMBOL

Pawl
