Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not attempt to remove rear side of front room/map lamp assembly first or damage may occur.
  1. Remove front room/map lamp assembly using the following procedure.

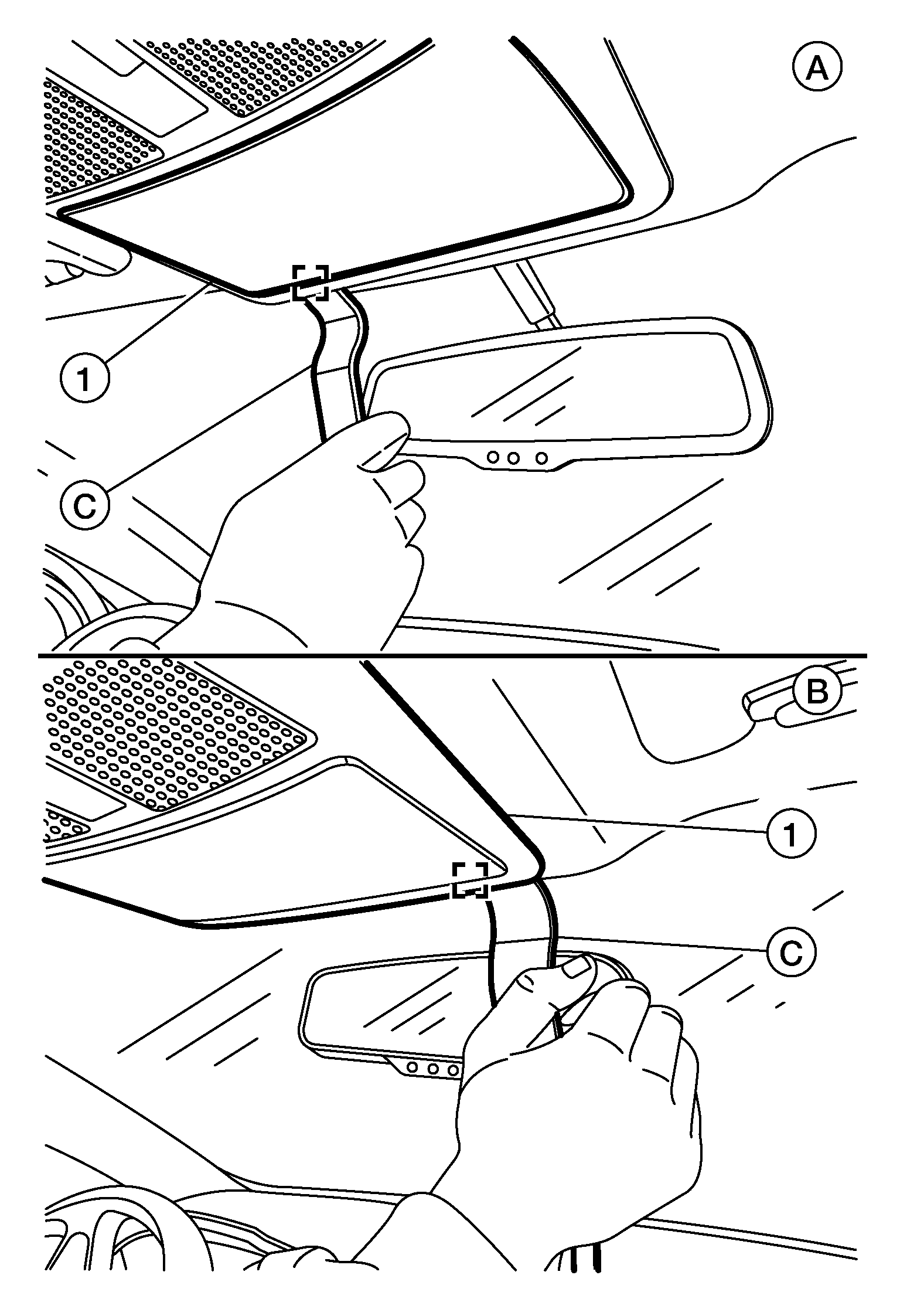

    1. Using suitable tool (C) release metal clips at front edge of the front room/map lamp assembly (1).
      GNSALIIA1309Z-309Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not attempt to remove rear edge of front room/map lamp assembly first or damage may occur.

      (A)

      : Left side

      (B)

      : Right side

      SYMBOL

      : Metal clip

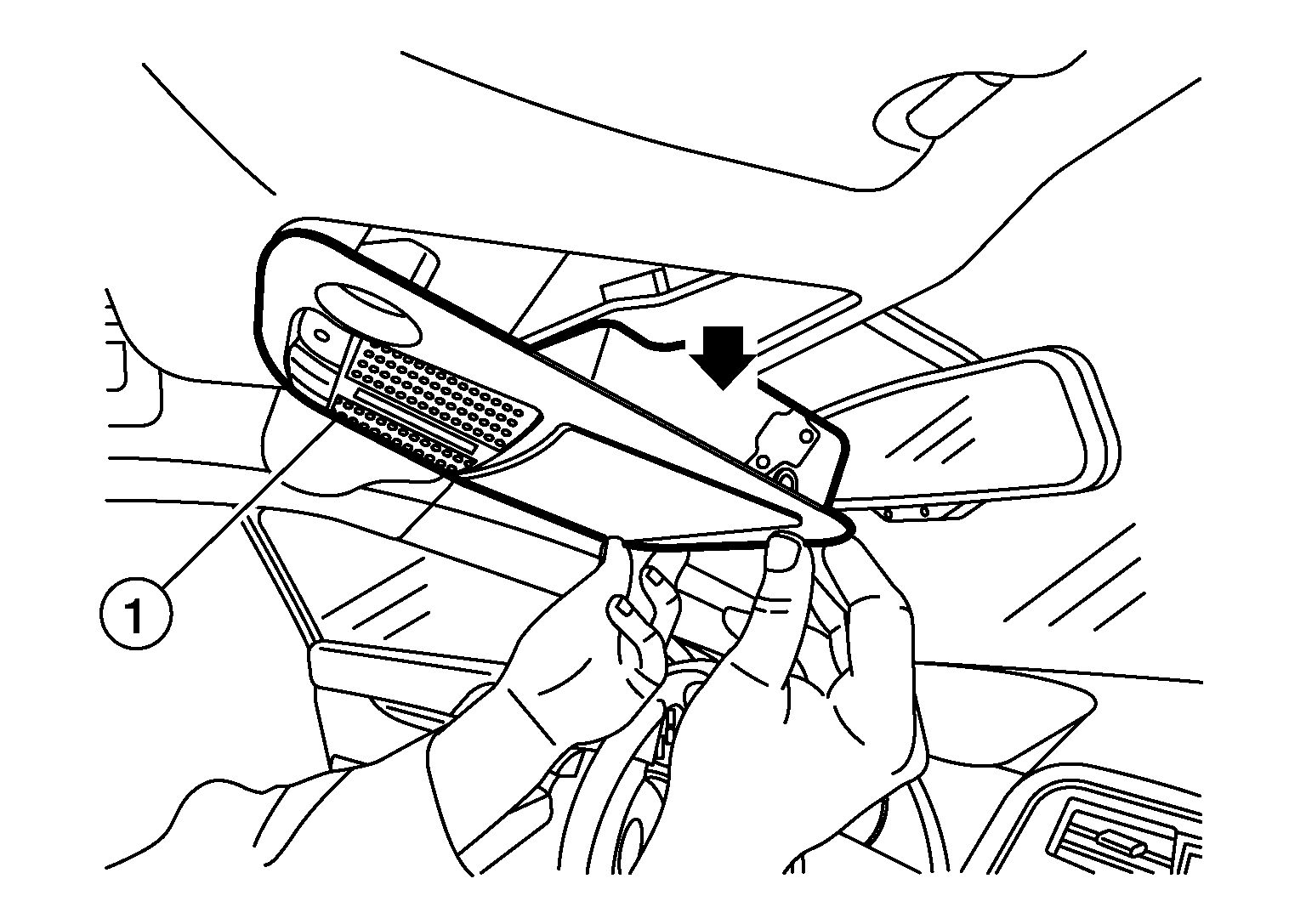

    2. Lower front edge of front room/map lamp assembly (1) in direction shown (SYMBOL ).
      GNSALIIA1310Z-310Courtesy of NISSAN NORTH AMERICA, INC.

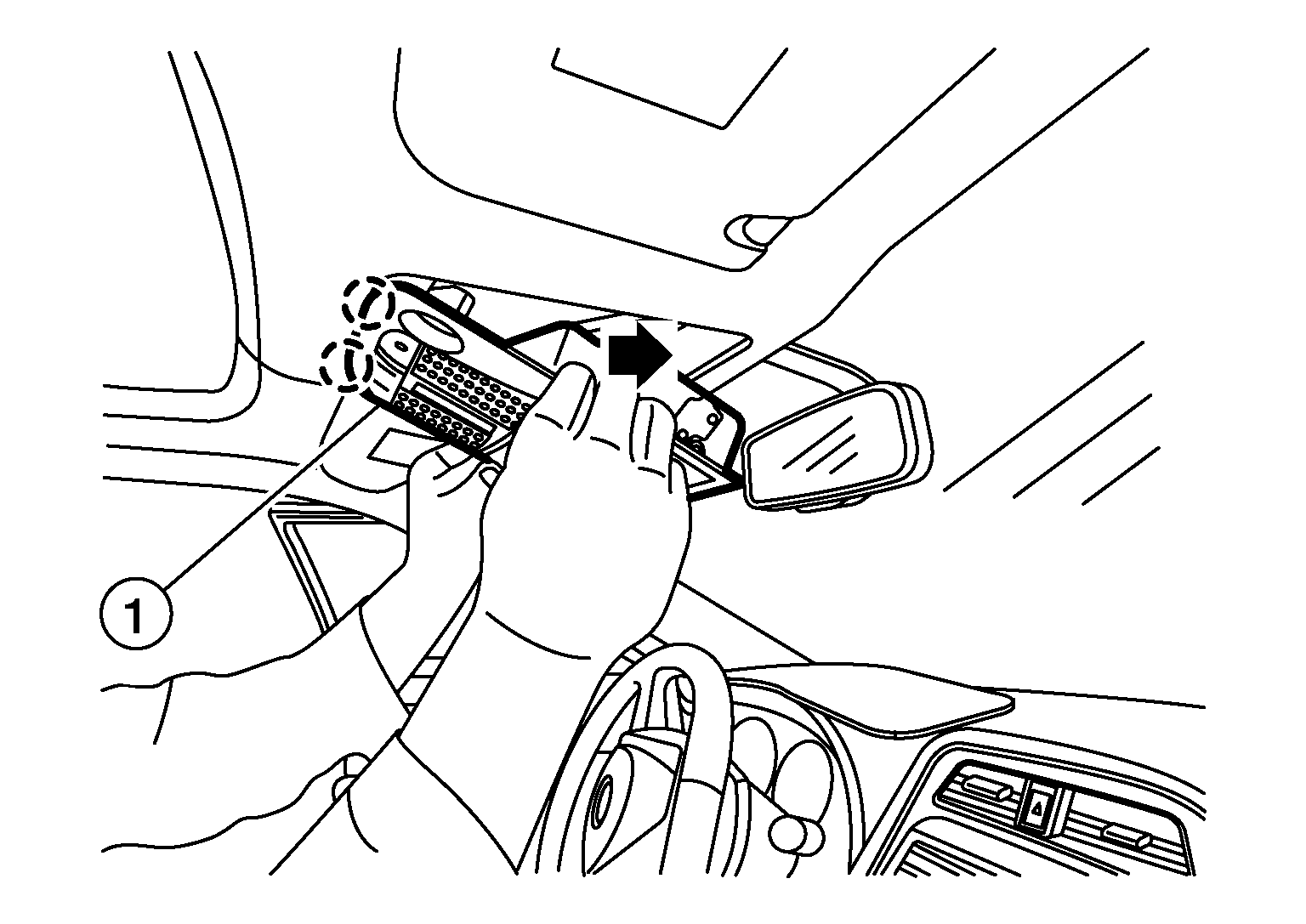

    3. Slide front room/map lamp assembly (1) forward in direction shown (SYMBOL ) to release rear pawls.
      GNSALIIA1311Z-311Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
    4. Disconnect the harness connectors from the front room/map lamp assembly and remove front room/map lamp assembly.
