Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not attempt to install front side of front room/map lamp assembly first or damage may occur.

Install front room map/map lamp assembly using following procedure.

Connect the harness connectors to the front room/map lamp assembly.

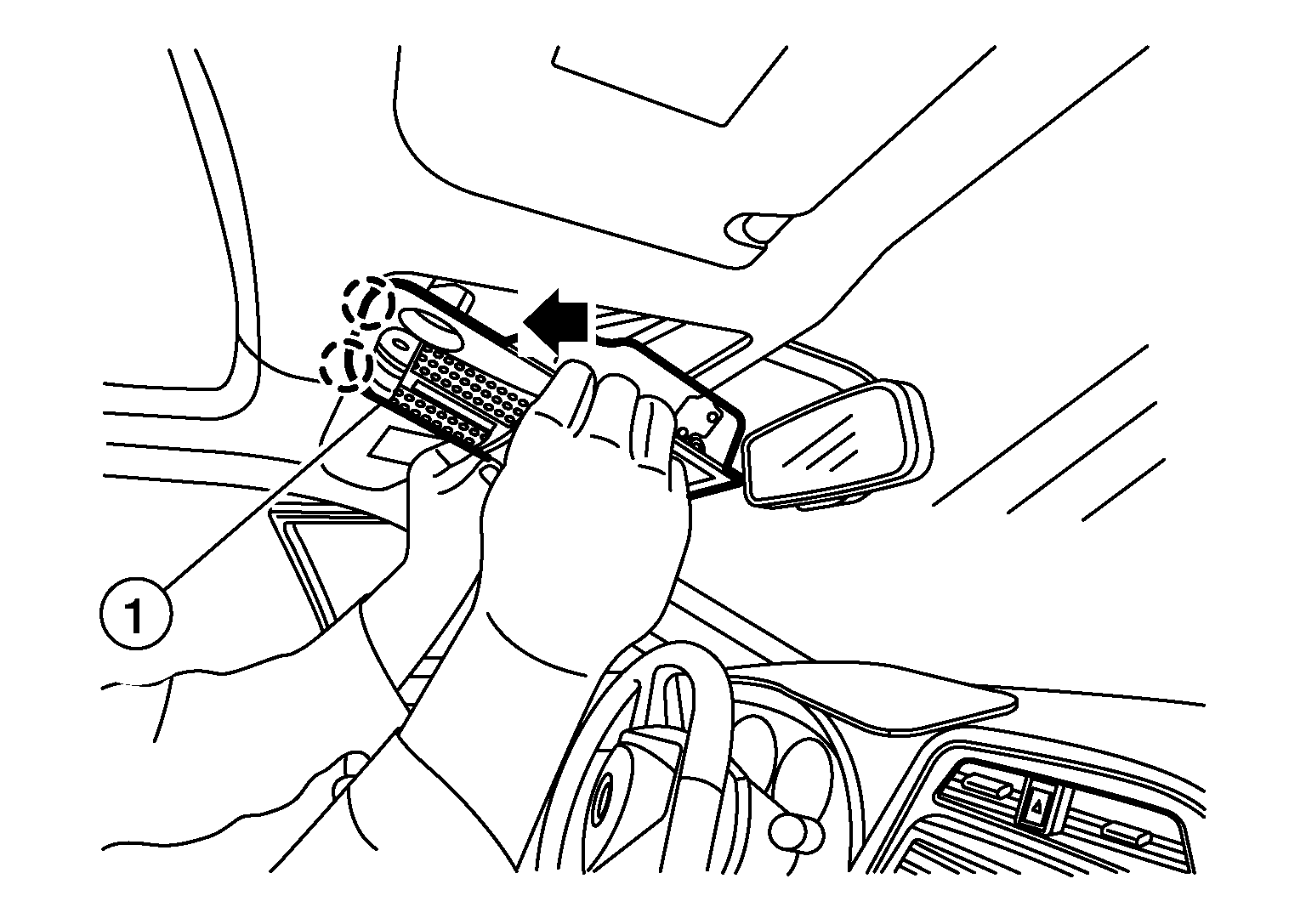

Insert rear pawls into headlining first then slide front room/map lamp assembly (1) in direction shown (

) to install rear side.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not attempt to install front side of the front room/map lamp assembly first or damage may occur.

: Pawl

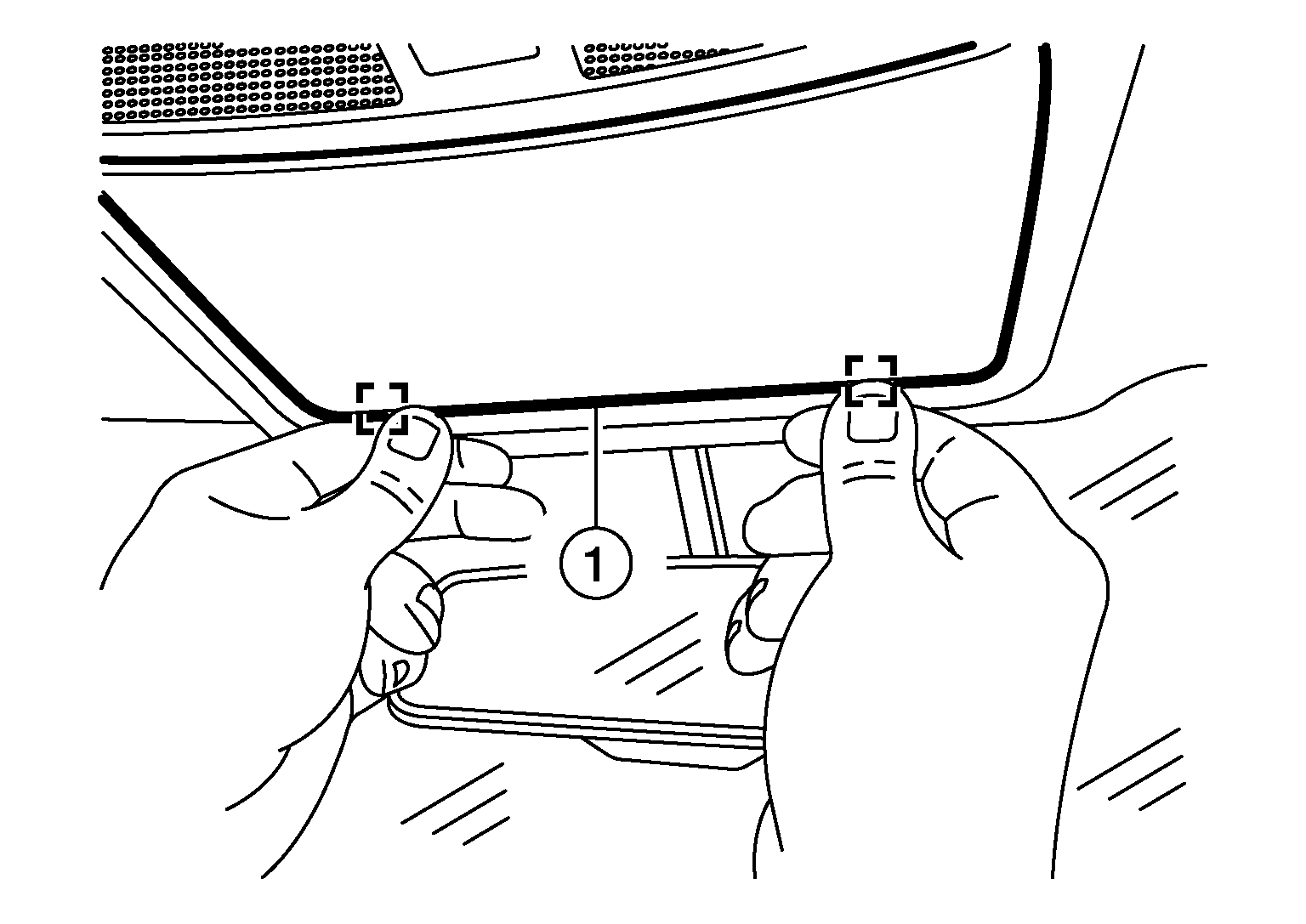

Install front edge of front room/map lamp assembly (1) as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip
