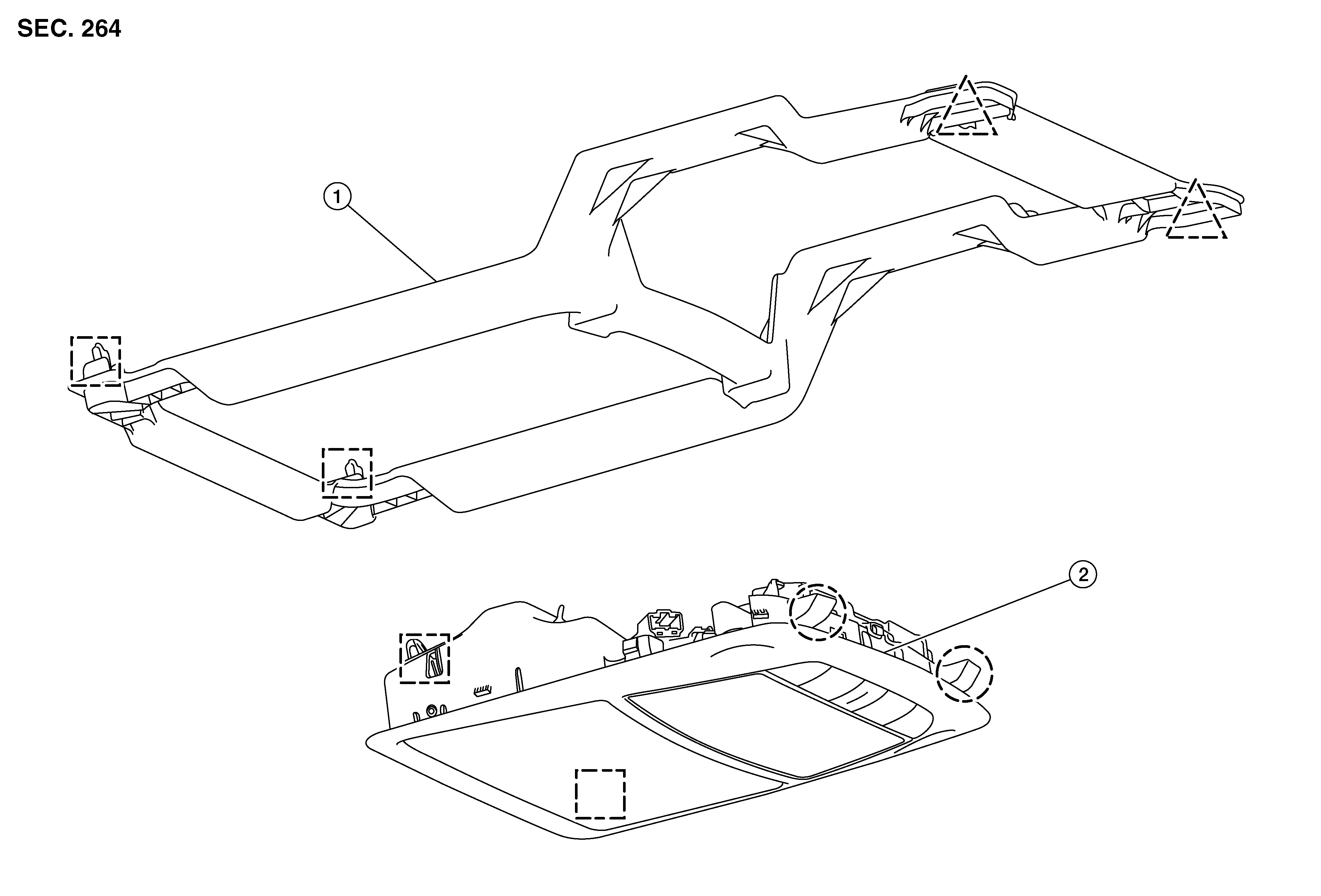

Exploded View - Without Moonroof

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWJIA1871Z-871Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front room/map lamp assembly bracket

2.

Front room/map lamp assembly

SYMBOL

Pawl

SYMBOL

Clip

SYMBOL

Metal clip
