Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

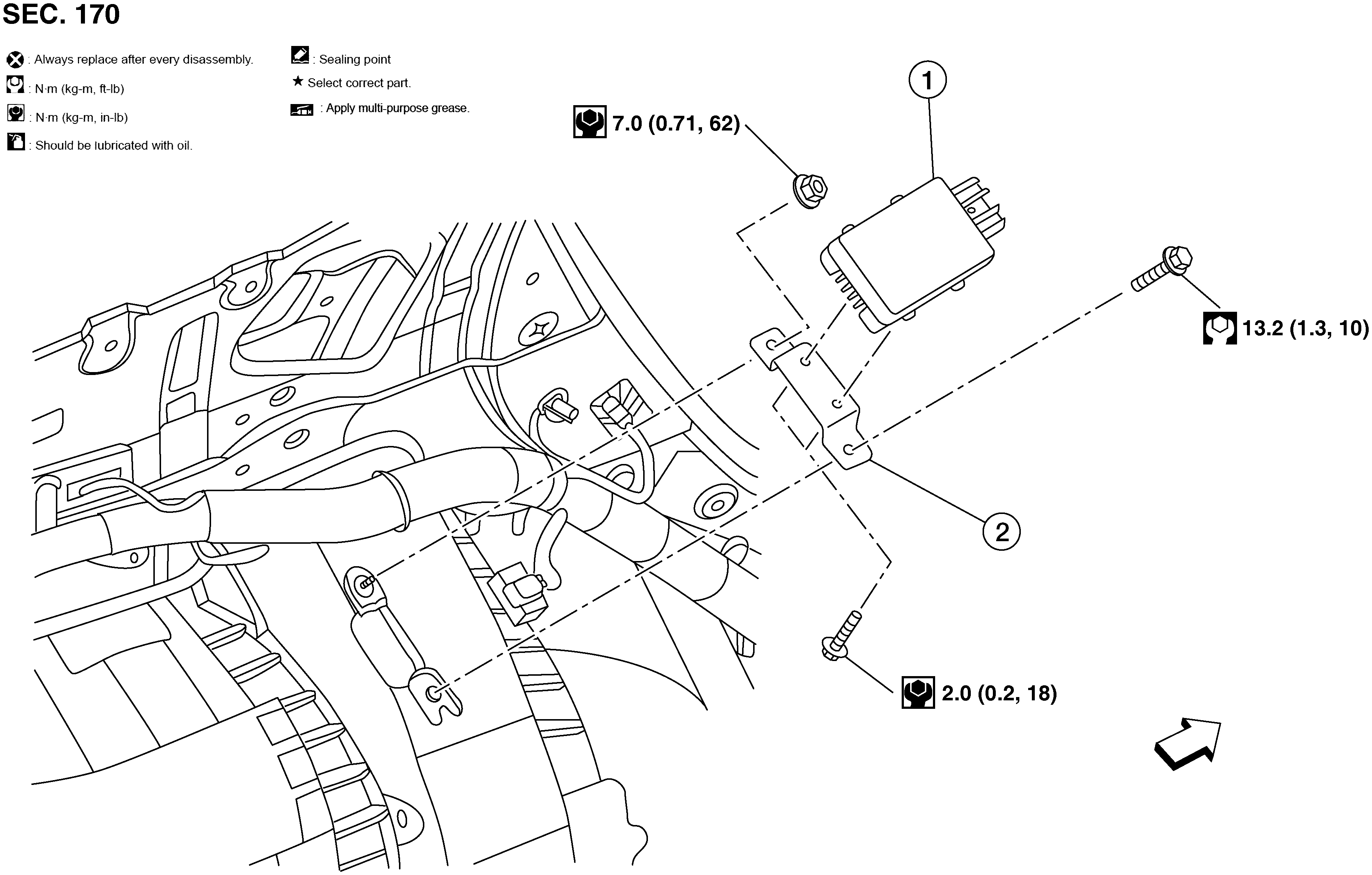

GNSAWBIA0081Z-081Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module

2.

Fuel pump control module bracket

SYMBOL

Front
