Pinion Protrusion Length
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

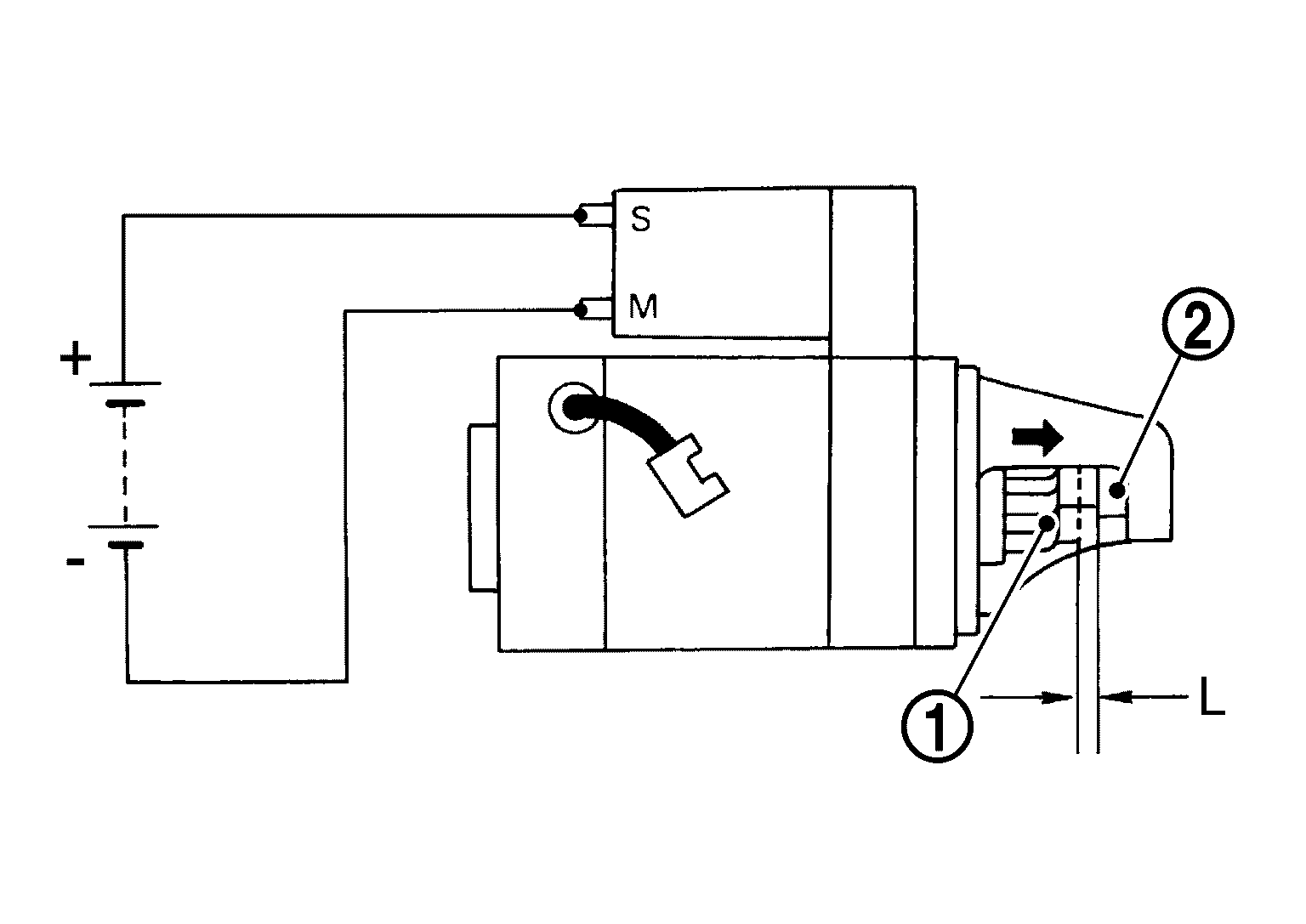

- With pinion gear (1) driven out by magnetic switch, push pinion gear back to remove slack and measure the clearance "L" between the front edge of the pinion gear and the pinion stopper (2).
Clearance "L"
: Refer to SDS Starter .
- Replace starter motor if the measurement value is not within specifications.
