No-Load Test
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove starter motor from vehicle. Refer to Removal and Installation .

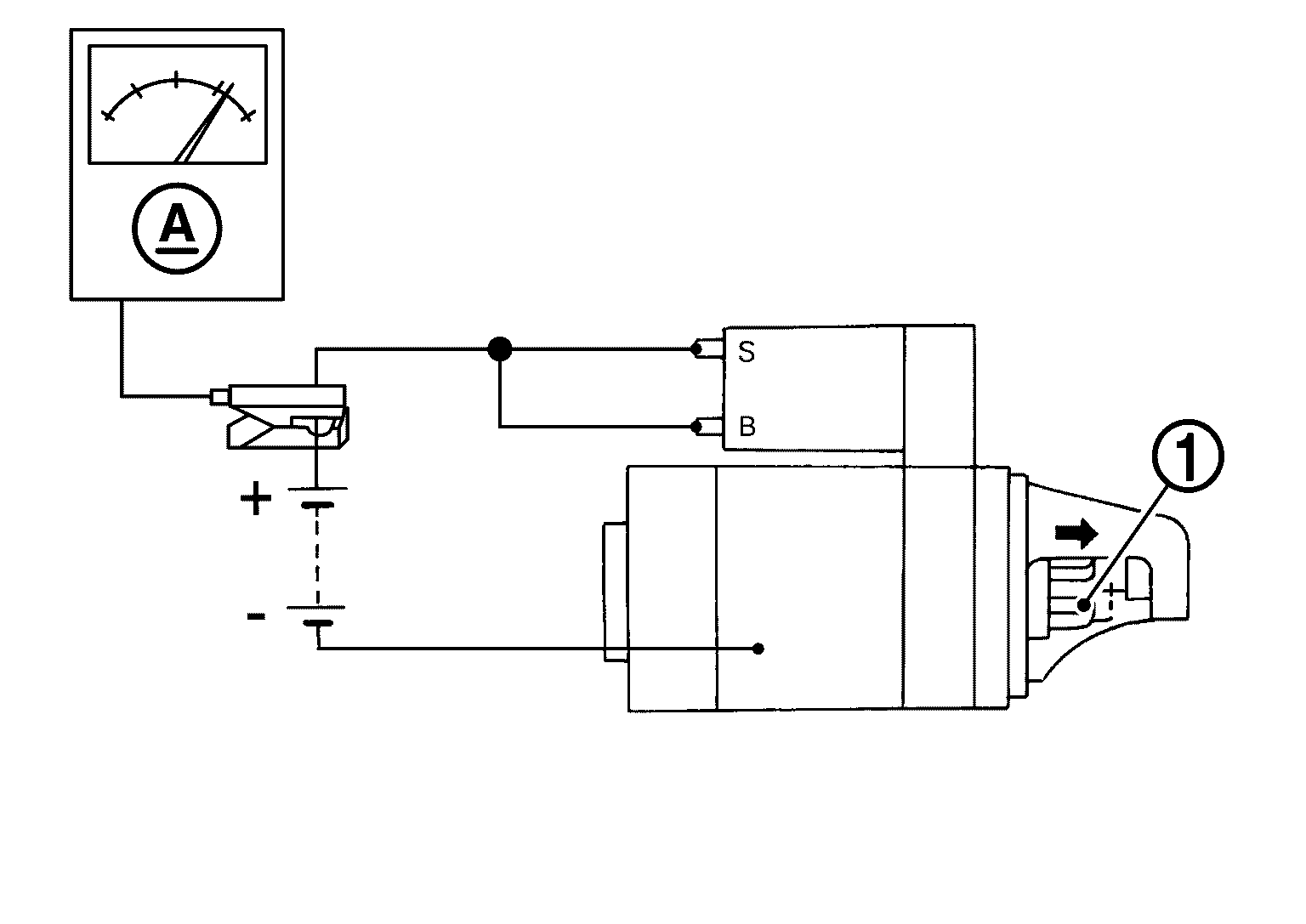

- Connect 12 V battery and ammeter to starter motor as shown, below. Check no load current with pinion gear (1) driven out and starter motor operating.
No-load current
: Refer to SDS Starter .
- Replace starter motor if the measurement value is not within specifications.
