Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

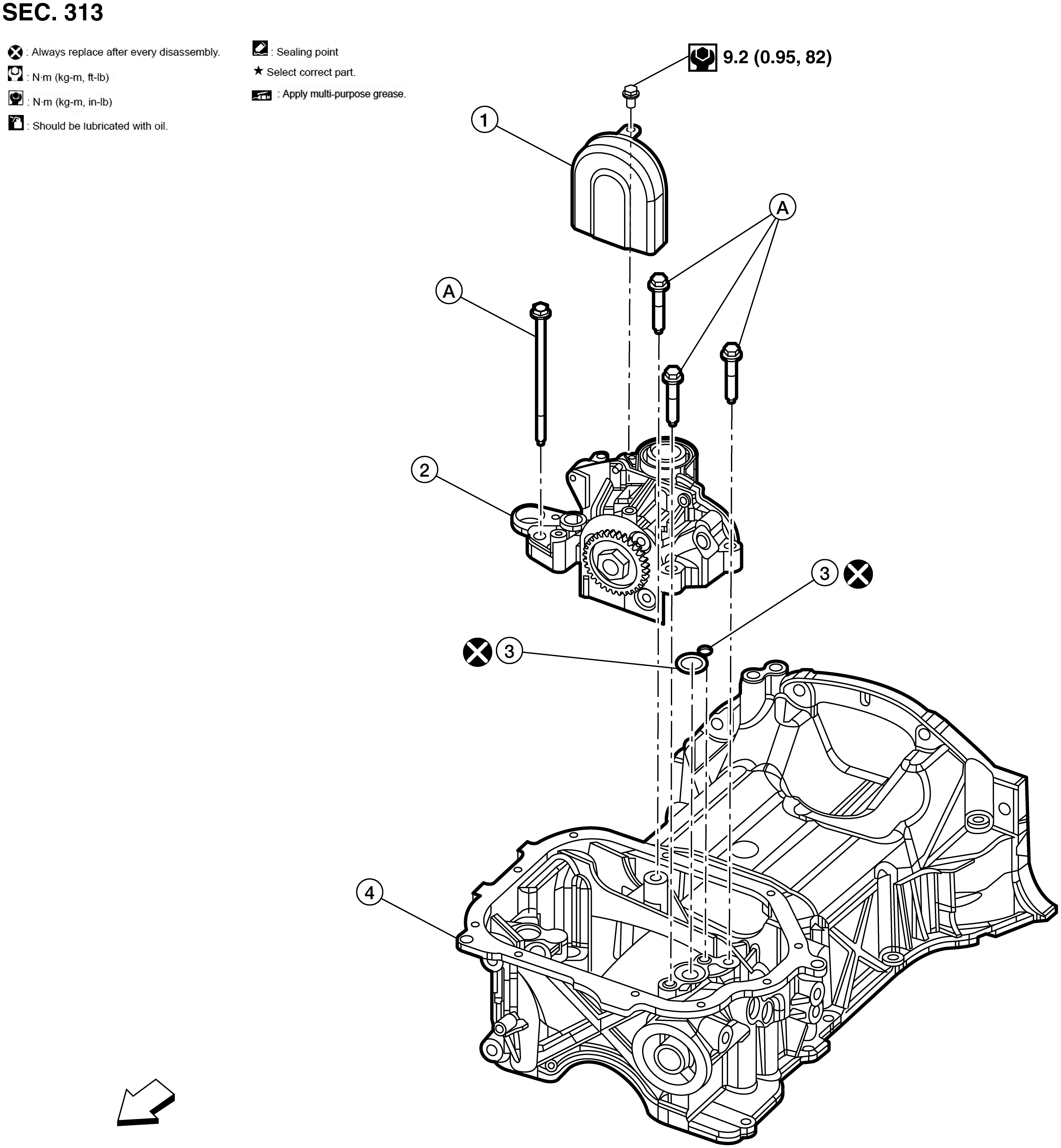

Fig 1: Oil Pump Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump cover	2.	Oil pump assembly	3.	O rings
4.	Oil pan	A.	Bolts		Front
