Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

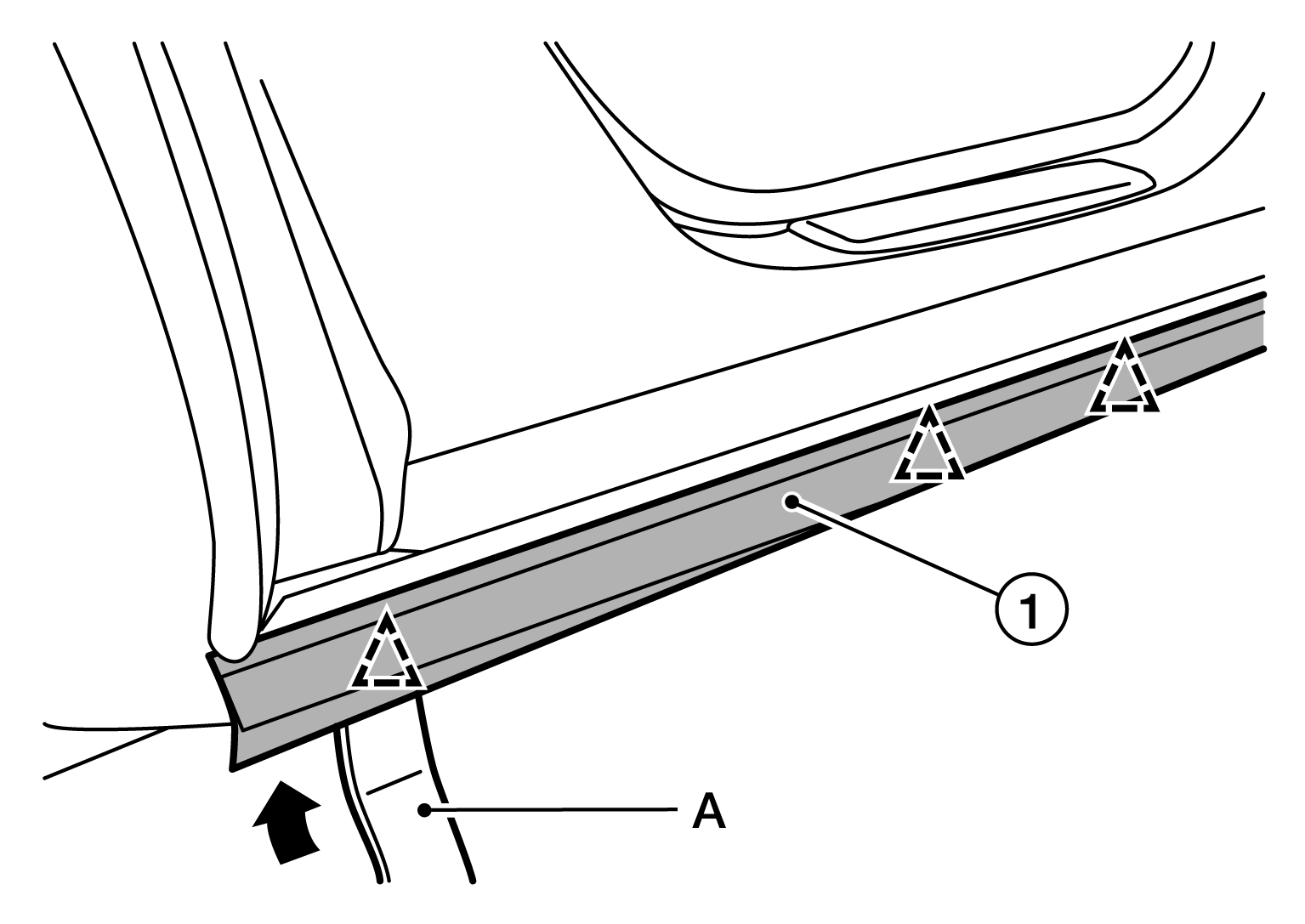

  1. Release sill molding clips with a suitable tool (A).
    GNSDB123448Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Disengage the clips slowly and carefully.

    SYMBOL : Clip

  2. Remove the sill molding (1).
