Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|

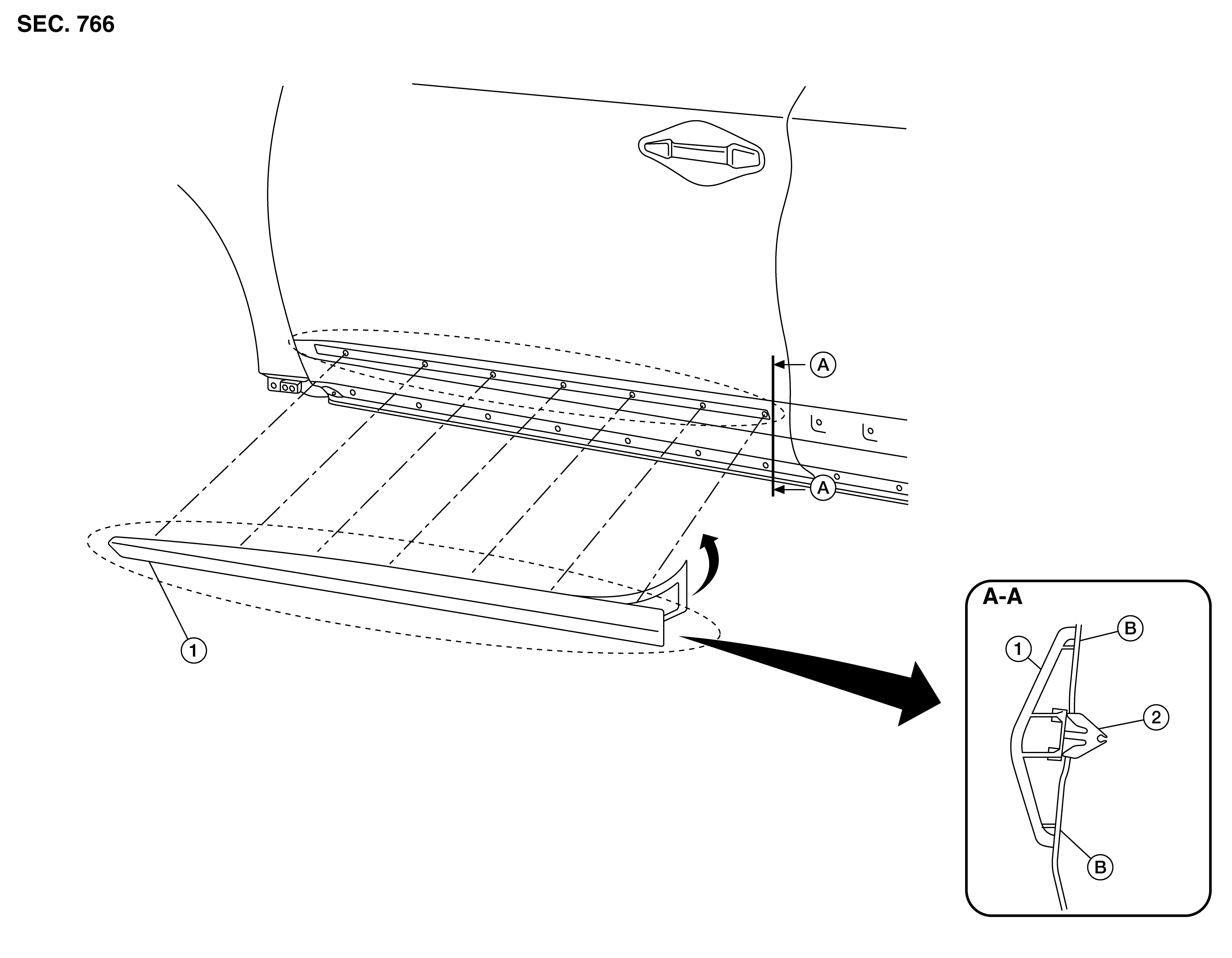

1.
|
Front door side guard molding
|
2.
|
Clip
|
B.
|
Double-faced adhesive tape
|
Courtesy of NISSAN NORTH AMERICA, INC.
|

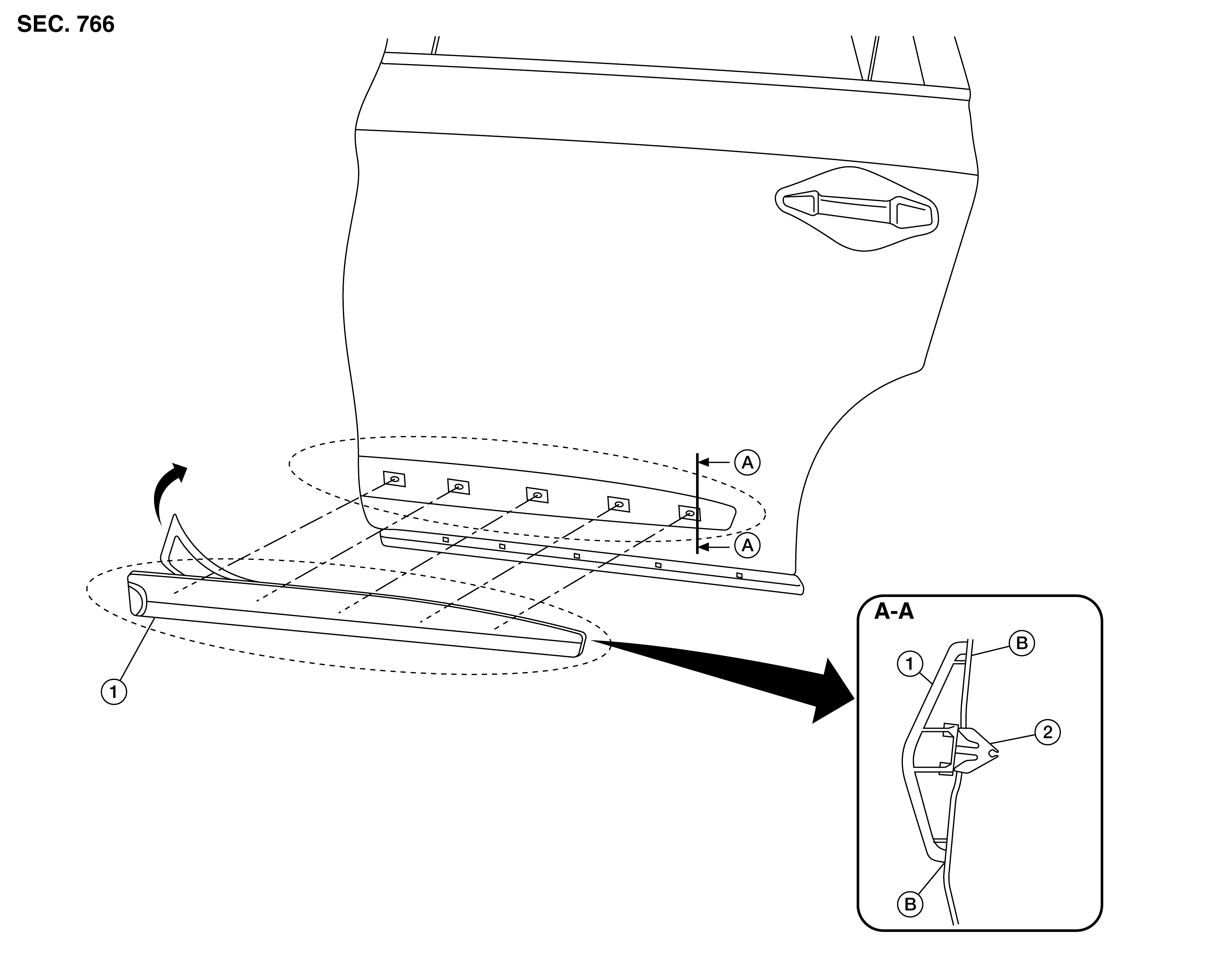

1.
|
Rear door side guard molding
|
2.
|
Clip
|
B.
|
Double-faced adhesive tape
|
