Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

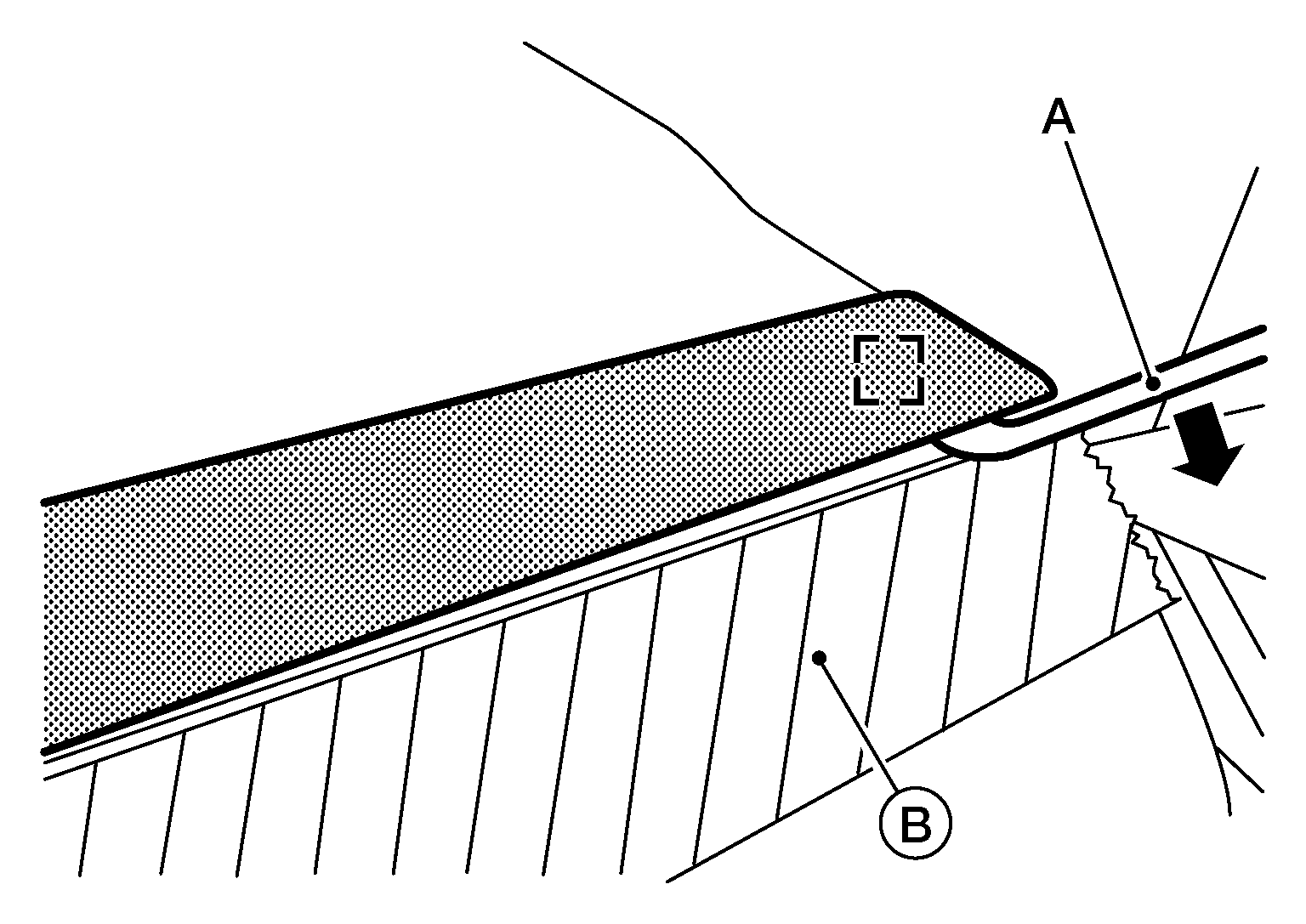

  1. Release the roof side molding clips, using a suitable tool (A).
    GNSAWKIA3992Z-992Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Apply protective tape (B) around the roof side molding.

    SYMBOL : Metal clip

  2. Remove the roof side molding.
