Removal and Installation: Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

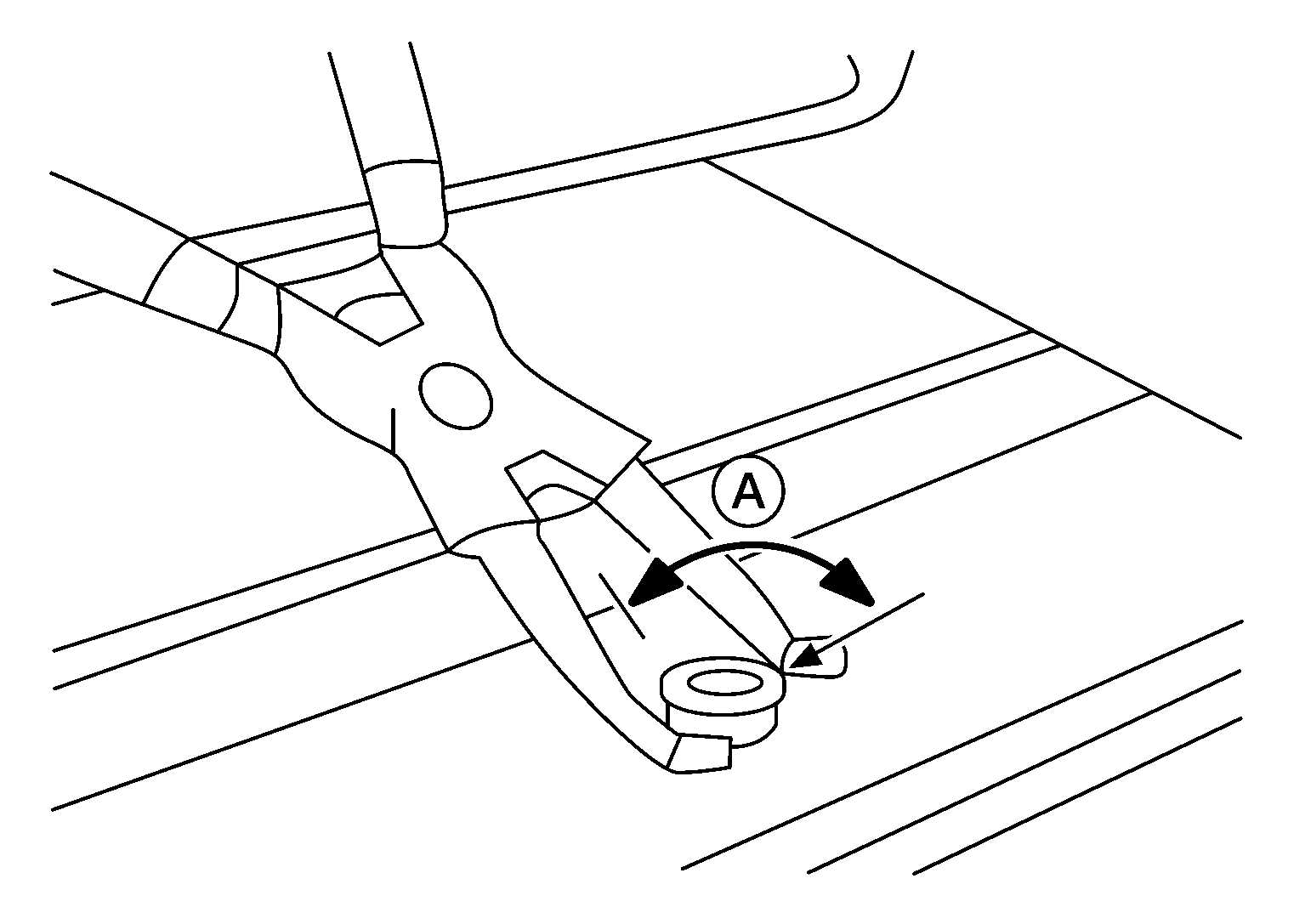

Rotate all roof post 90 degrees (A) using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.
Insert a new metal clip in any locations on the roof rack side rail where missing.
CAUTION: When installing, make sure all clips are on roof rack side rail.

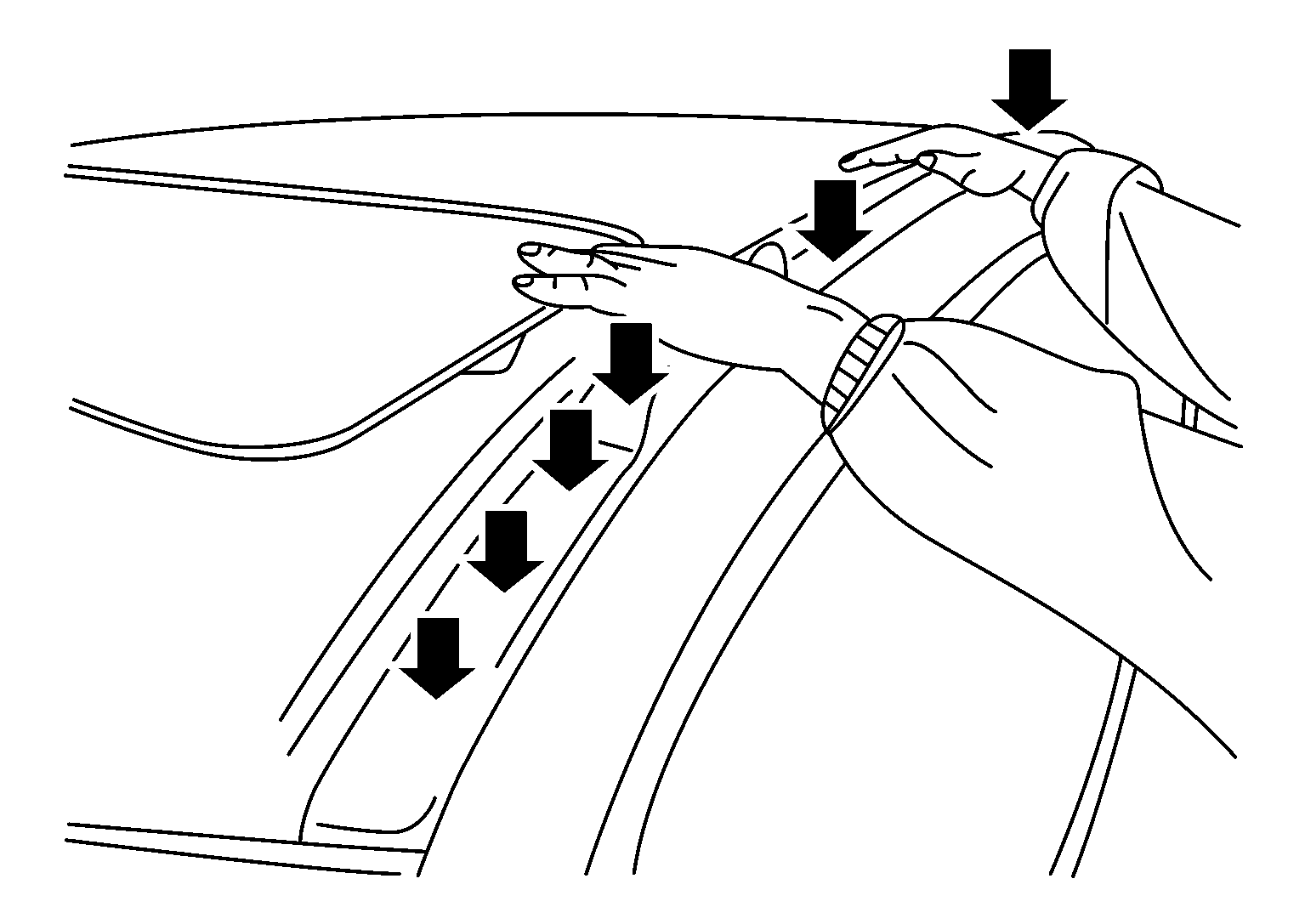

Install the roof rack side rail to the roof panel.

CAUTION:

Make sure all clips and pawls are firmly pressed into place.

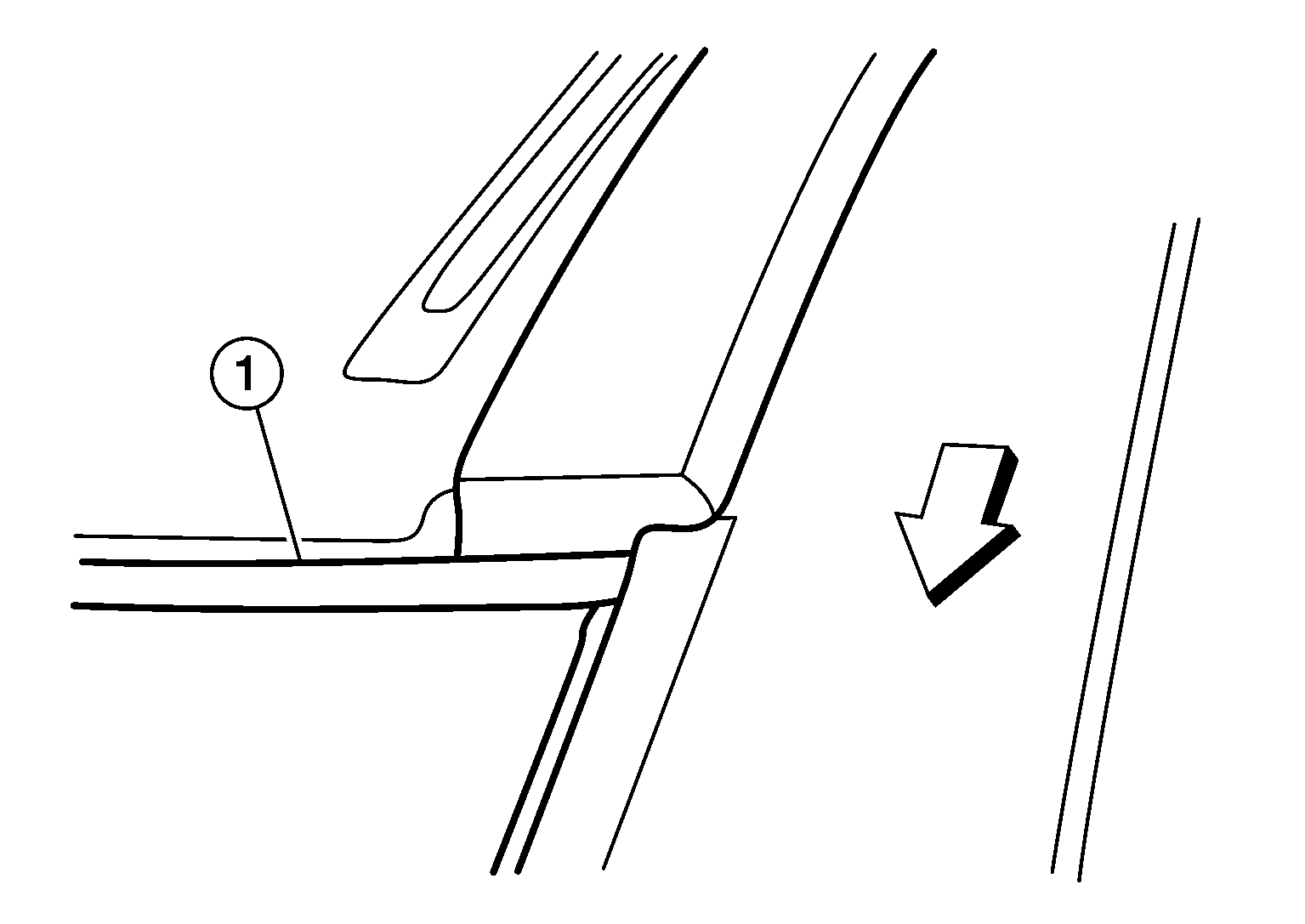

Make sure front edge of roof rack side rail is aligned behind the windshield seal (1) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

NOTE: Tap firmly on the roof rack side rail to lock each of the remaining seven clips into place on the remaining seven posts.

Courtesy of NISSAN NORTH AMERICA, INC.
