Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

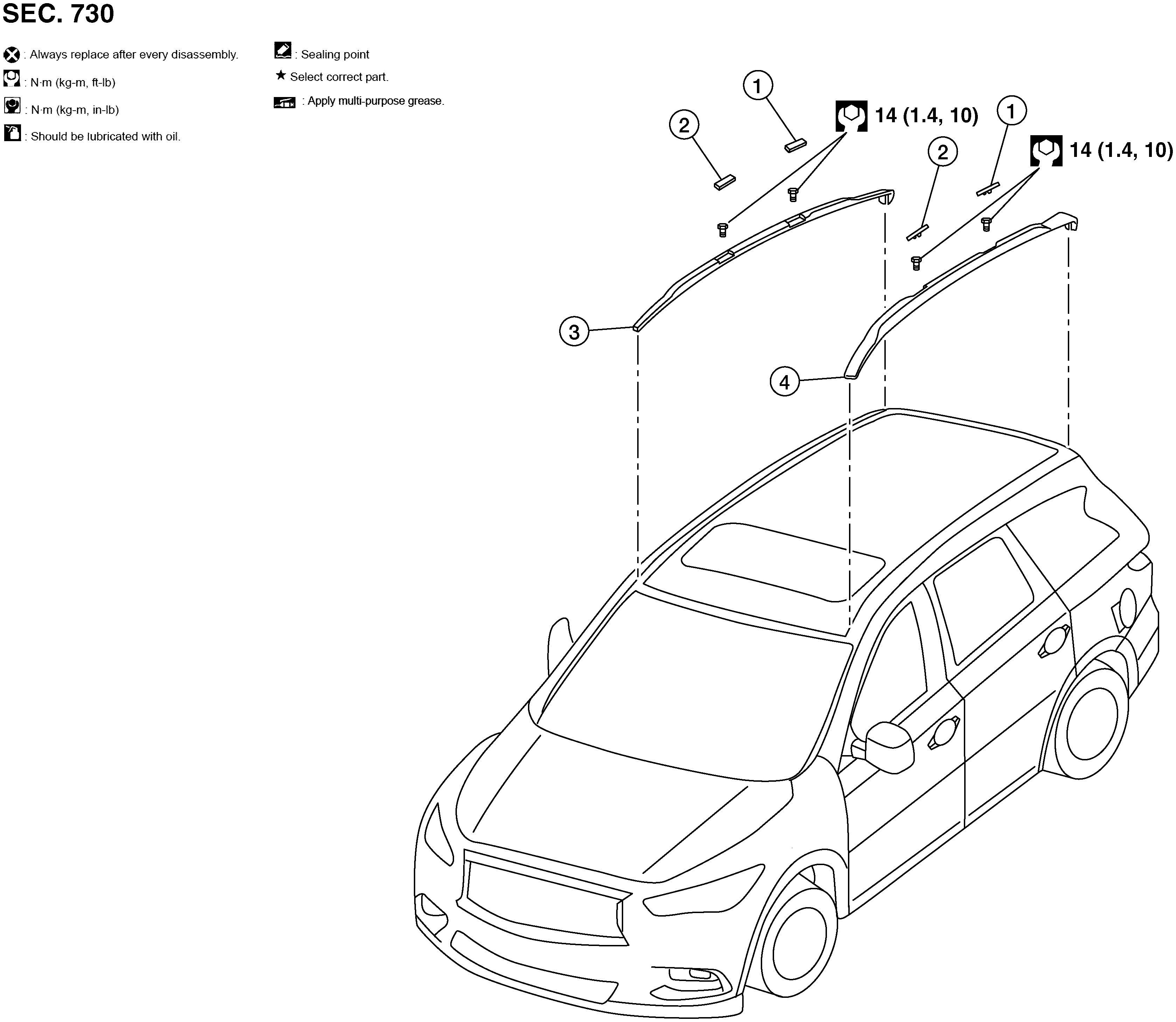

Fig 1: Roof Rack Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear bolt cover (LH/RH)	2.	Front bolt cover (LH/RH)	3.	Roof rack (RH)
4.	Roof rack (LH)
