Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.

Open back door.
Remove the rear combination lamps (LH/RH). Refer to Removal and Installation .

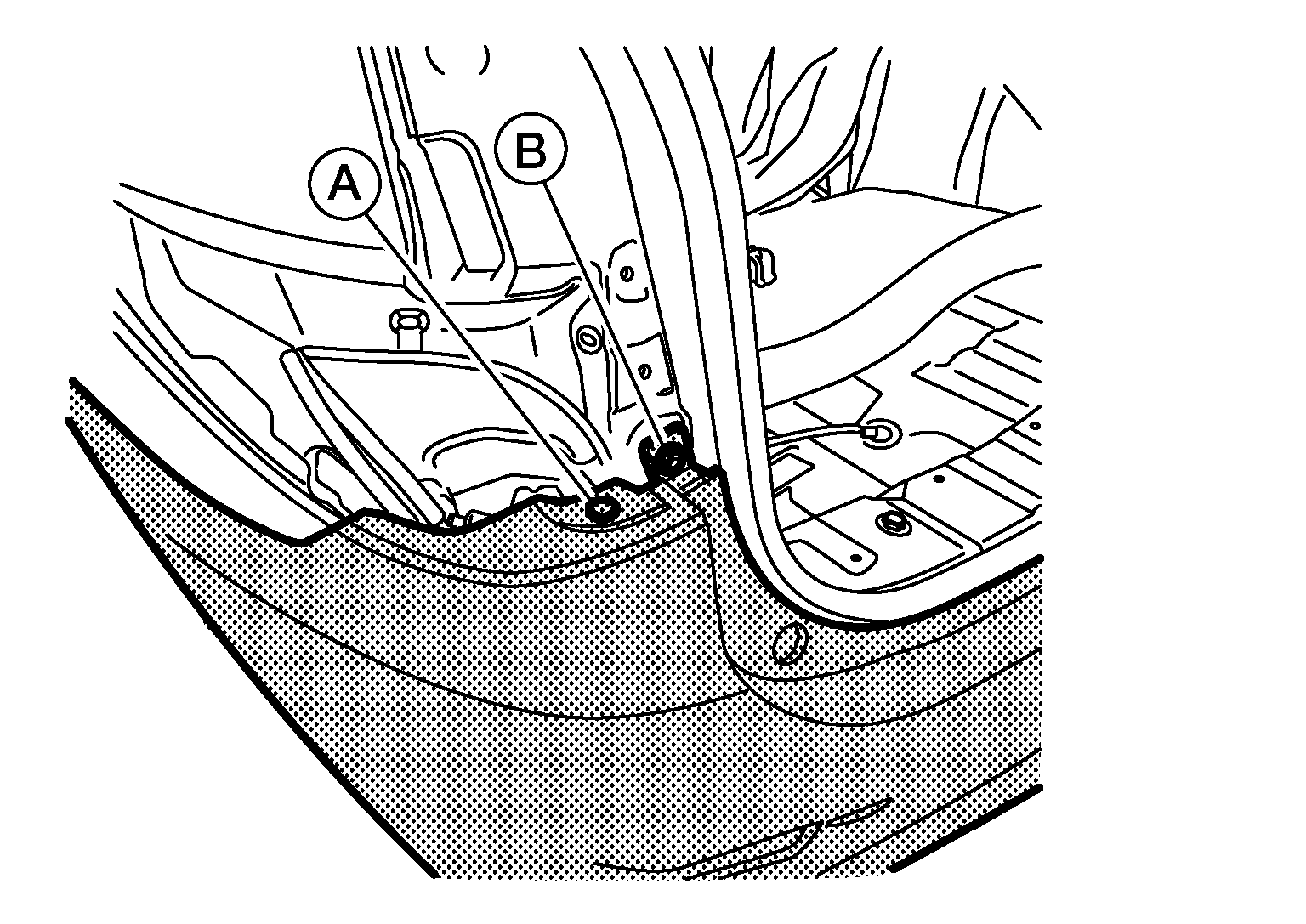

Remove the rear bumper fascia clips (A) and screws (B) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.
Partially remove the rear wheel house protectors. Refer to Removal and Installation .
Remove the bumper fascia side upper screws (A) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear bumper fascia lower side bolts (A) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the rear bumper fascia lower rear clips (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from rear sonar sensors.

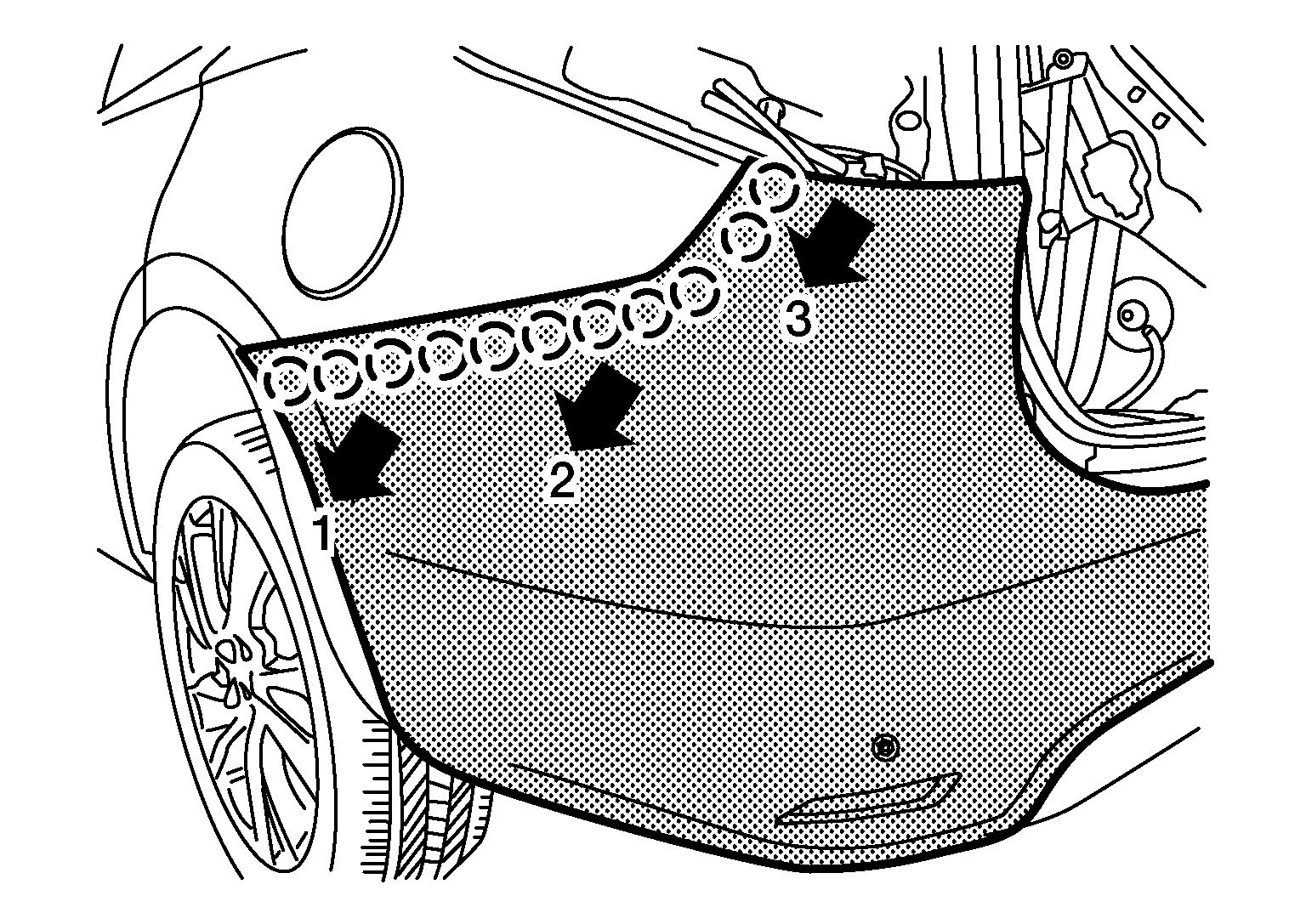

Pull rear bumper fascia downward as shown below, by the arrows, to release from rear bumper side brackets (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Remove the rear bumper fascia.
CAUTION: When removing rear bumper fascia, two people are required to avoid damaging.
Remove the following parts (if necessary) after removing rear bumper fascia.
- Rear bumper side brackets (LH/RH)
- Rear bumper fascia reflectors (LH/RH)
- Rear sonar sensors
- Remove rear bumper energy absorbers 1 and 2.
