Removal and Installation: Installation
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
NOTE:
Unit: mm (in)
|
Section |
Measurement |
Minimum |
Target Value |
Maximum |
|

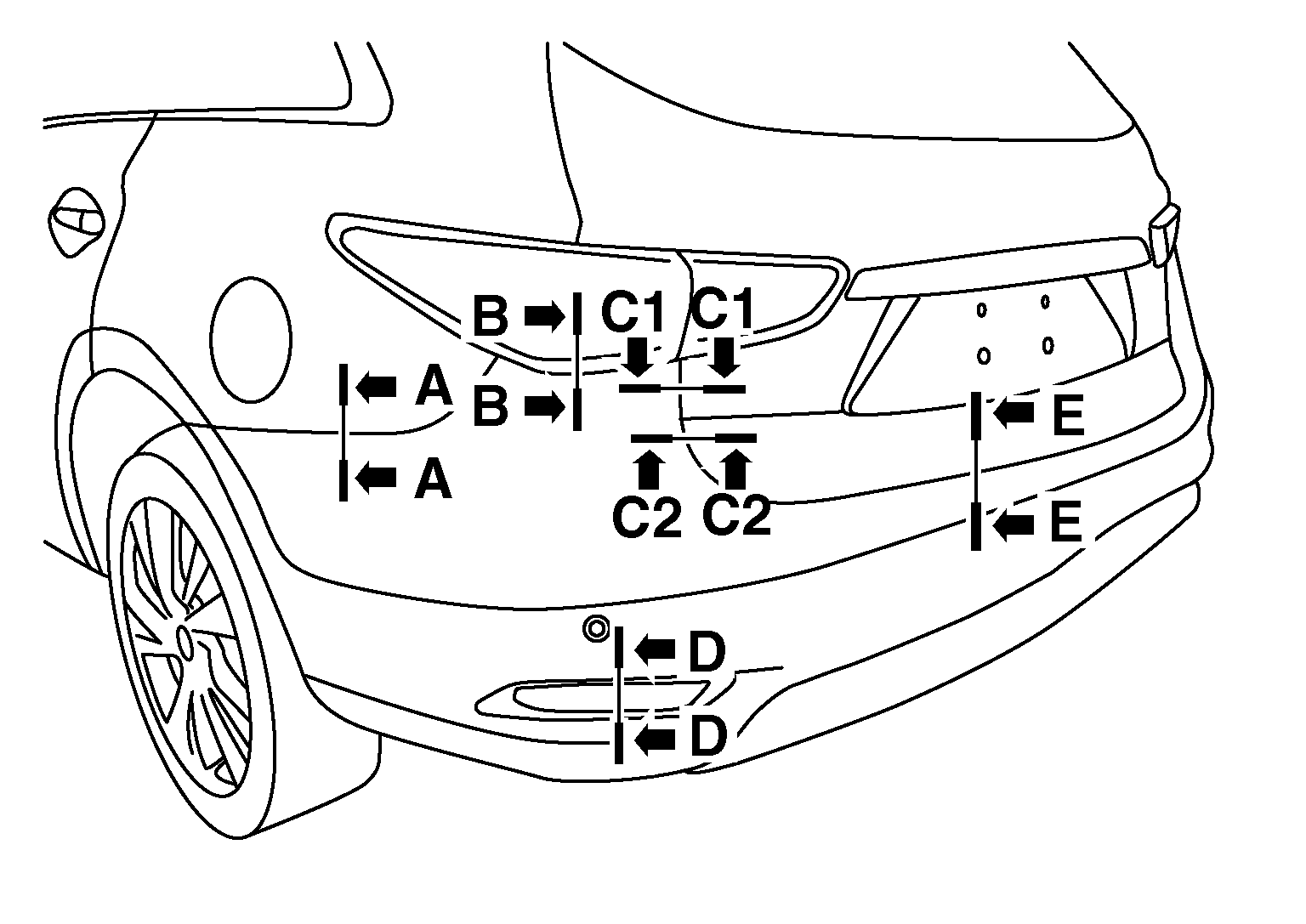

A-A |
Clearance |
0.0 (0.00) |
0.3 (0.01) |
1.3 (0.05) |
|
A-A |
Surface height |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
B-B |
Clearance |
0.0 (0.00) |
1.5 (0.06) |
3.0 (0.12) |
|
C1-C1 |
Clearance |
5.0 (0.12) |
7.0 (0.28) |
9.0 (0.35) |
|
C1-C1 |
Surface height |
-2.0 (-0.08) |
0.0 (0.00) |
2.0 (0.08) |
|
C2-C2 |
Clearance |
4.5 (0.18) |
7.0 (0.28) |
9.5 (0.37) |
|
D-D |
Clearance |
1.0 (0.04) |
2.0 (0.08) |
3.0 (0.12) |
|
E-E |
Clearance |
5.6 (0.22) |
8.0 (0.31) |
10.4 (0.41) |
