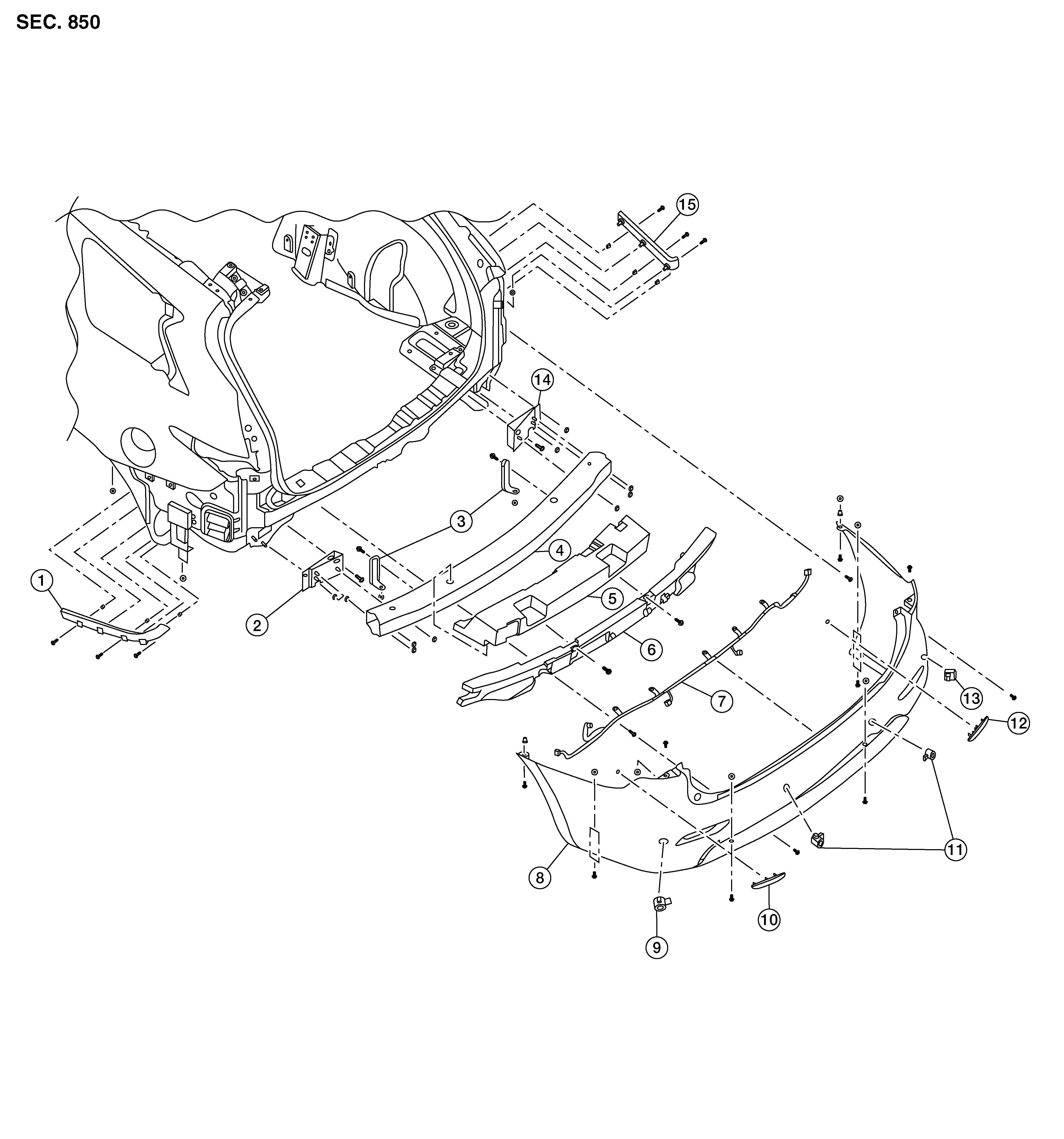

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear bumper side bracket (LH) |
2. |
Rear bumper reinforcement support (LH) |
3. |
Rear bumper fascia lower bracket (LH/RH) |
|
4. |
Rear bumper reinforcement |
5. |
Rear bumper energy absorber 1 |
6. |
Rear bumper energy absorber 2 |
|
7. |
Rear sonar sensor harness |
8. |
Rear bumper fascia |
9. |
Rear sonar sensor outer (LH) (if equipped) |
|
10. |
Rear bumper fascia reflector (LH) |
11. |
Rear sonar sensors inner (LH/RH) (if equipped) |
12. |
Rear bumper fascia reflector (RH) |
|
13. |
Rear sonar sensor outer (RH) (if equipped) |
14. |
Rear bumper reinforcement support (RH) |
15. |
Rear bumper side bracket (RH) |
