Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Open hood.
Remove the front bumper fascia. Refer to Removal and Installation .

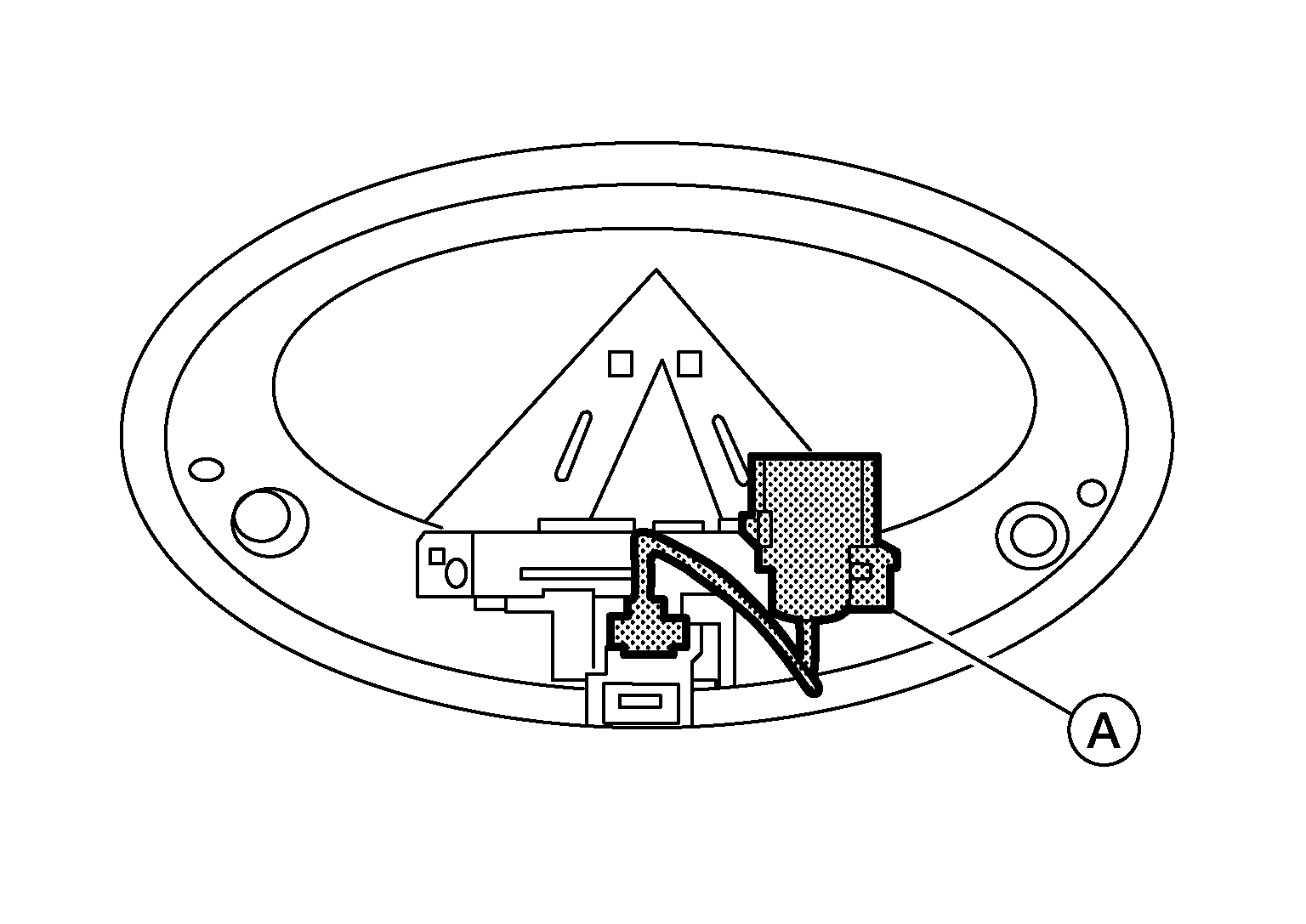

Release front camera harness connector clip (A) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.

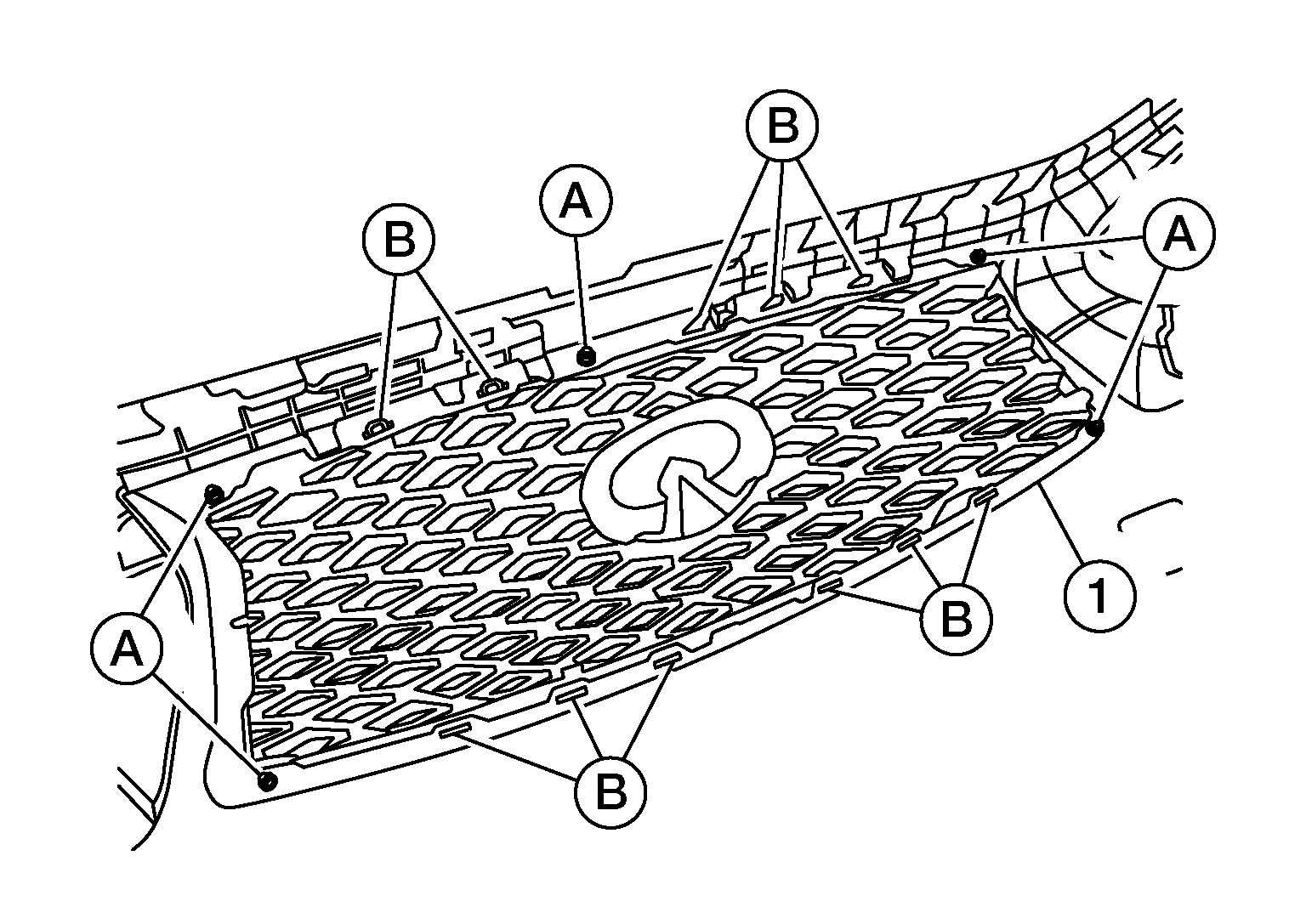

Remove the front grille nuts (A), release front grille pawls (B), then remove front grille (1) from the front bumper fascia.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the following parts (if necessary) after removing front grille.
- Front camera (if equipped). Refer to Removal and Installation .
- Front emblem.
