Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.
  1. Open hood.
  2. Remove the core support cover clips (A), then remove the core support cover (1).
    GNSALKIA2410Z-410Courtesy of NISSAN NORTH AMERICA, INC.
  3. Partially remove the front fender protectors (LH/RH). Refer to Removal and Installation .
  4. Remove the front under cover. Refer to Removal and Installation .

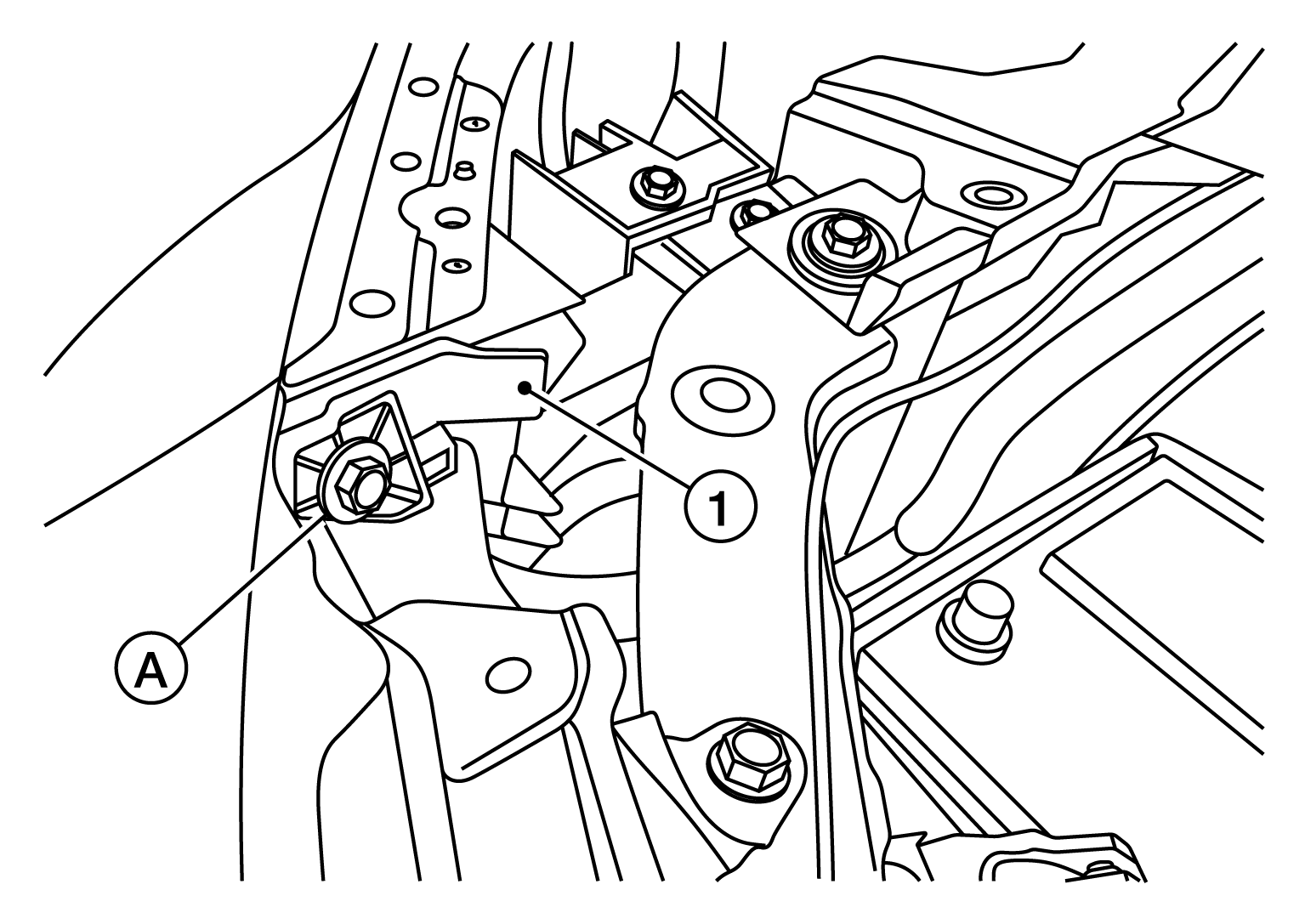

  5. Remove the front bumper fascia to upper fender screw (A) (LH/RH), then remove front fascia upper bracket (1) (LH/RH).
    GNSALKIA2406Z-406Courtesy of NISSAN NORTH AMERICA, INC.

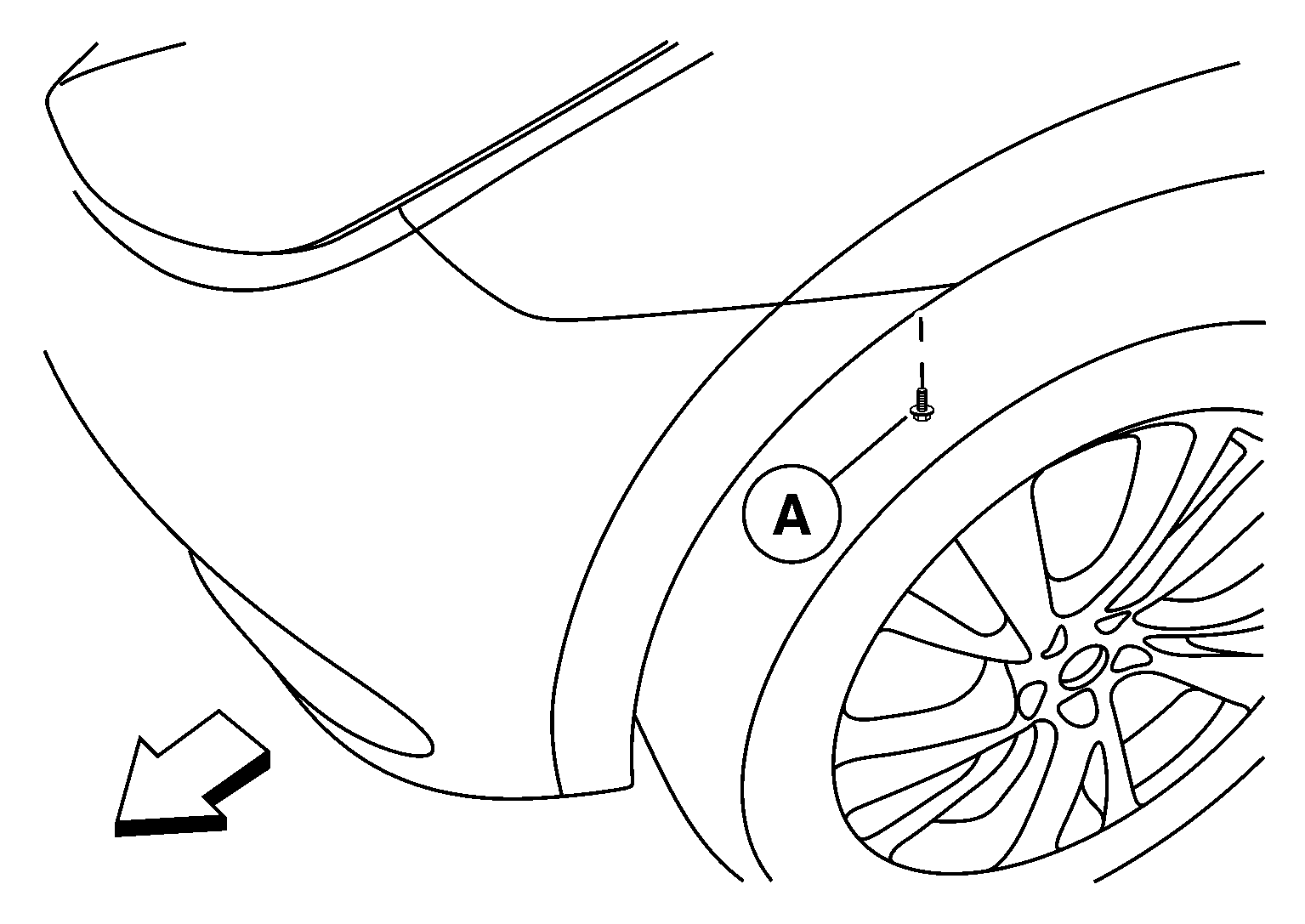

  6. Remove the front bumper fascia to fender screw (A) (LH/RH).
    GNSAWKIA2237Z-237Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  7. Disconnect all harness connectors.
  8. Disconnect headlamp washer tube (tank side) (if equipped).

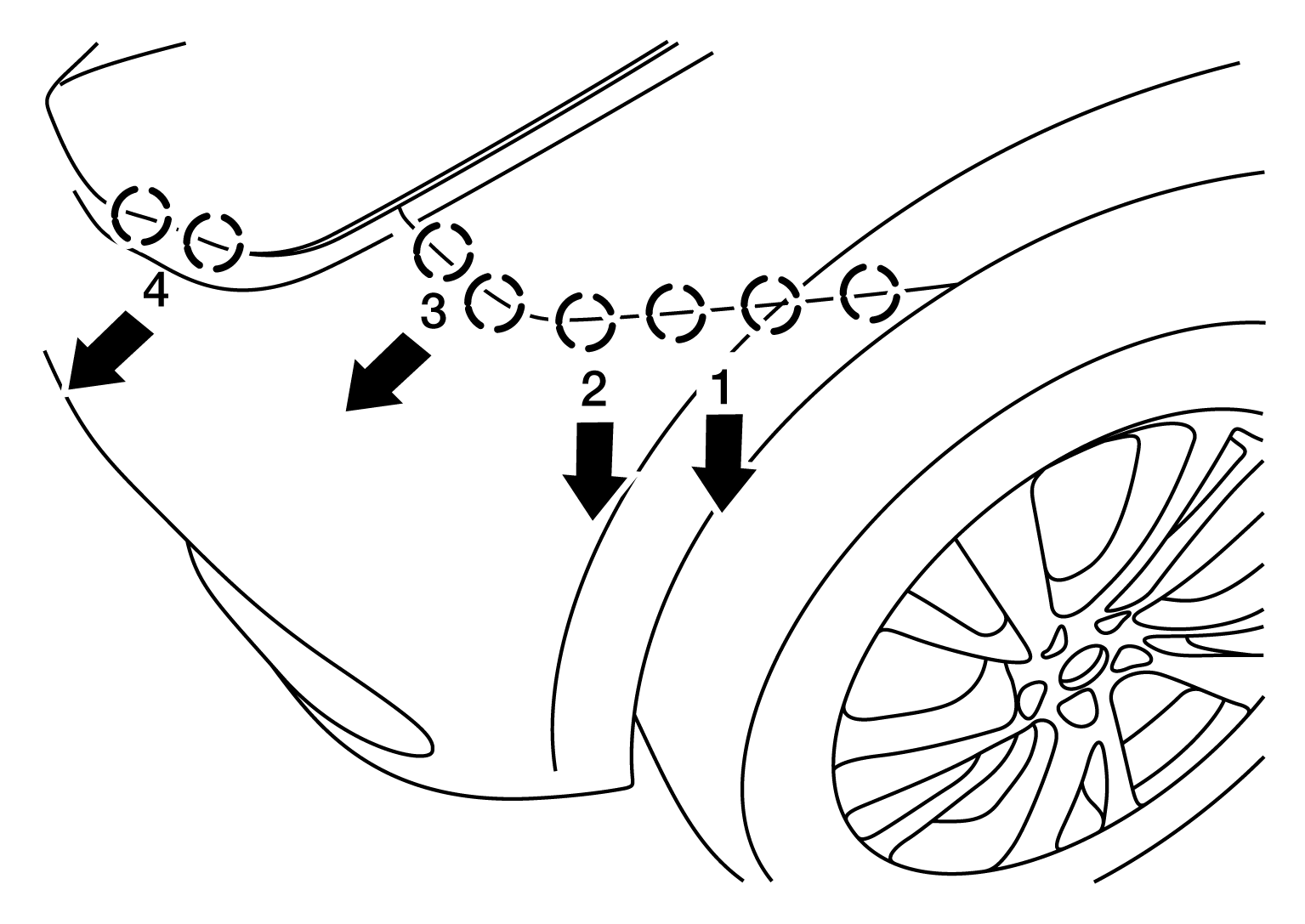

  9. Release the front bumper fascia from the side brackets (LH/RH).
    GNSALKIA2408Z-408Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  10. Remove the front bumper fascia.
    CAUTION: When removing front bumper fascia, two people are required to avoid damaging.
  11. Remove the following parts (if necessary) after removing front bumper fascia.
    • Front fascia lower grille.
    • Front bumper grille.
    • Front sonar sensor outer (LH/RH).
    • Front fog lamp assemblies (LH/RH). Refer to Removal and Installation .
    • Front fog lamp finishers (LH/RH).
    • Front license plate bracket.
    • Front spoiler.
    • Headlamp washer tube (if equipped).
  12. Remove the front bumper fascia upper retainer bracket.
