Removal and Installation: Installation
Installation is in the reverse order of removal.

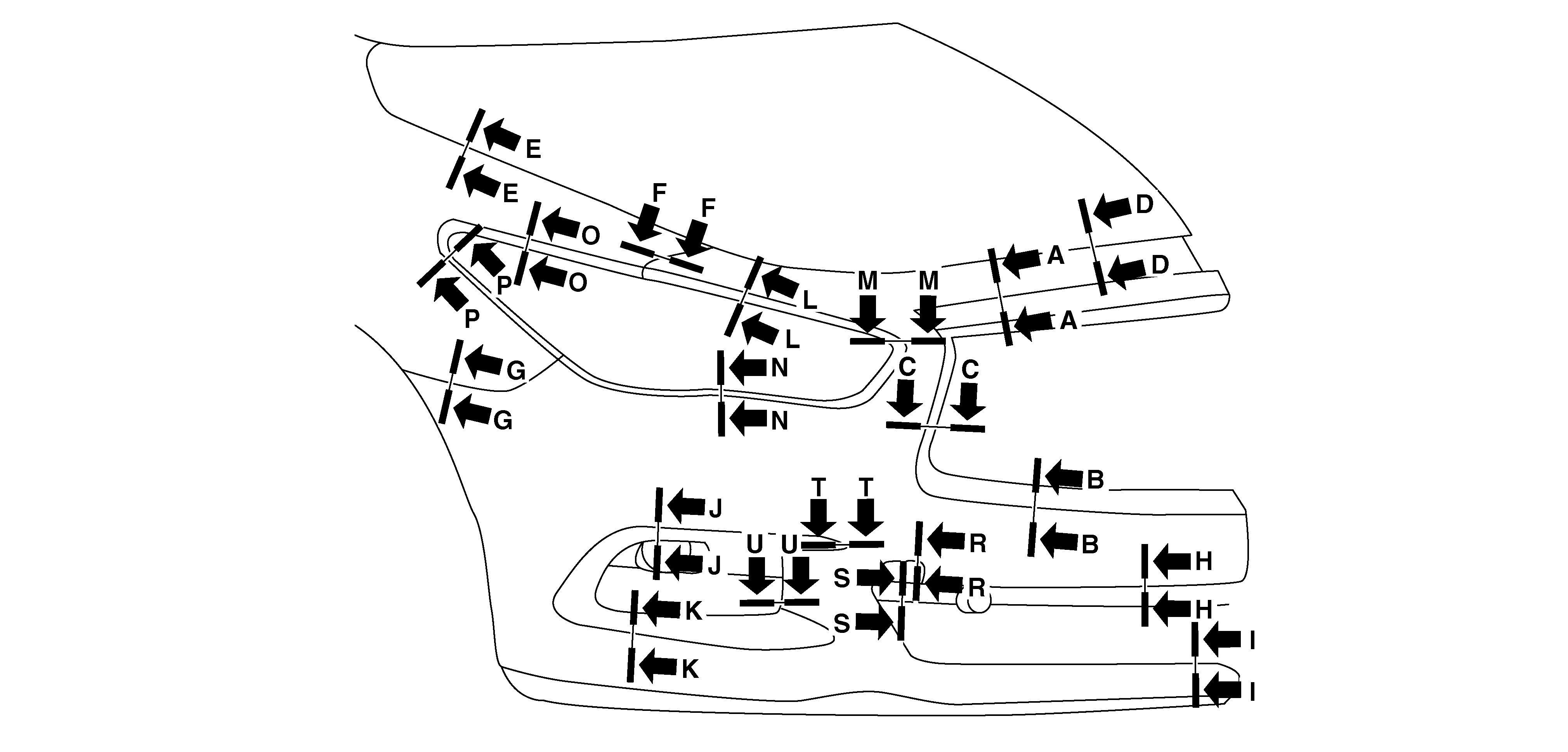

- The following table shows the specified values for checking normal installation status.
- Fitting adjustment cannot be performed.
Unit: mm (in)
|
Section |
Measurement |
Minimum |
Target Value |
Maximum |
|
A-A |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
2.8 (0.11) |
|
A-A |
Surface height |
-0.8 (-0.03) |
0.3 (0.01) |
1.4 (0.06) |
|
B-B |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
2.8 (0.11) |
|
C-C |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
2.8 (0.11) |
|
D-D |
Clearance |
2.1 (0.08) |
4.1 (0.16) |
6.1 (0.24) |
|
D-D |
Surface height |
-0.5 (-0.02) |
1.0 (0.04) |
2.5 (0.10) |
|
E-E |
Clearance |
2.5 (0.10) |
3.5 (0.14) |
4.5 (0.18) |
|
E-E |
Surface height |
-0.5 (0.02) |
1.0 (0.04) |
2.5 (0.10) |
|
F-F |
Clearance |
0.0 (0.00) |
0.0 (0.00) |
0.7 (0.03) |
|
F-F |
Surface height |
-1.0 (-0.04) |
0.0 (0.00) |
1.0 (0.04) |
|
G-G |
Clearance |
0.3 (0.01) |
0.3 (0.01) |
1.1 (0.04) |
|
G-G |
Surface height |
-0.3 (-0.01) |
0.7 (0.04) |
1.7 (0.07) |
|
H-H |
Clearance |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
I-I |
Clearance |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
J-J |
Clearance |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
K-K |
Clearance |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
L-L |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
3.2 (0.13) |
|
M-M |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
3.2 (0.13) |
|
N-N |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
3.2 (0.13) |
|
O-O |
Clearance |
0.2 (0.01) |
1.5 (0.06) |
3.0 (0.12) |
|
P-P |
Clearance |
0.1 (0.01) |
1.5 (0.06) |
2.9 (0.11) |
|
R-R |
Clearance |
0.0 (0.00) |
0.5 (0.02) |
1.0 (0.04) |
|
R-R |
Surface height |
-0.2 (-0.01) |
0.3 (0.01) |
0.8 (0.03) |
|
S-S |
Clearance |
0.0 (0.00) |
1.0 (0.04) |
2.0 (0.08) |
|
T-T |
Clearance |
-0.2 (-0.01) |
1.0 (0.04) |
2.2 (0.09) |
|
U-U |
Clearance |
0.0 (0.00) |
0.0 (0.00) |
1.2 (0.05) |
