Removal and Installation: Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove grease, dust, etc. from the emblem and panel.
  2. Install emblem on the panel.
    CAUTION: Do not reuse the emblem.
    NOTE:

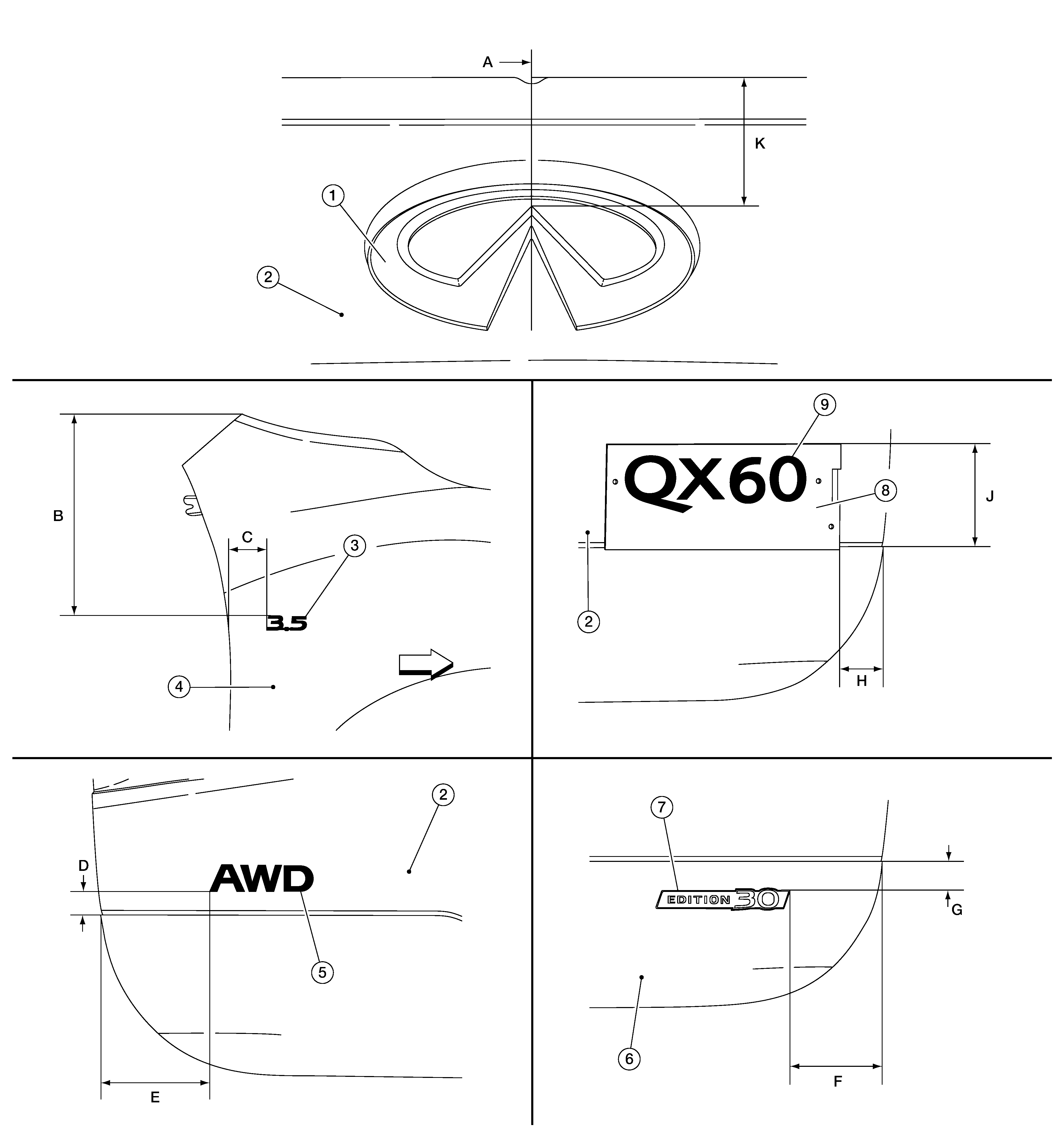

    • The following figure shows the fixing position of the emblem.
    • The central position of the left and right of the emblem A should be measured between the left and right end portions of the back door assembly. Then attach the emblem at the center of the back door assembly.
      GNSALKIA0690Z-690Courtesy of NISSAN NORTH AMERICA, INC.

      1.

      Emblem A

      2.

      Back door assembly

      3.

      Emblem B

      4.

      Front fender

      5.

      Emblem C (if equipped)

      6.

      Back door outer lower finisher

      7.

      Emblem E (if equipped)

      8.

      Guide plate

      9.

      Emblem D

      SYMBOL

      Front

      Unit: mm (in)

      A

      : 0.0 (0.0)

      B

      : 365.5 (14.4)

      C

      : 60.1 (2.4)

      D

      : 15.3 (0.6)

      E

      : 88.1 (3.5)

      F

      : 87.5 (3.4)

      G

      : 47.5 (1.9)

      H

      : 42.5 (1.7)

      J

      : 79.7 (3.1)

      K

      : 80.6 (3.2)
