Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

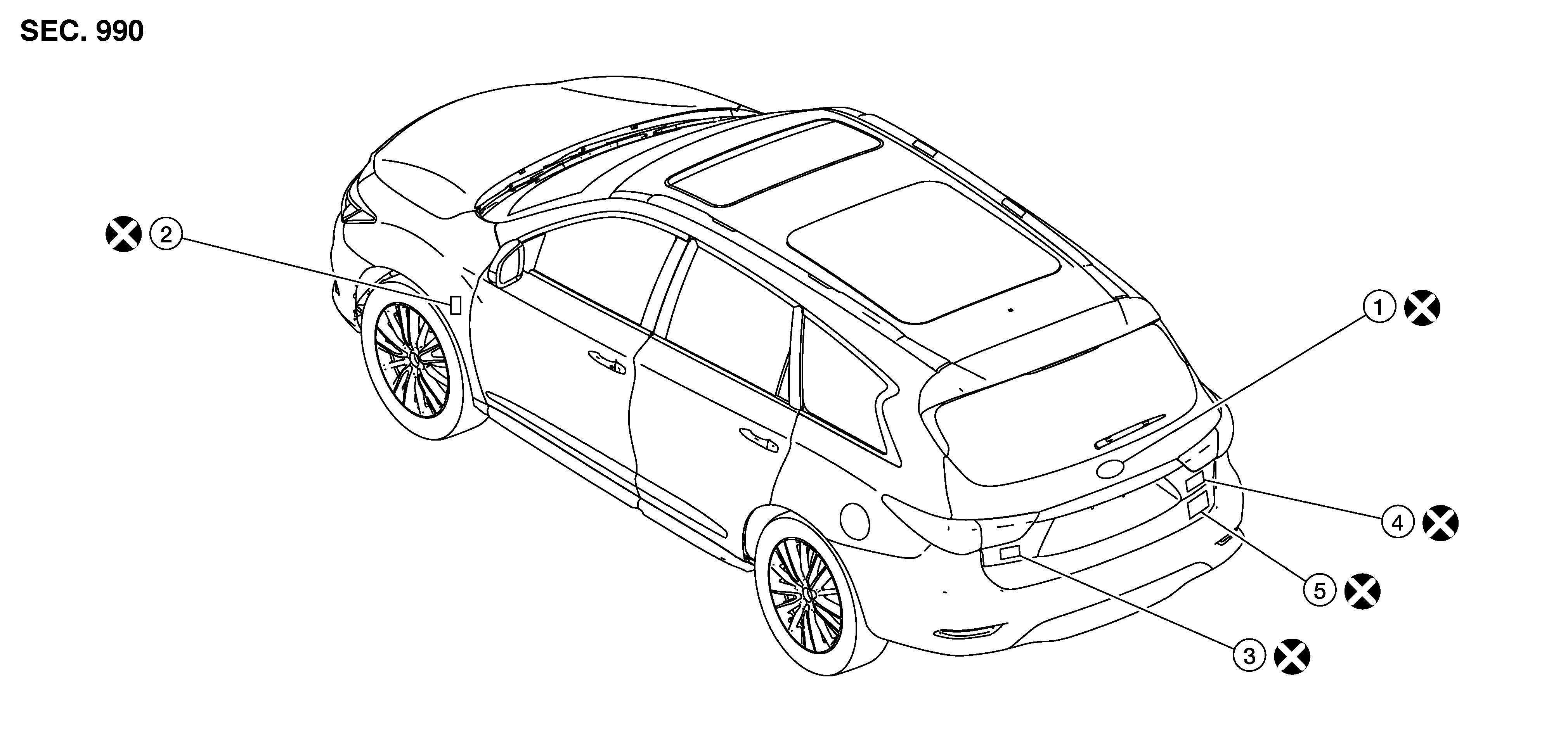

GNSALKIA0689Z-689Courtesy of NISSAN NORTH AMERICA, INC.

1.

Emblem A

2.

Emblem B

3.

Emblem C

4.

Emblem D

5.

Emblem E
