Cowl Top Extension

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the front wiper drive assembly. Refer to Removal and Installation .
CAUTION: When performing any procedure after removing cowl top cover, cover the lower end of windshield glass with urethane etc.

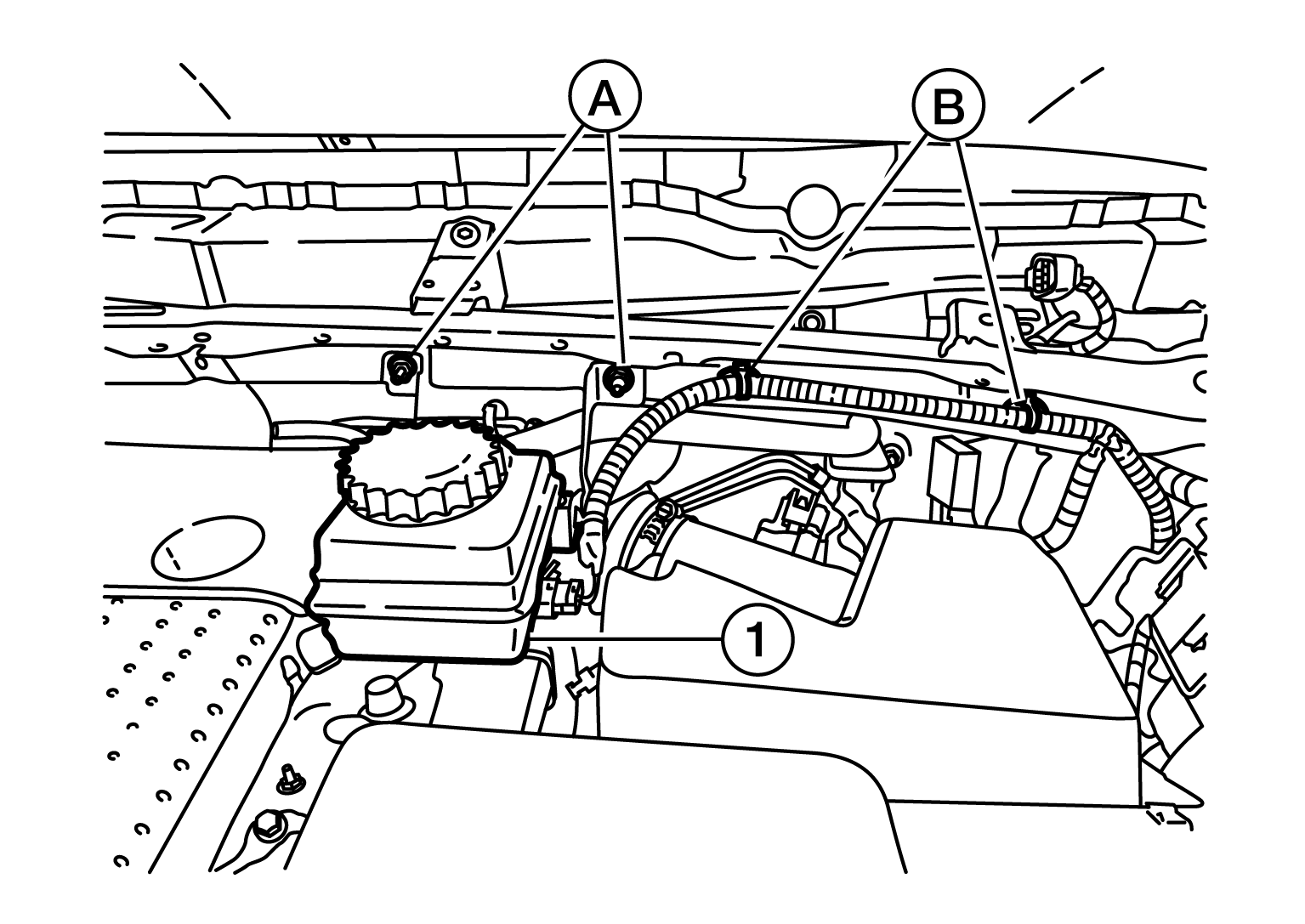

Remove the brake reservoir bracket nuts (A), release the brake level sensor harness clips (B) and position the brake reservoir (1) aside.

Courtesy of NISSAN NORTH AMERICA, INC.

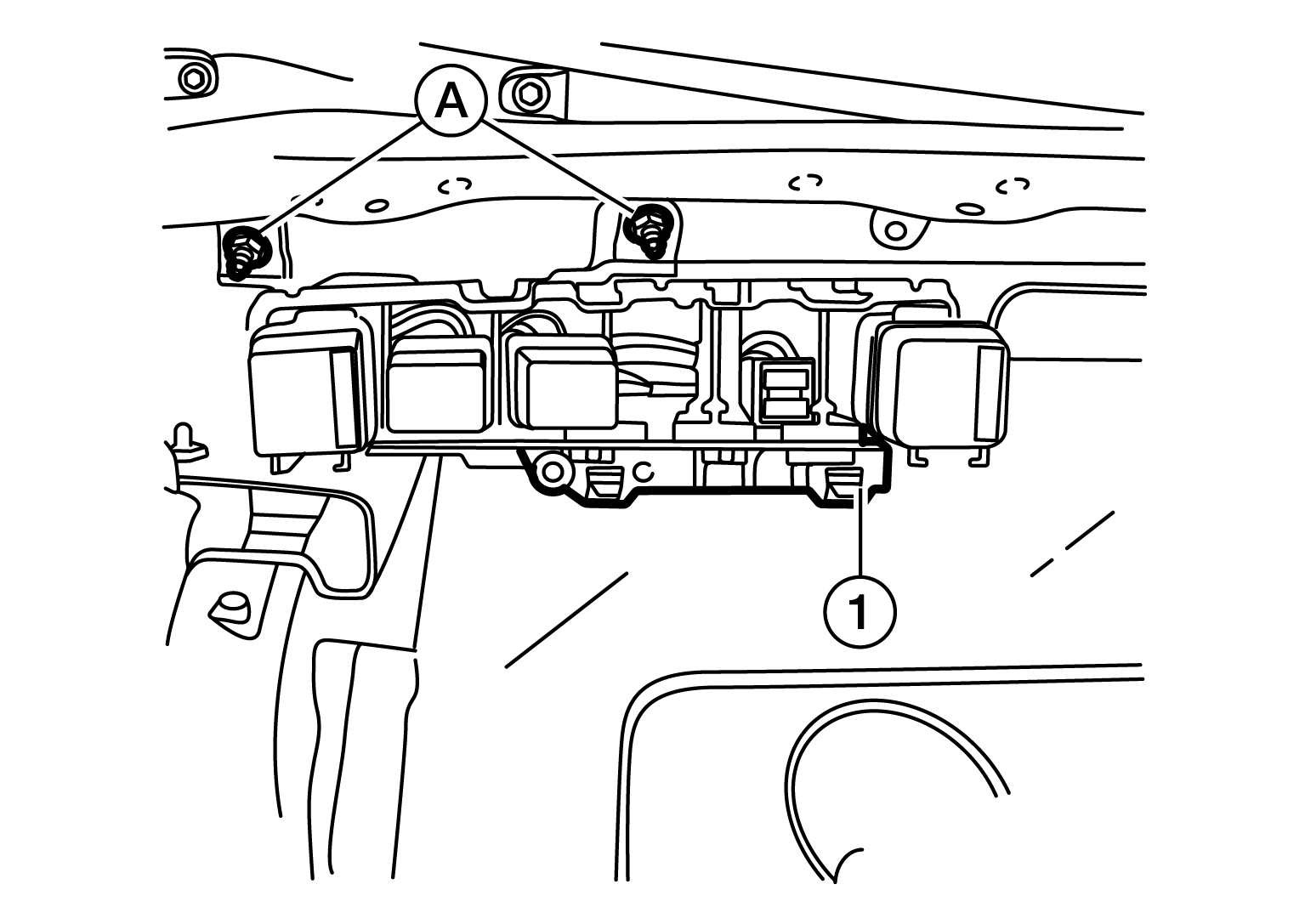

Remove the fuse and relay box nuts (A) and position the fuse and relay box (1) aside.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the cowl top extension bolts and the cowl top extension.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing cowl top cover, check that clips are securely fitted in panel holes on body, and then press them in.
After installing, perform adjustment of wiper arms. Refer to Removal and Installation .

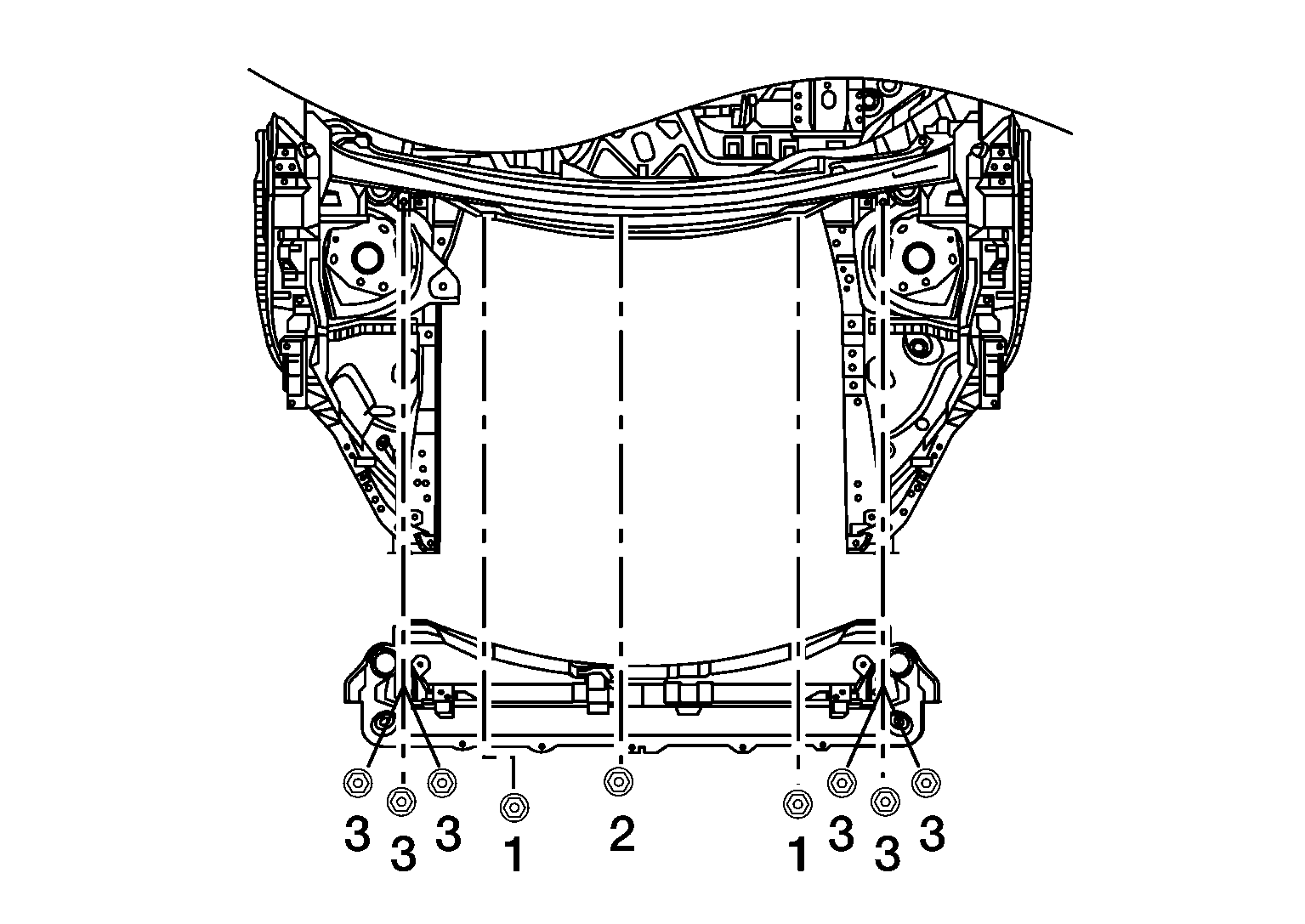

NOTE: When installing the cowl top extension, tighten the bolts in the order shown, below.

Fig 1: Cowl Top Extension Bolt Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.
