Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove front timing chain case. Refer to REMOVAL AND INSTALLATION .

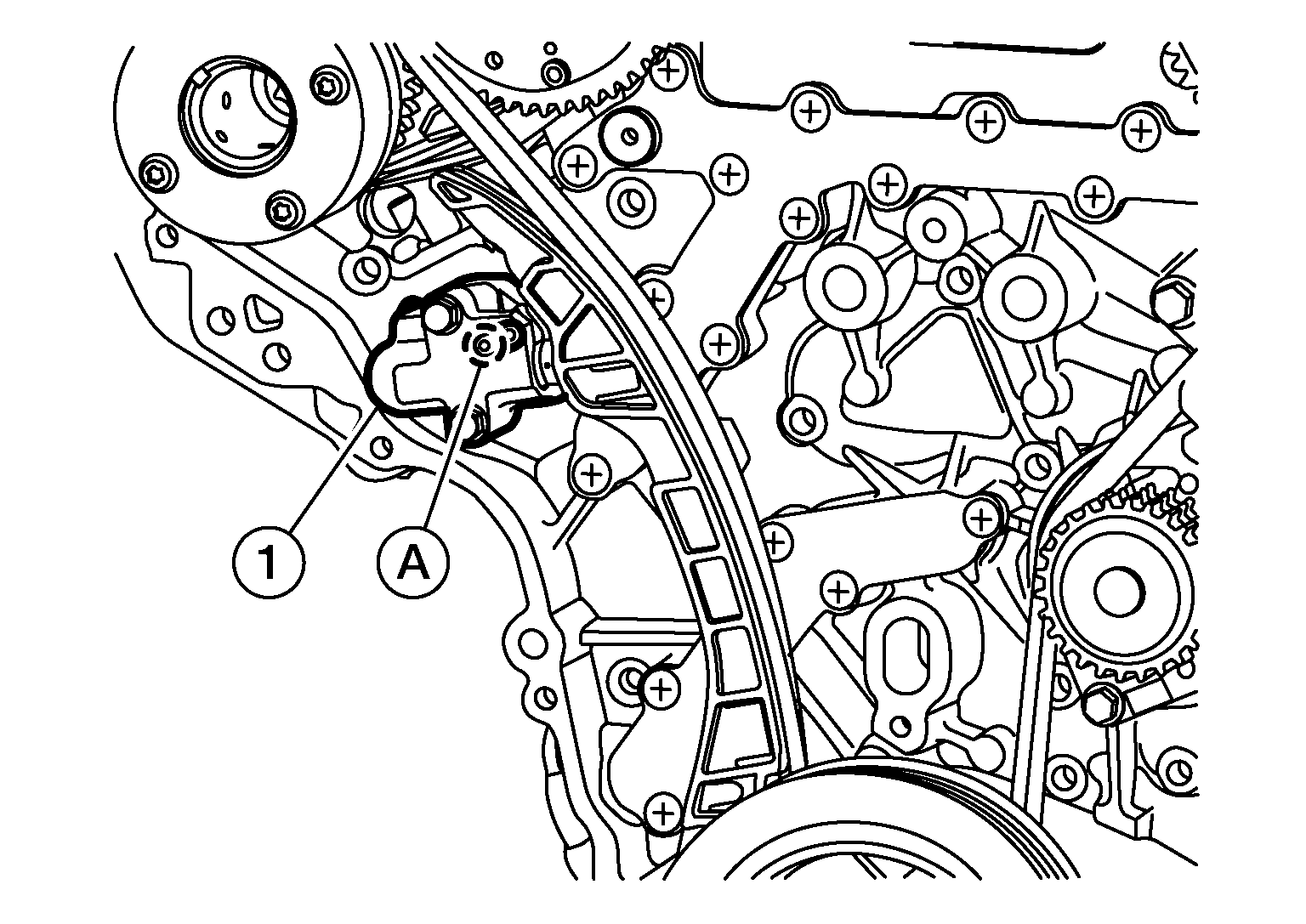

Compress timing chain tensioner [primary (1)] and insert a suitable tool into the hole (A).

Courtesy of NISSAN NORTH AMERICA, INC.

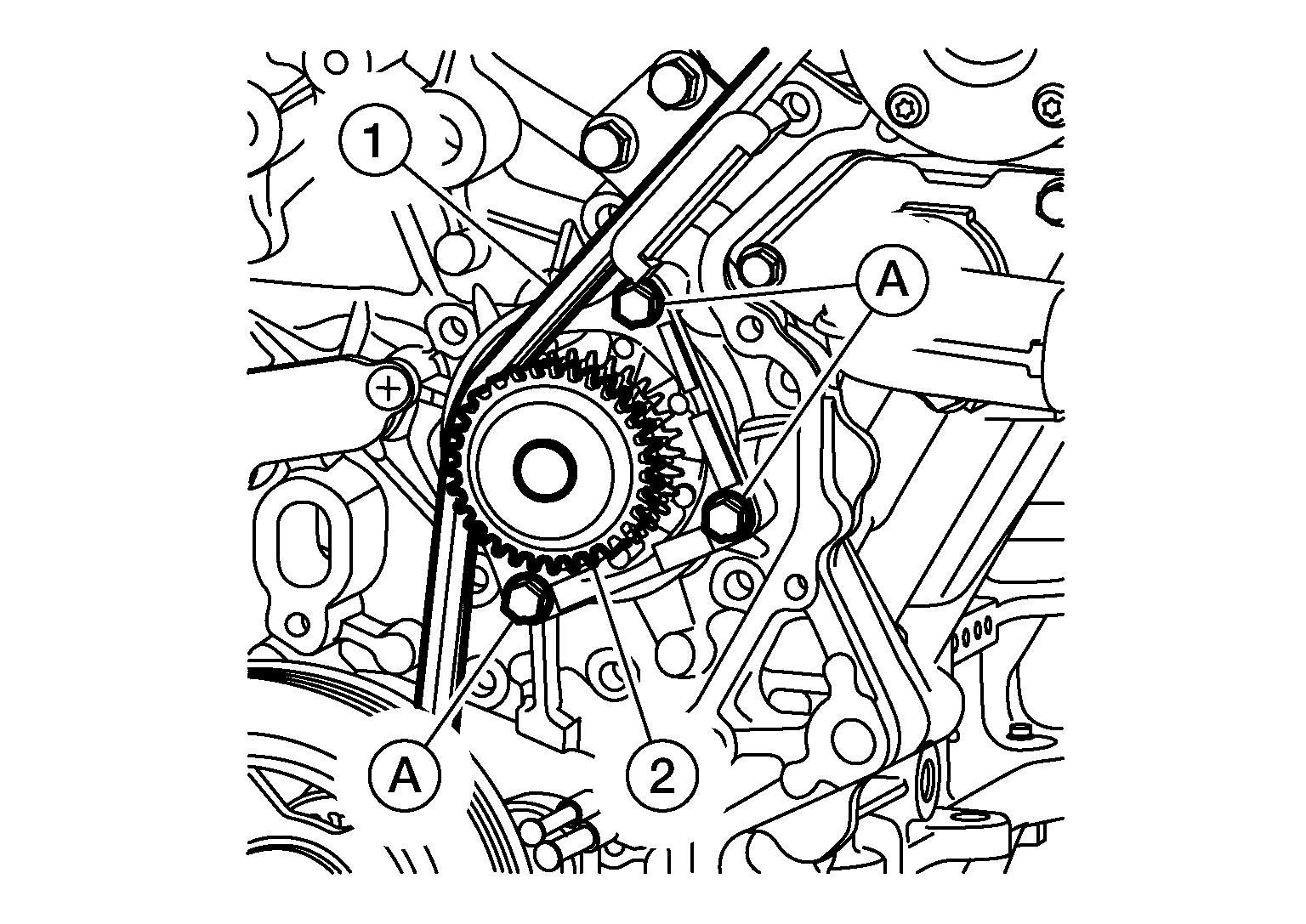

Remove bolts (A) securing the water pump (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Hold timing chain [primary (1)] to the side and remove the water pump.
CAUTION: Do not reuse O-rings.
