Special Service Tool

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name	Description

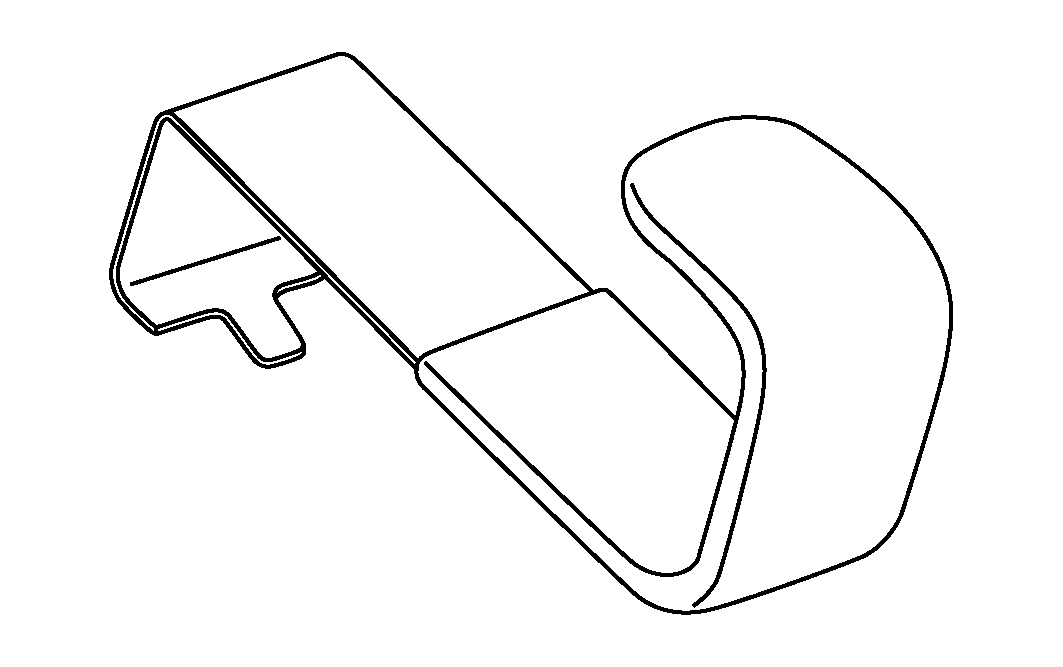

KV991J0070 (J-45695-A) Coolant refill tool	Courtesy of NISSAN NORTH AMERICA, INC.	Refilling engine cooling system

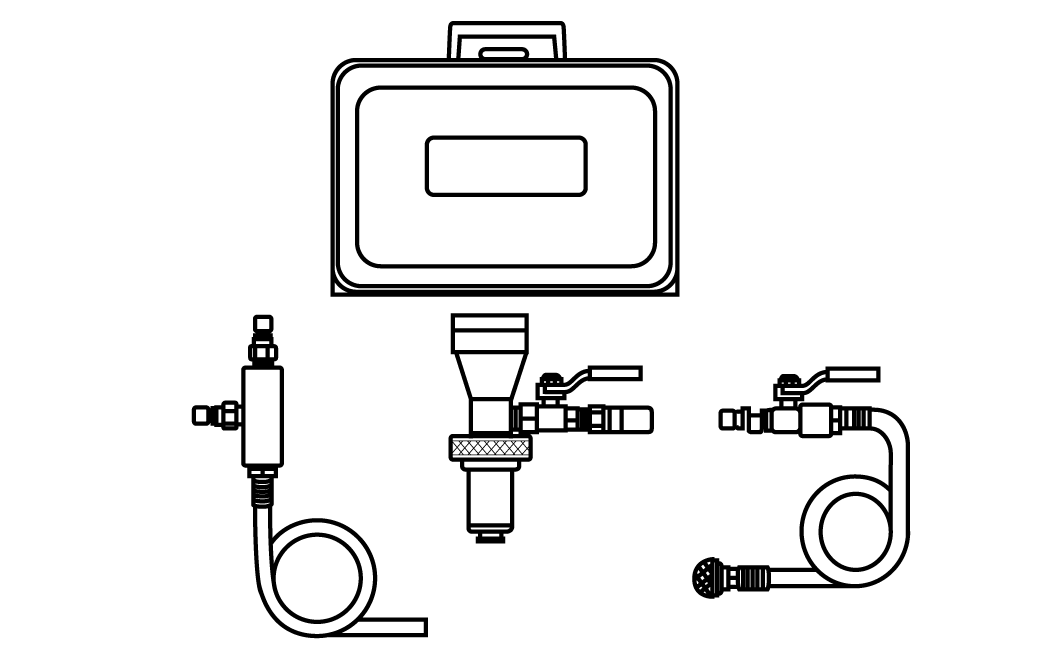

-- (J-51771) Cooling system pressure test kit -- (J-51771-1) Main body -- (J-51771-4) Small adapter -- (J-51771-5) Pump with quick release -- (J-51771-9) Radiator cap assembly with quick coupler	Courtesy of NISSAN NORTH AMERICA, INC.	Checking cooling system and radiator cap
-- (J-48891) 14 mm Spark plug socket	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing spark plugs
-- (J-52584) CVT stand pipe adapter kit	Courtesy of NISSAN NORTH AMERICA, INC.	CVT fluid changing and adjustment
(J-43926) Refrigerant dye leak detection kit Kit includes: (J-42220) UV lamp and UV safety goggles (J-41459) Refrigerant dye injector (J-41447) Fluorescent leak detection dye (box of 24, 1/4 ounce bottles) (J-43872) Refrigerant dye cleaner	Courtesy of NISSAN NORTH AMERICA, INC.	Power supply: DC 12 V (battery terminal)
(J-28431)	Courtesy of NISSAN NORTH AMERICA, INC.	Fluorescent Oil Dye
-- (J-51155) CVT fluid level quick check gauge	Courtesy of NISSAN NORTH AMERICA, INC.	Checking CVT fluid level
(J-52611) CVT charge pipe cap release tool	Courtesy of NISSAN NORTH AMERICA, INC.	Removing CVT charge pipe cap
