Chain Wear Patterns

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Examples of OK (normal) wear patterns.

Courtesy of NISSAN NORTH AMERICA, INC.

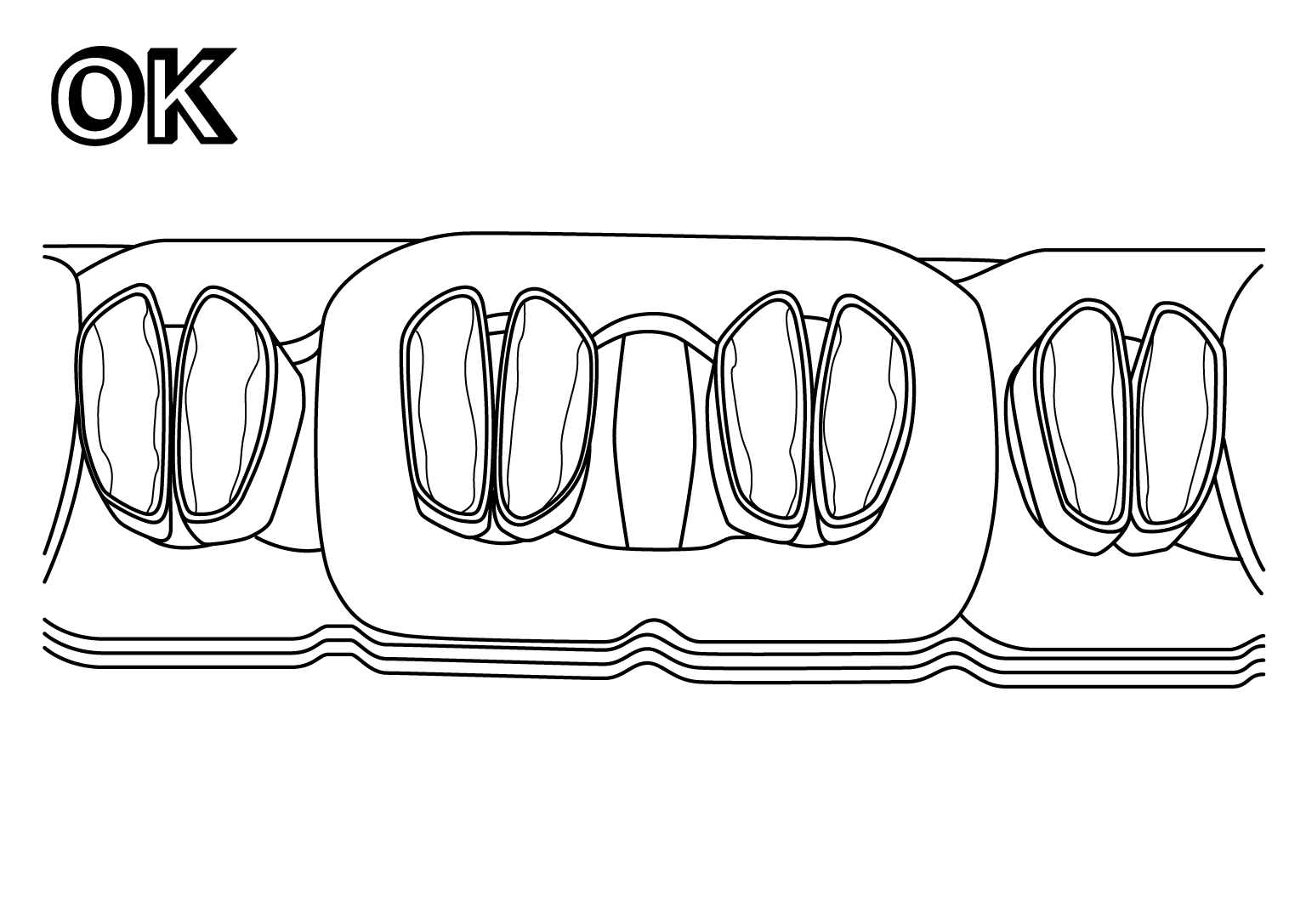

Chain contact surfaces appear smooth.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Examples of NG (abnormal) wear patterns.

Courtesy of NISSAN NORTH AMERICA, INC.

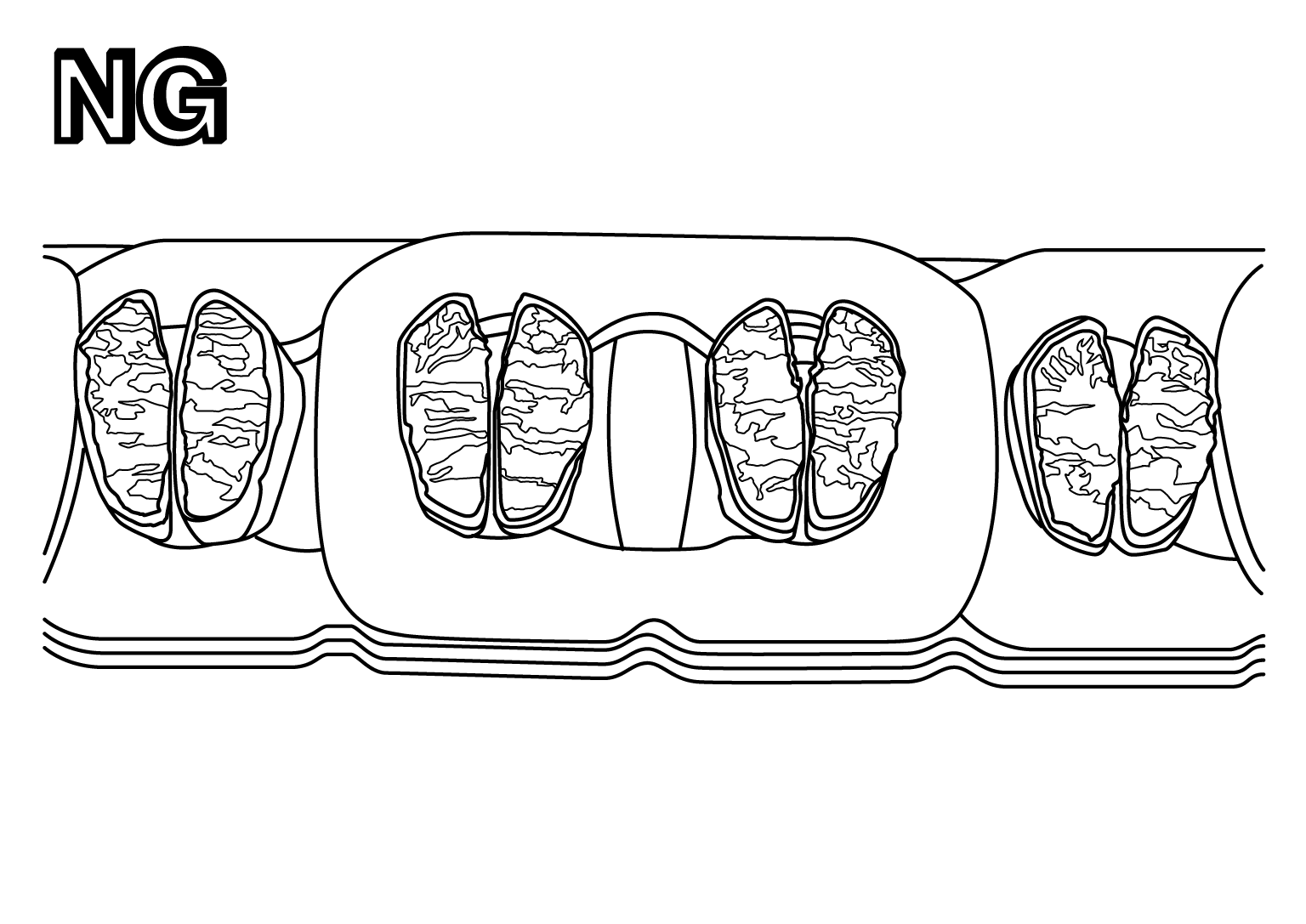

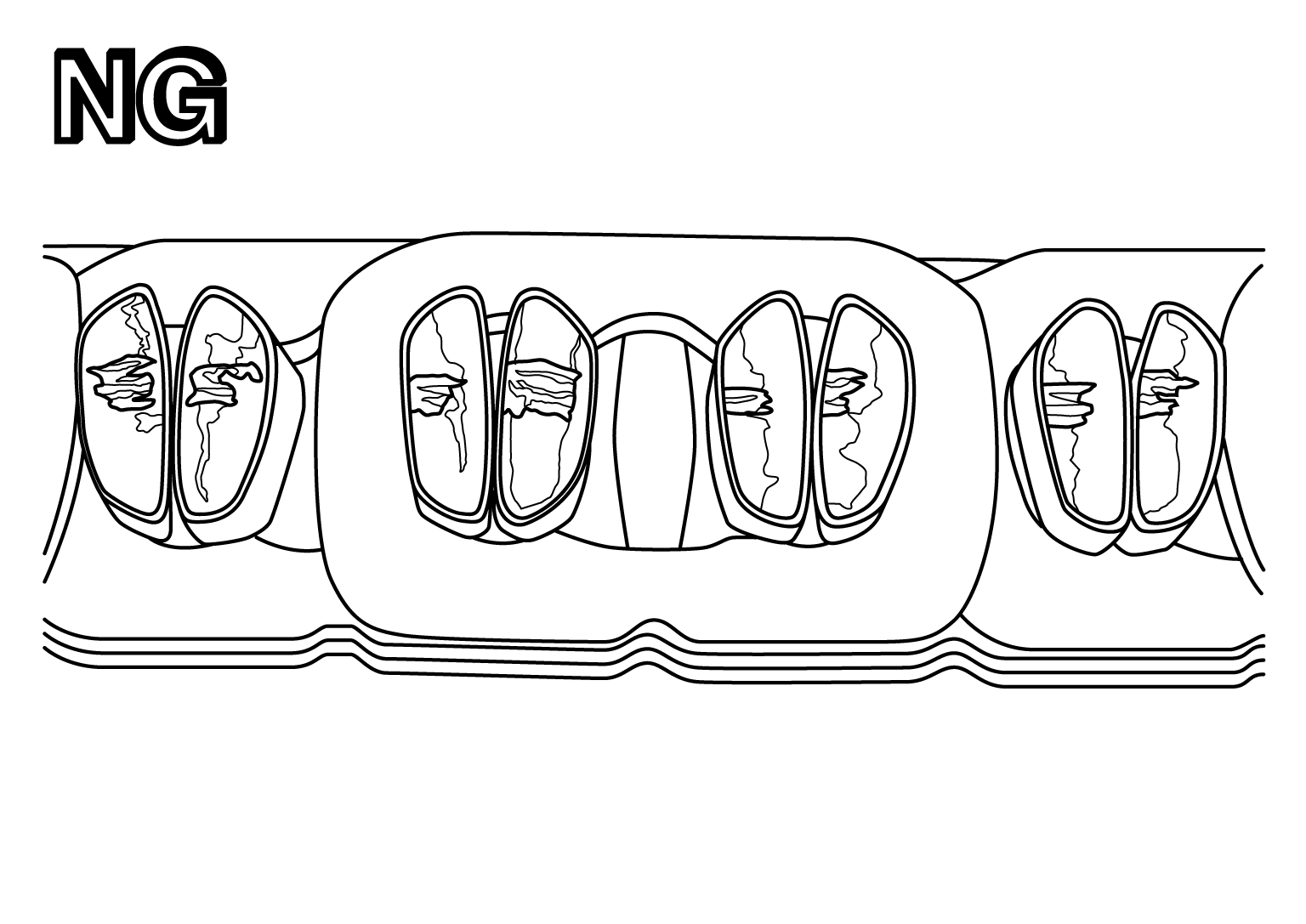

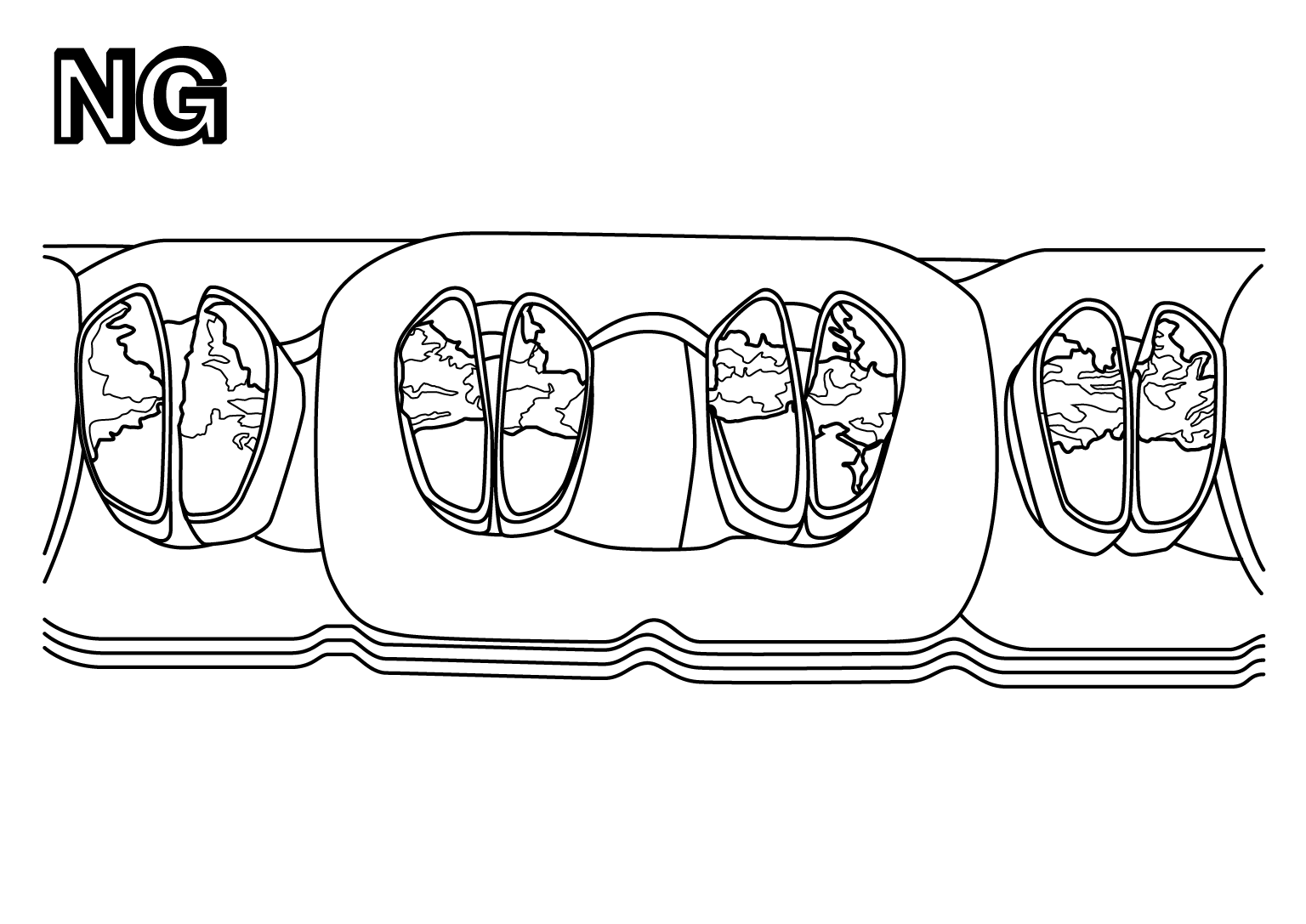

Chain contact surfaces show visible scuffing.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.
