Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C upper. Refer to Removal and Installation .

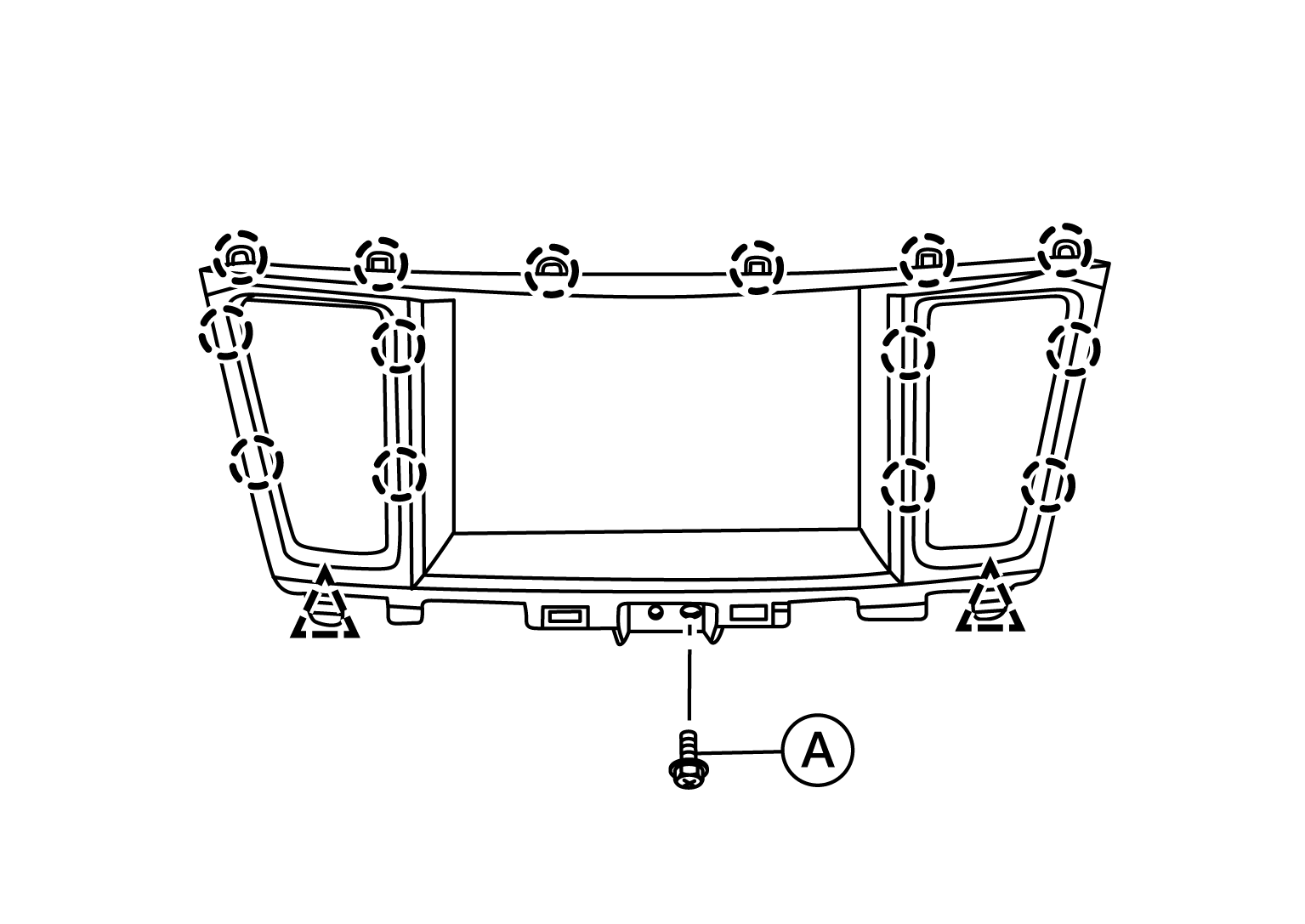

  2. Remove cluster lid D screw (A).
    GNSALJIA0863Z-863Courtesy of NISSAN NORTH AMERICA, INC.
  3. Using a suitable tool, release clips and pawls and remove cluster lid D.

    SYMBOL : Clip

    SYMBOL : Pawl

  4. Remove center ventilator grille (LH/RH) from cluster lid D (if necessary). Refer to Removal and Installation .
