Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to Removal and Installation .
  2. Using a suitable tool, release pawls from cluster lid C upper, disconnect the harness connectors and remove.

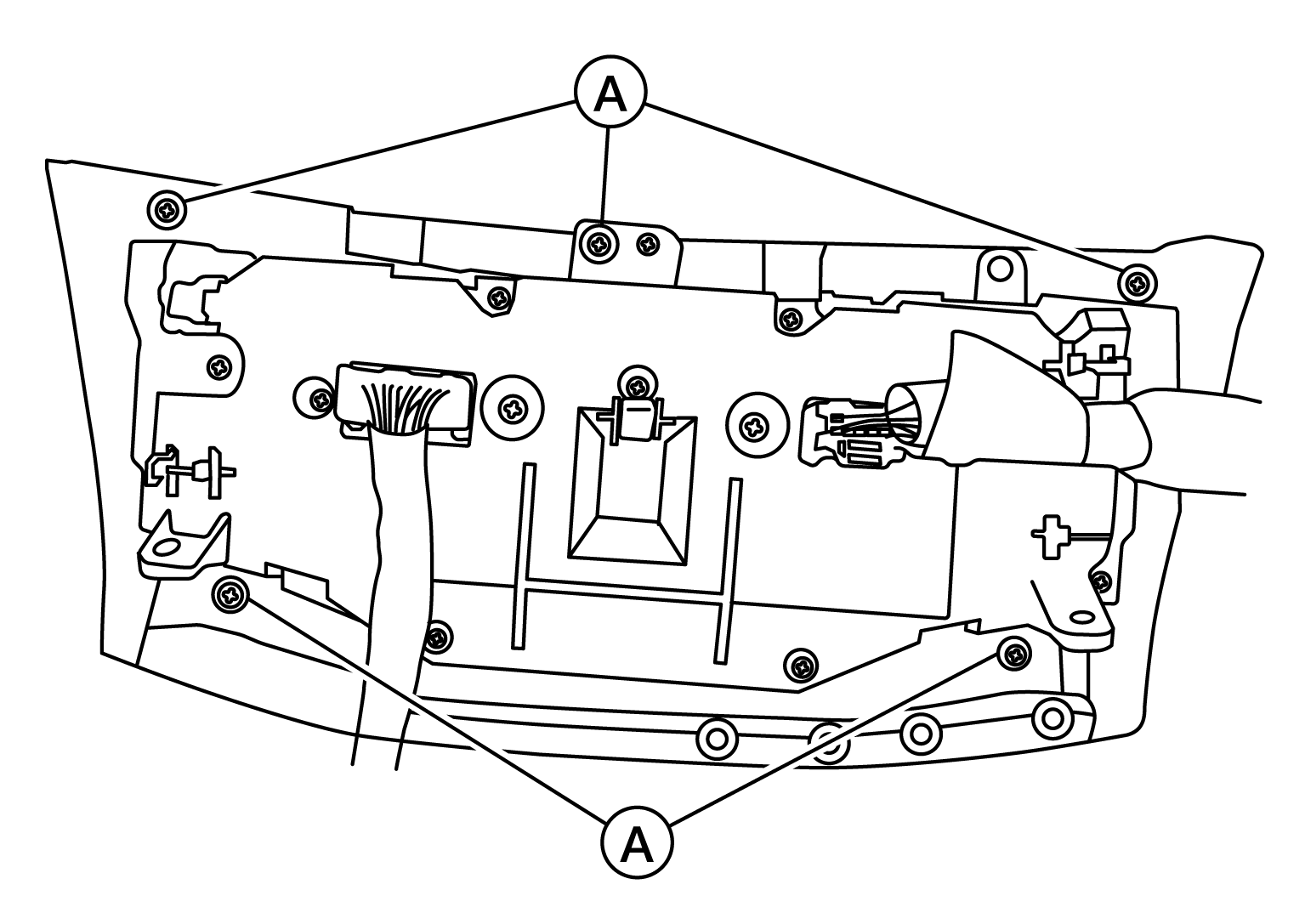

  3. Remove screws (A) and separate cluster lid C upper from multifunction switch assembly (if necessary).
    GNSALIIA0574Z-574Courtesy of NISSAN NORTH AMERICA, INC.
