Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be careful not to scratch center console finishers and other parts.
  1. Using a suitable tool, release clips and pawls and remove center console side finisher (LH/RH).
    GNSDB120153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Clip

    SYMBOL : Pawl

    SYMBOL : Front

  2. Remove front console mat from front console tray.

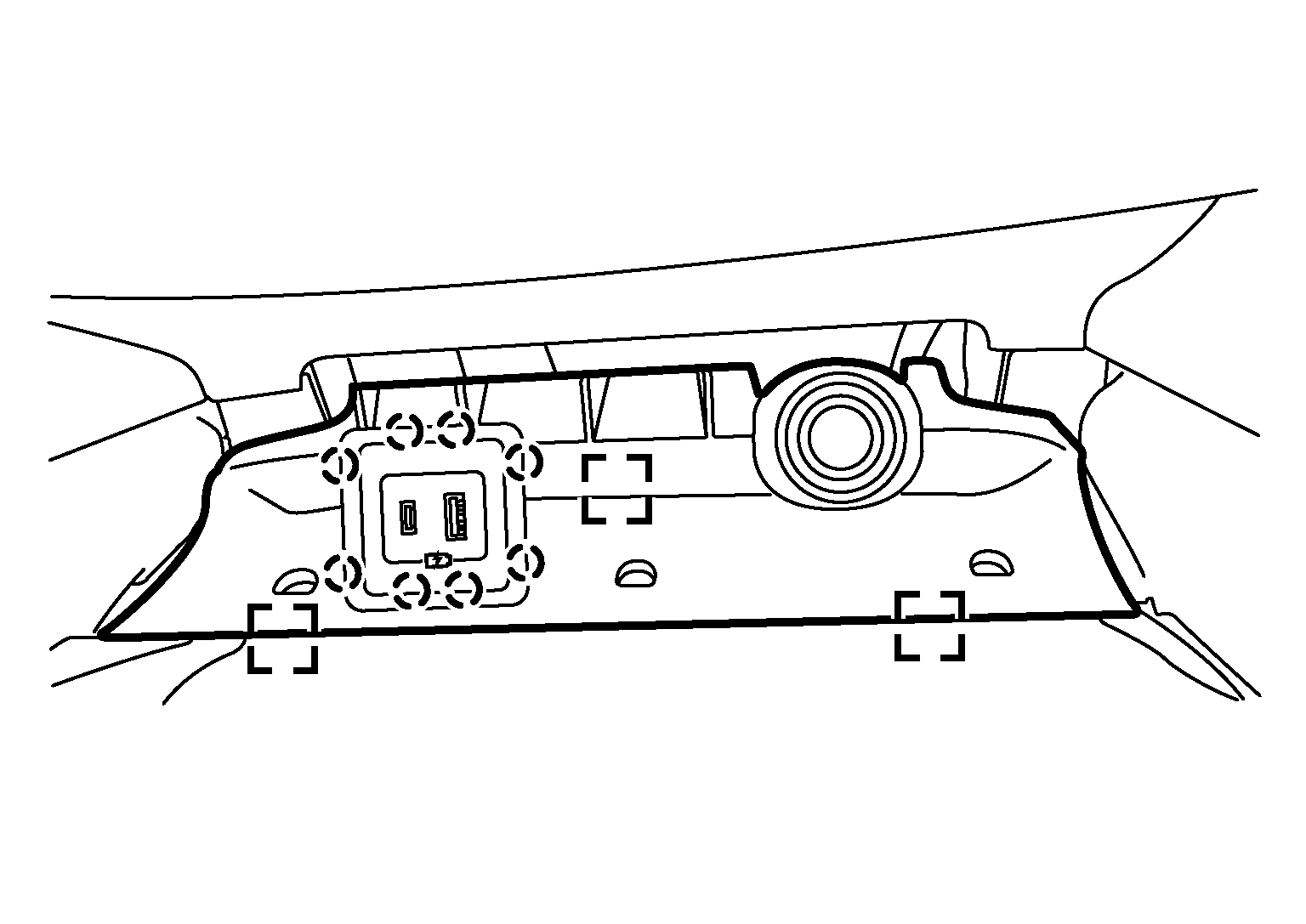

  3. Using a suitable tool, release front console tray clips, disconnect the harness connectors from the power outlets and remove.
    GNSAWMIA0075Z-075Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  4. Remove shift selector handle. Refer to EXPLODED VIEW .
  5. Using a suitable tool, release shift selector finisher clips and pawls, disconnect the harness connectors and remove.
  6. Using a suitable tool, release pawls and remove center console rear brace finisher (1).
    GNSDB112609Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    NOTE: Center console bin lid removed for clarity.
  7. Remove center console rear finisher screws (A).
    GNSALJIA1092Z-092Courtesy of NISSAN NORTH AMERICA, INC.
  8. Using a suitable tool, release clips from center console rear finisher, disconnect the harness connectors and remove.
    GNSDB123907Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  9. Remove center console assembly screws.
  10. Disconnect the harness connectors from the center console assembly and remove.
