Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove inverter unit fuse.
  2. Remove storage box. Refer to Exploded View .
  3. Remove luggage side lower finisher (LH). Refer to Removal and Installation .

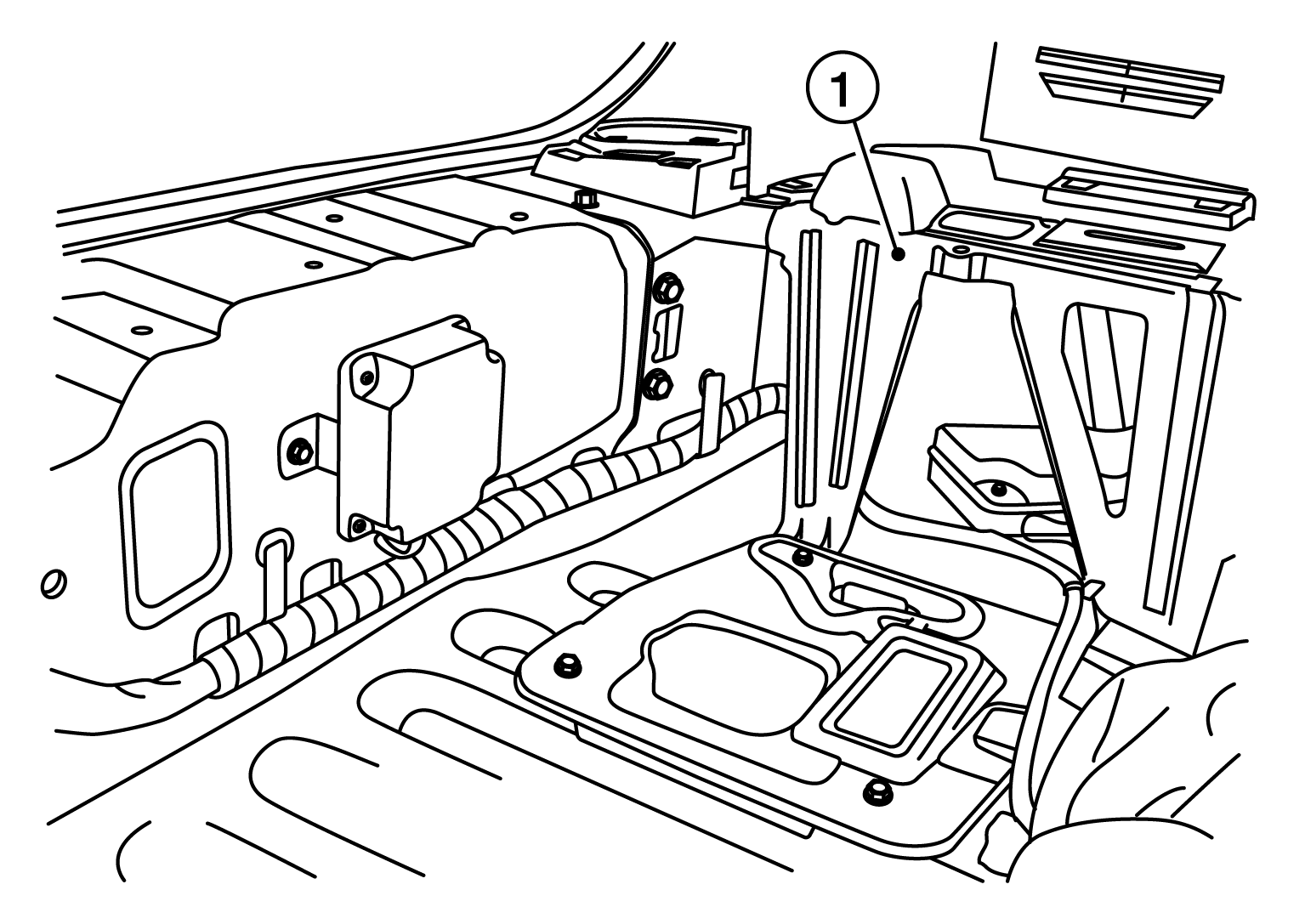

    NOTE: The inverter unit is located under the storage box bracket (LH) (1).
    GNSALMIA0555Z-555Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the inverter unit bolts.

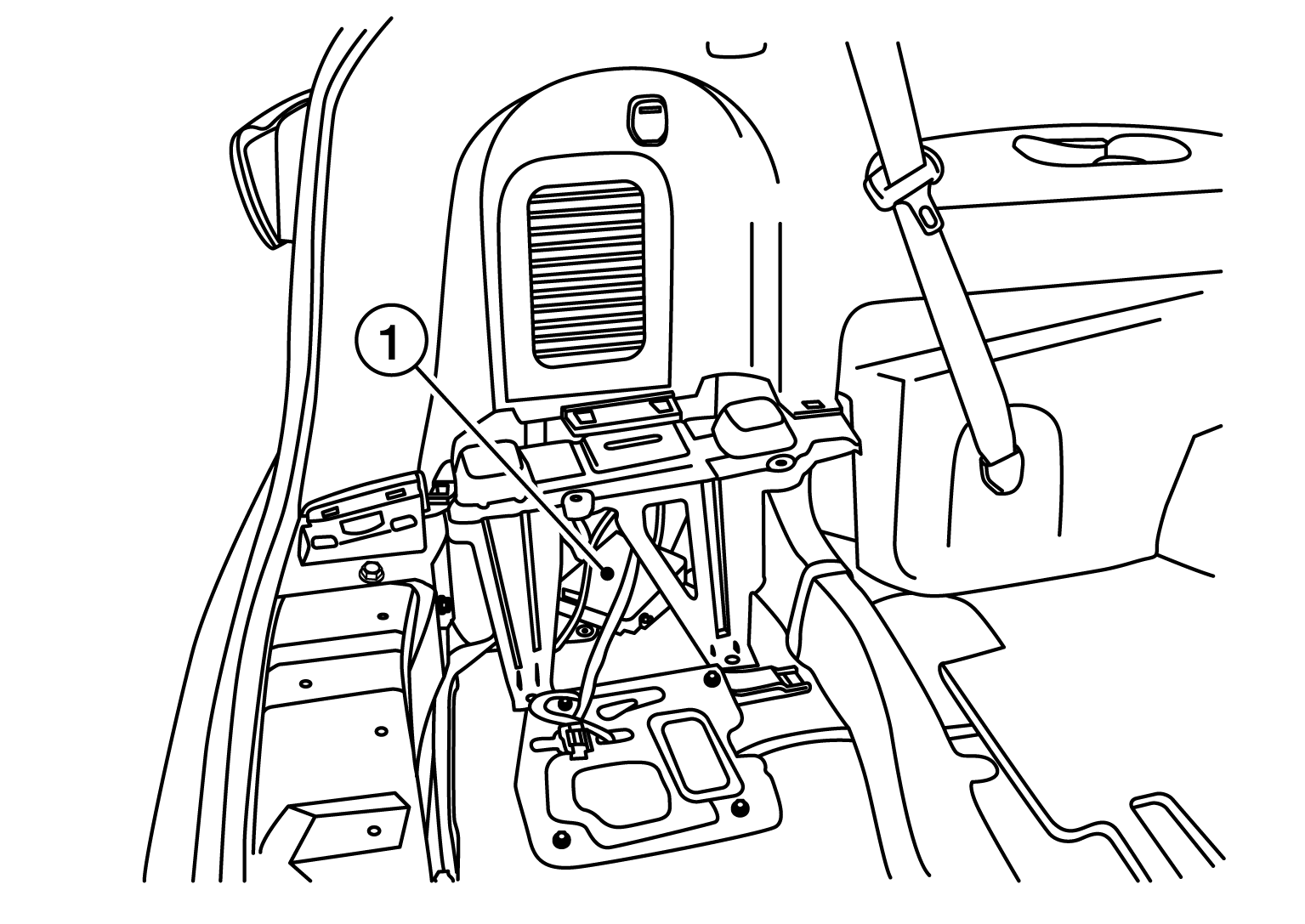

  5. Disconnect the harness connector from the inverter unit (1).
    GNSDB120232Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the inverter unit (1).
