Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove the inverter unit fuse.
Remove the instrument lower panel LH. Refer to Removal and Installation .

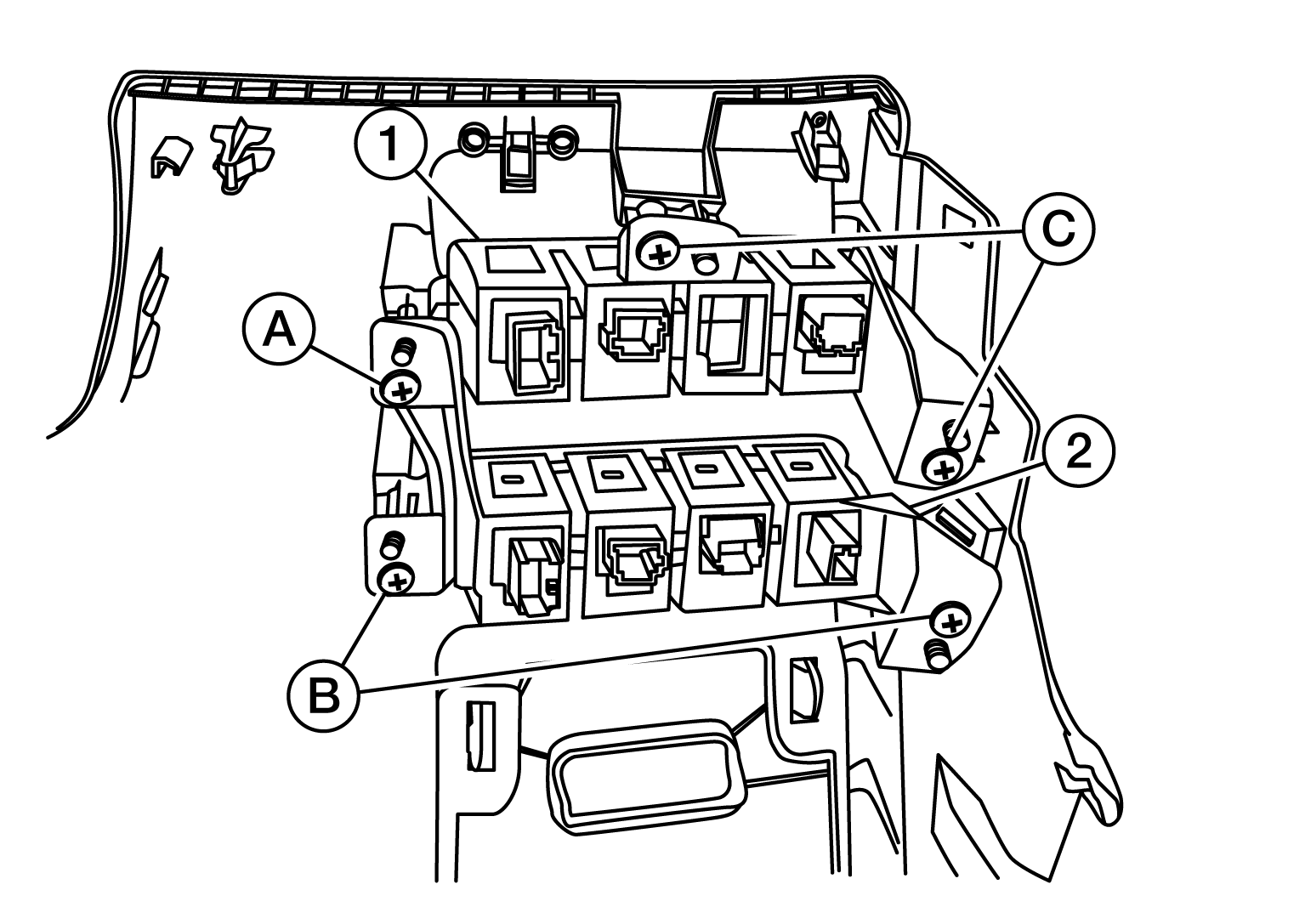

Remove three screws (A, B) that retain the lower switch assembly (2).

Courtesy of NISSAN NORTH AMERICA, INC.

(1) : Upper switch assembly

(C) : Upper switch assembly screws

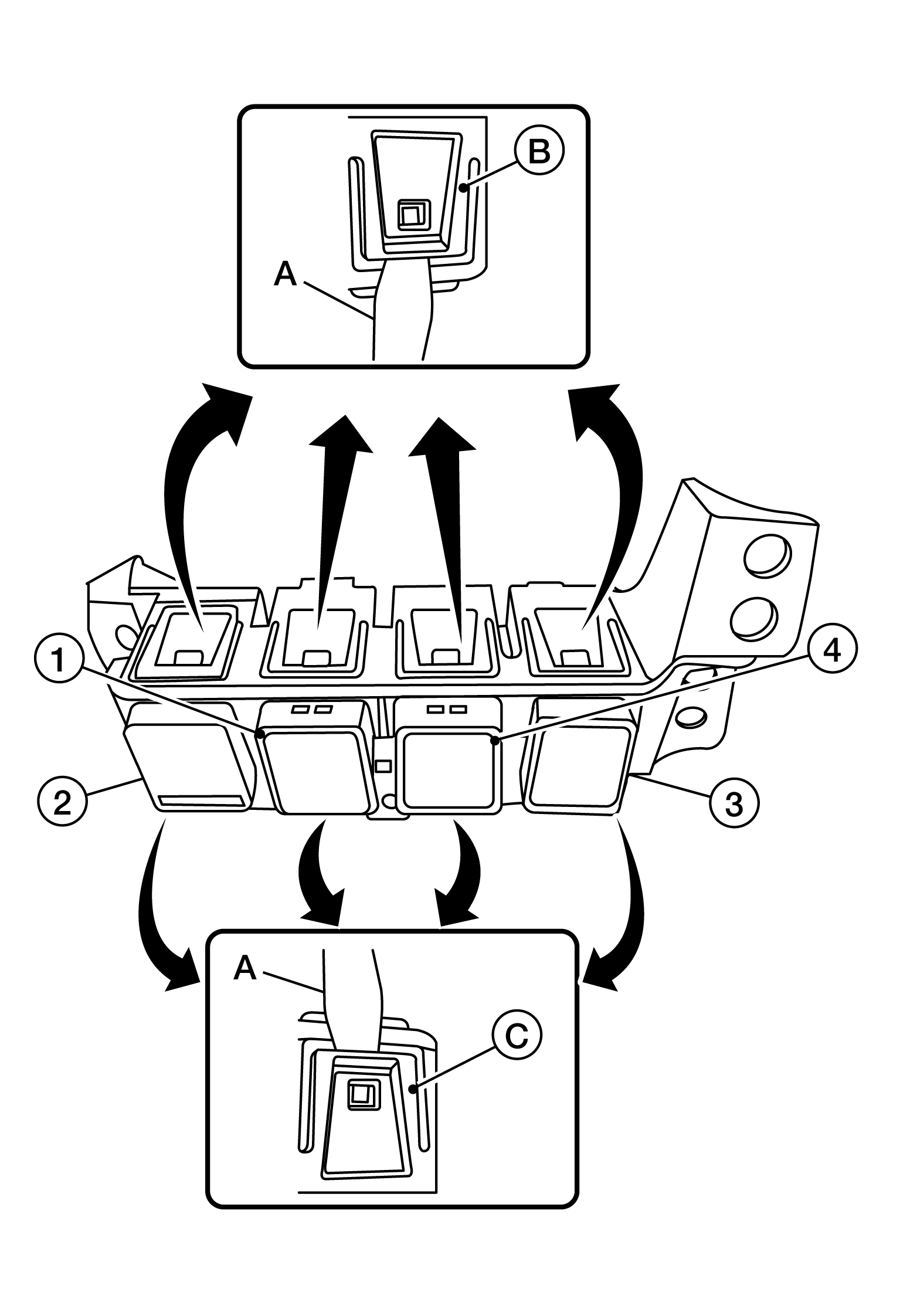

Release upper tab (B) and lower tab (C) using a suitable tool (A), then remove the A/C 120V outlet main switch (3) from the lower switch assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

(1) : Warning system switch (if equipped)

(2) : Heated steering wheel switch (if equipped)

(4) : Dimmer switch (if equipped)
