With BOSE Audio And BOSE CENTERPOINT Audio Systems

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

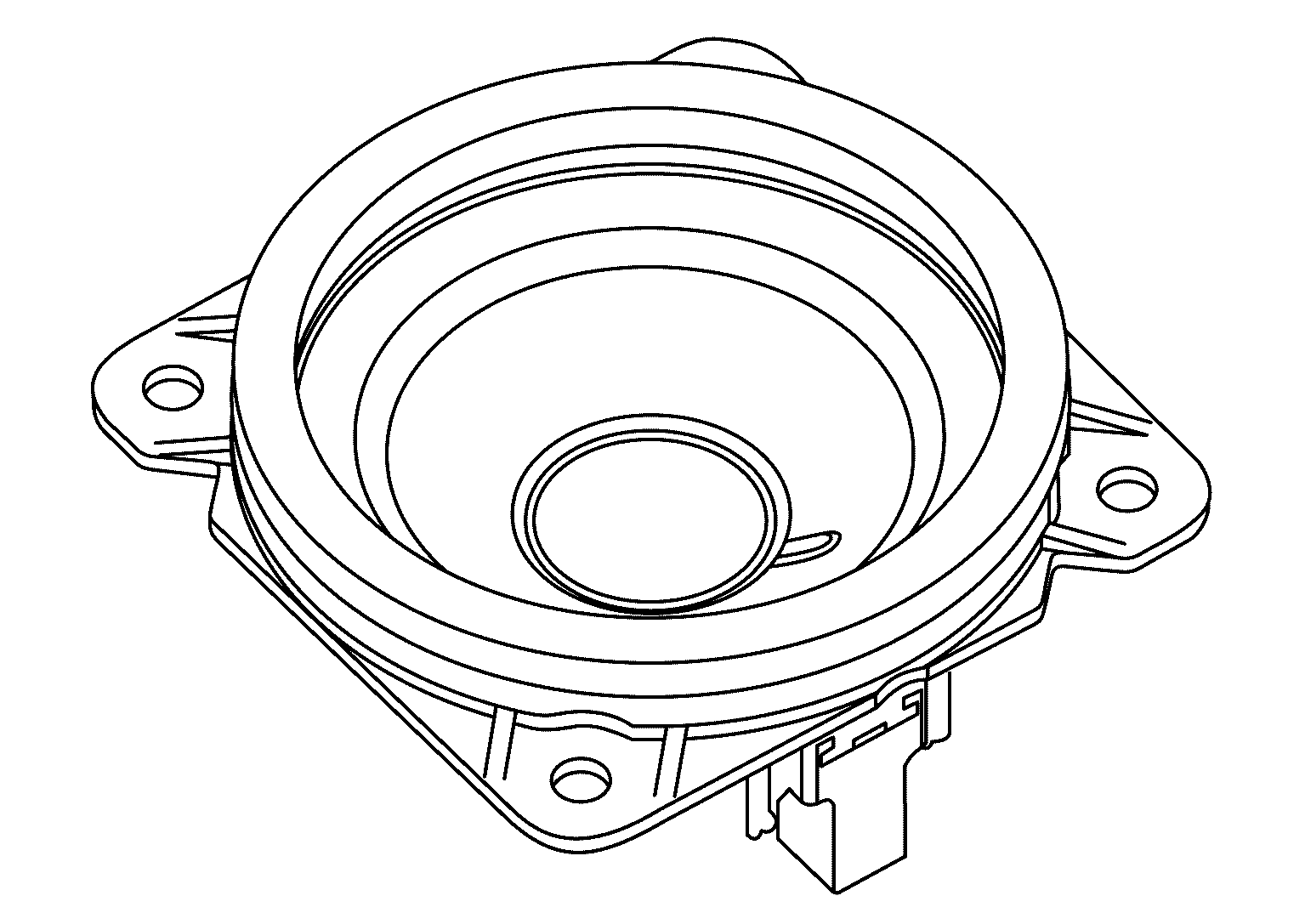

Center Speaker

7.6 cm (3 in) speaker is installed to the center of instrument panel.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output mid range sounds.

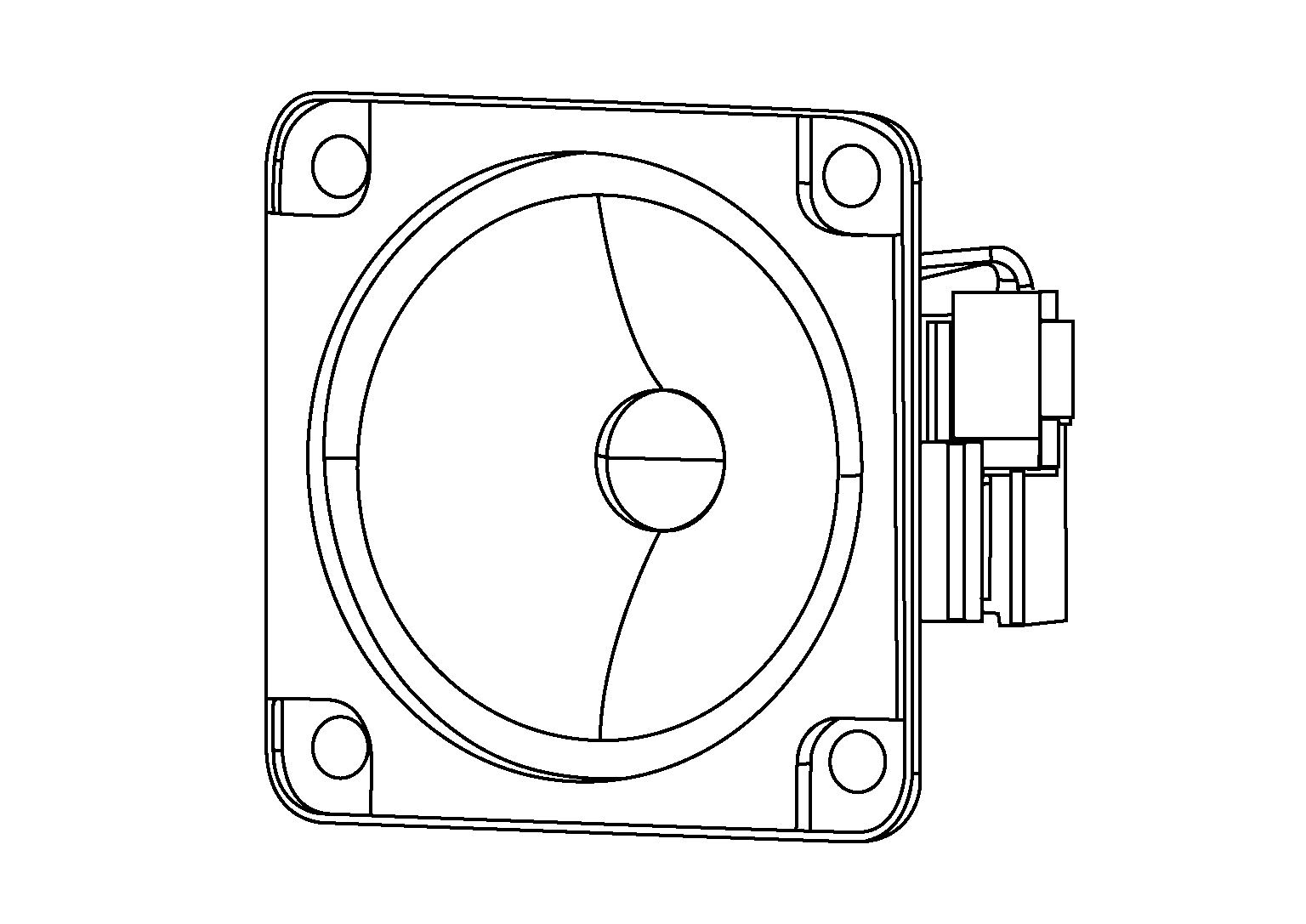

Instrument Panel Tweeter

5.1 cm (2 in) speakers are installed in the top corners of the instrument panel assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output high range sounds.

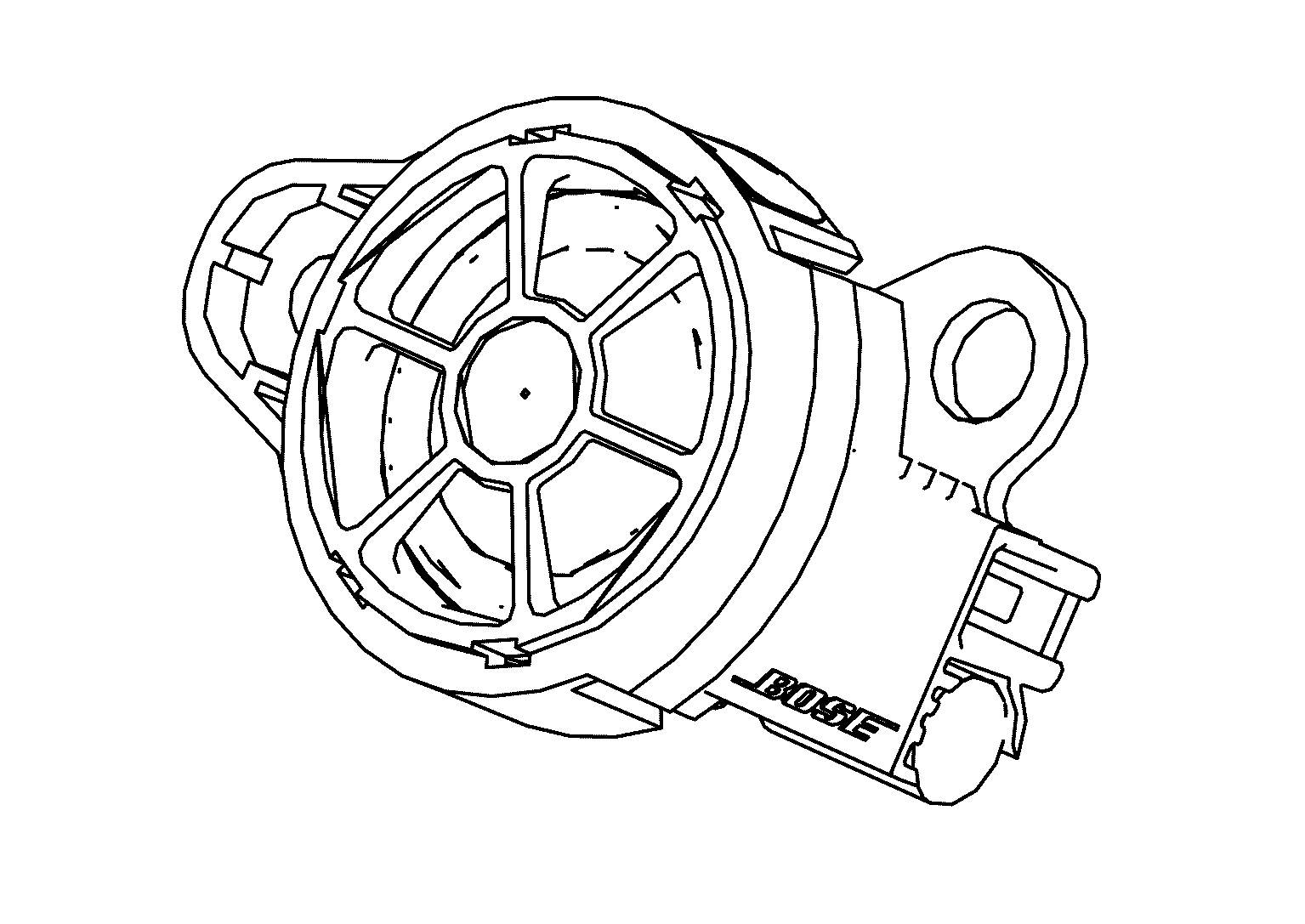

Front Tweeter

2.5 cm (1 in) speakers are installed in the front pillar finishers.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output high range sounds.

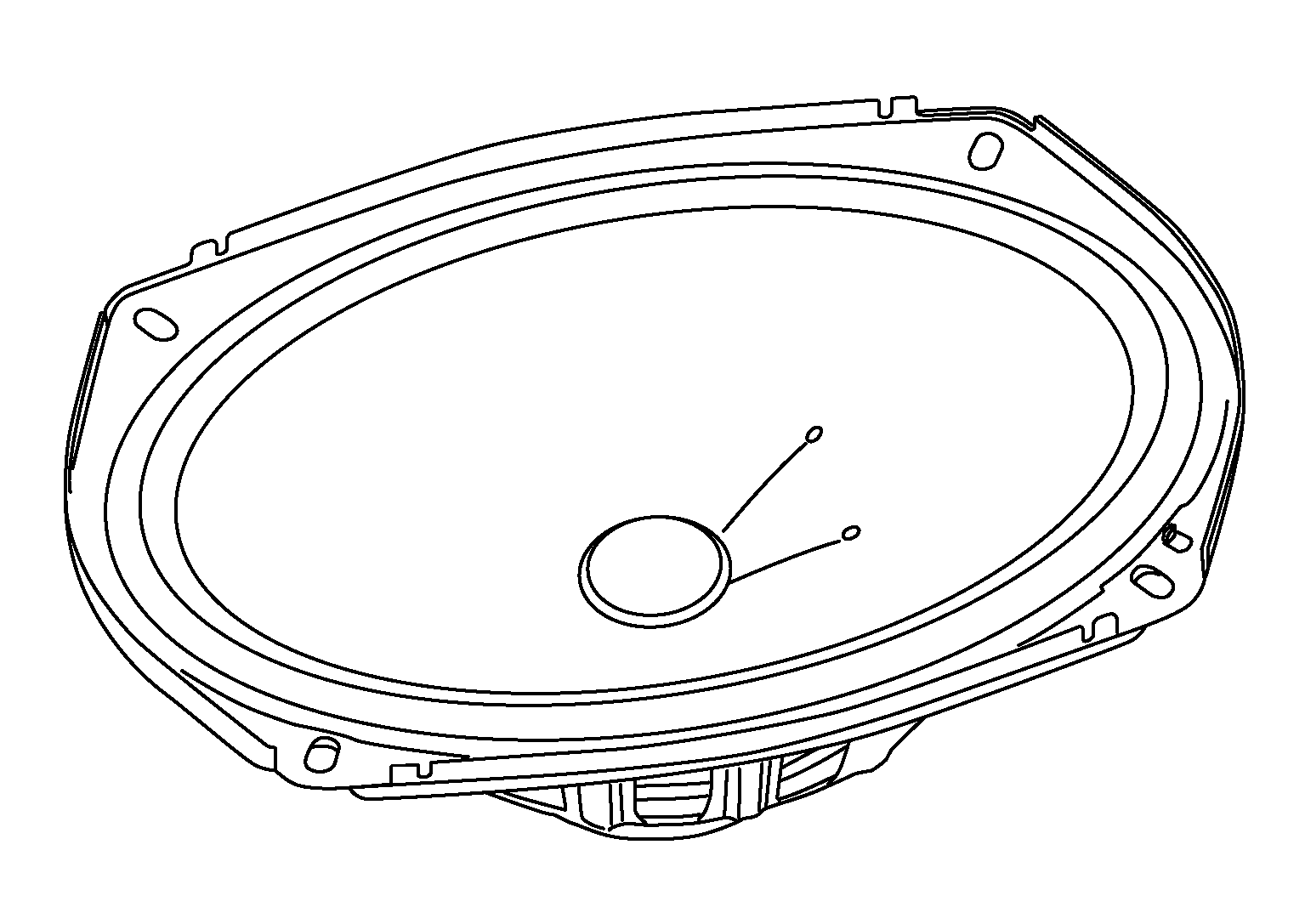

Front Door Speaker

15.2 x 22.9 cm (6 x 9 in) speakers are installed in the bottom of the front doors.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output low range sounds.

Rear Door Tweeter (With Bose Centerpoint Audio System)

2.5 cm (1 in) speakers are installed in the center front of the rear doors.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output high range sounds.

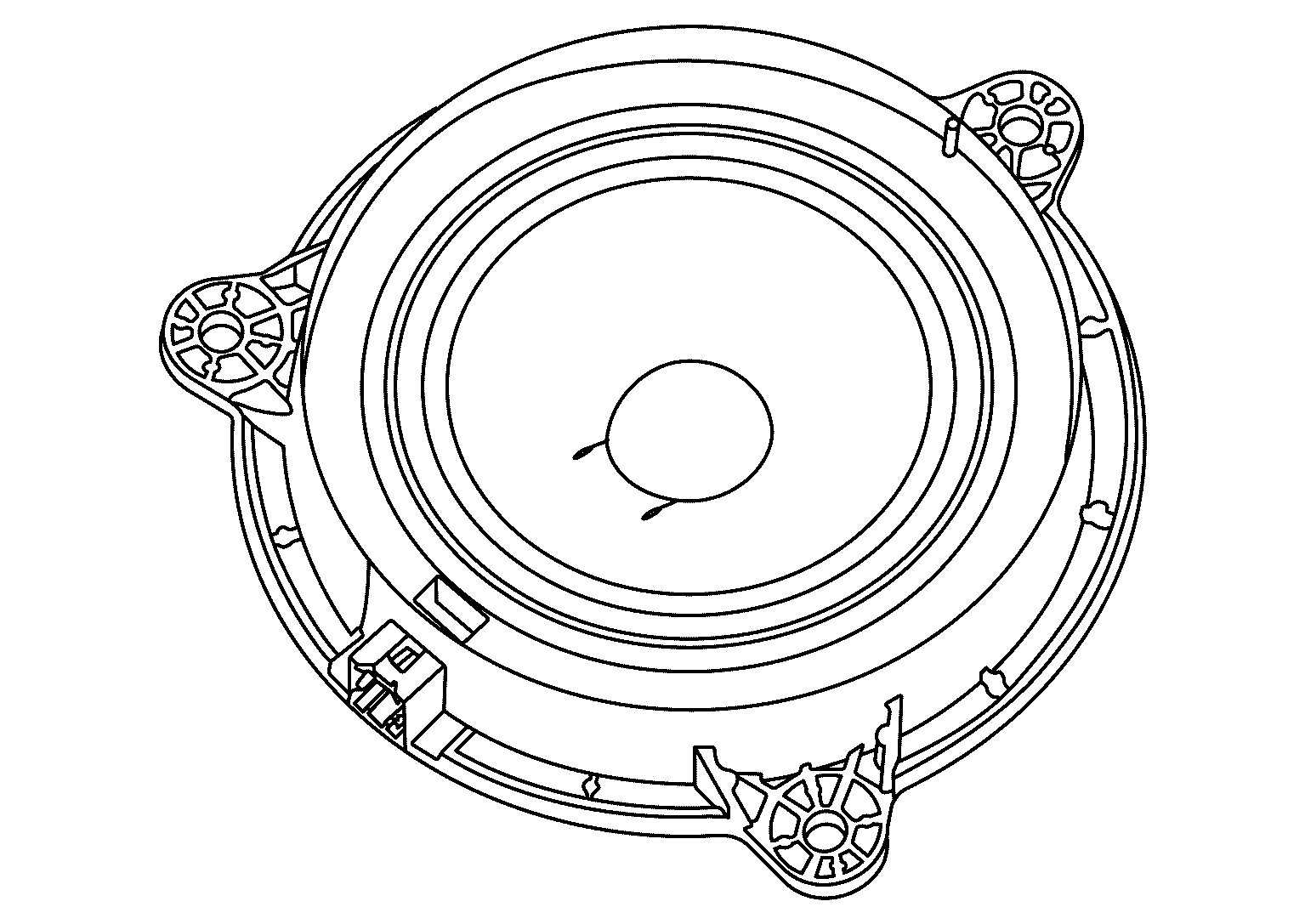

Rear Door Speaker

16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output mid range sounds.

Rear Side Speaker

10.2 cm (4 in) speakers are installed in the luggage side lower finishers.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signals generated by the Bose speaker amp. output mid range sounds.

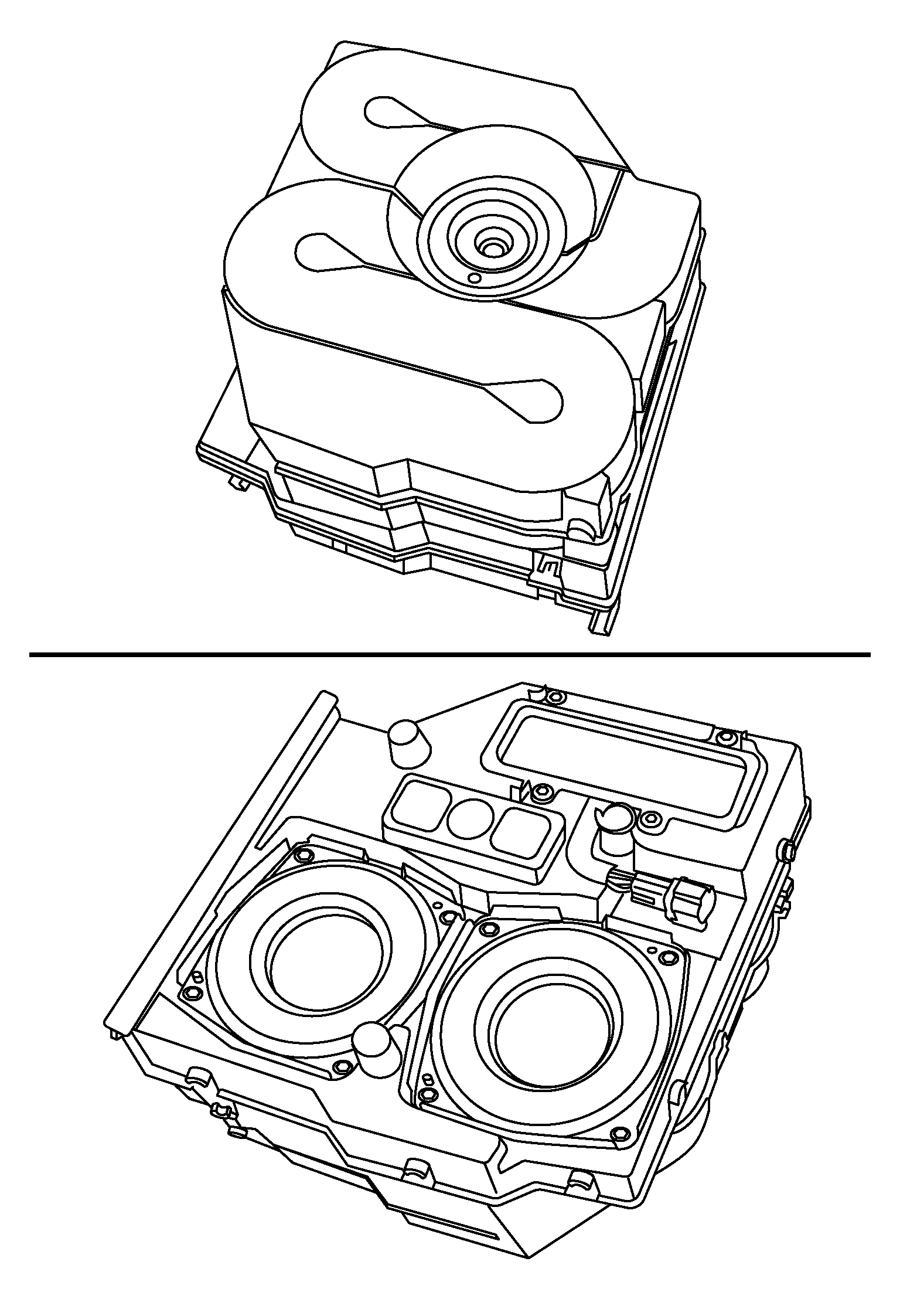

Subwoofer

The subwoofer enclosure contains two 12.7 cm (5 in) speakers and is installed inside the storage box in the luggage area.

Courtesy of NISSAN NORTH AMERICA, INC.
Sound signal is input from the Bose speaker amp. to output low range sound.
