Audio System (INFINITI INTOUCH)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

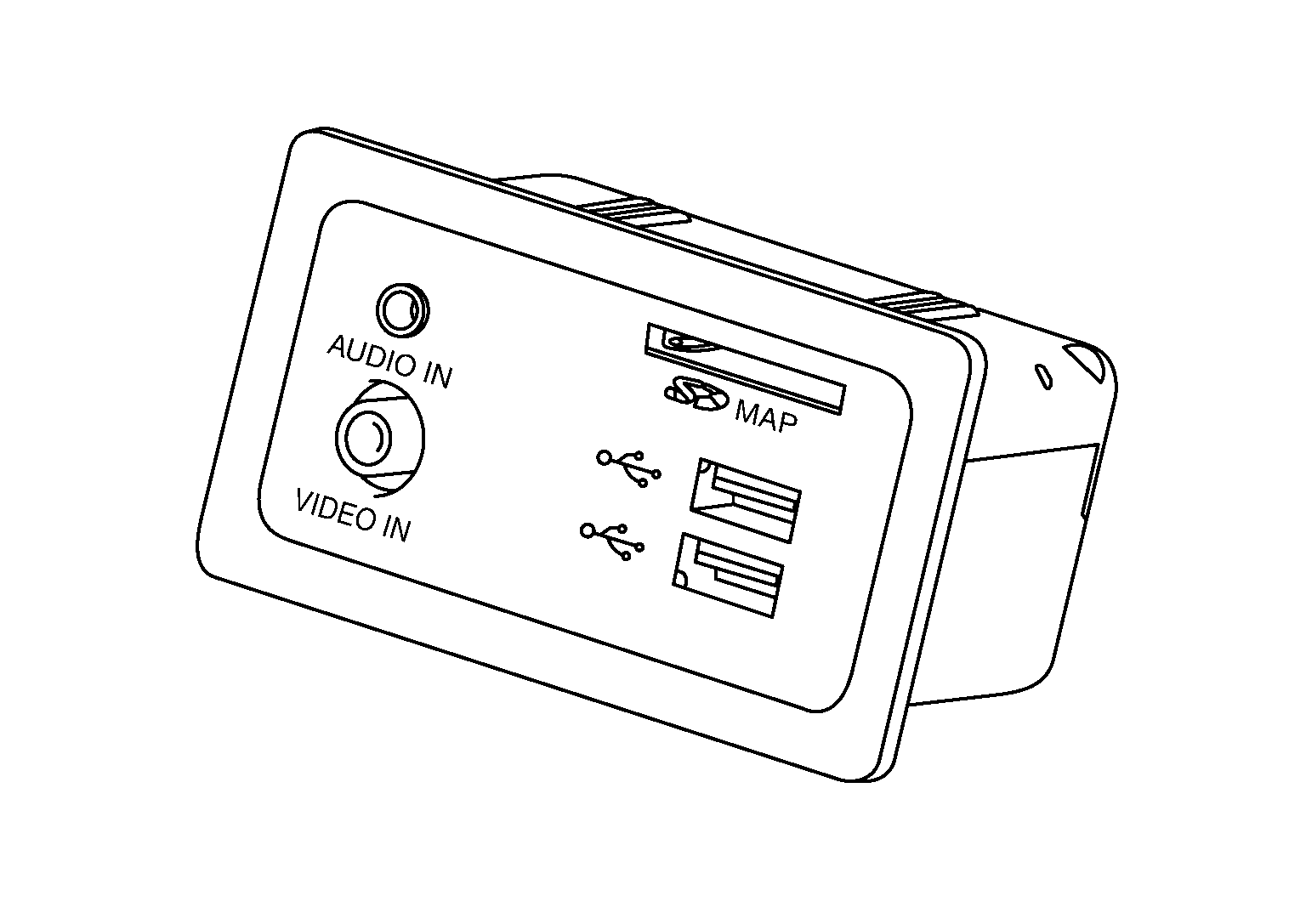

Front auxiliary input jacks are located in the center console bin.

Courtesy of NISSAN NORTH AMERICA, INC.
Front auxiliary input jacks incorporate the following components:
- SD MAP card used for the Navigation maps.
- USB connectors (2), connected to the Display Control Unit.
- AUDIO IN (AUX) connector, connected to the AV control unit.
- VIDEO IN connector, connected to the AV control unit.
