Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, remove the outer cover.
  2. Partially lower headlining (rear). Refer to Removal and Installation .
  3. Disconnect harness connector from antenna base.
  4. Remove nut from satellite radio antenna (1) and remove.

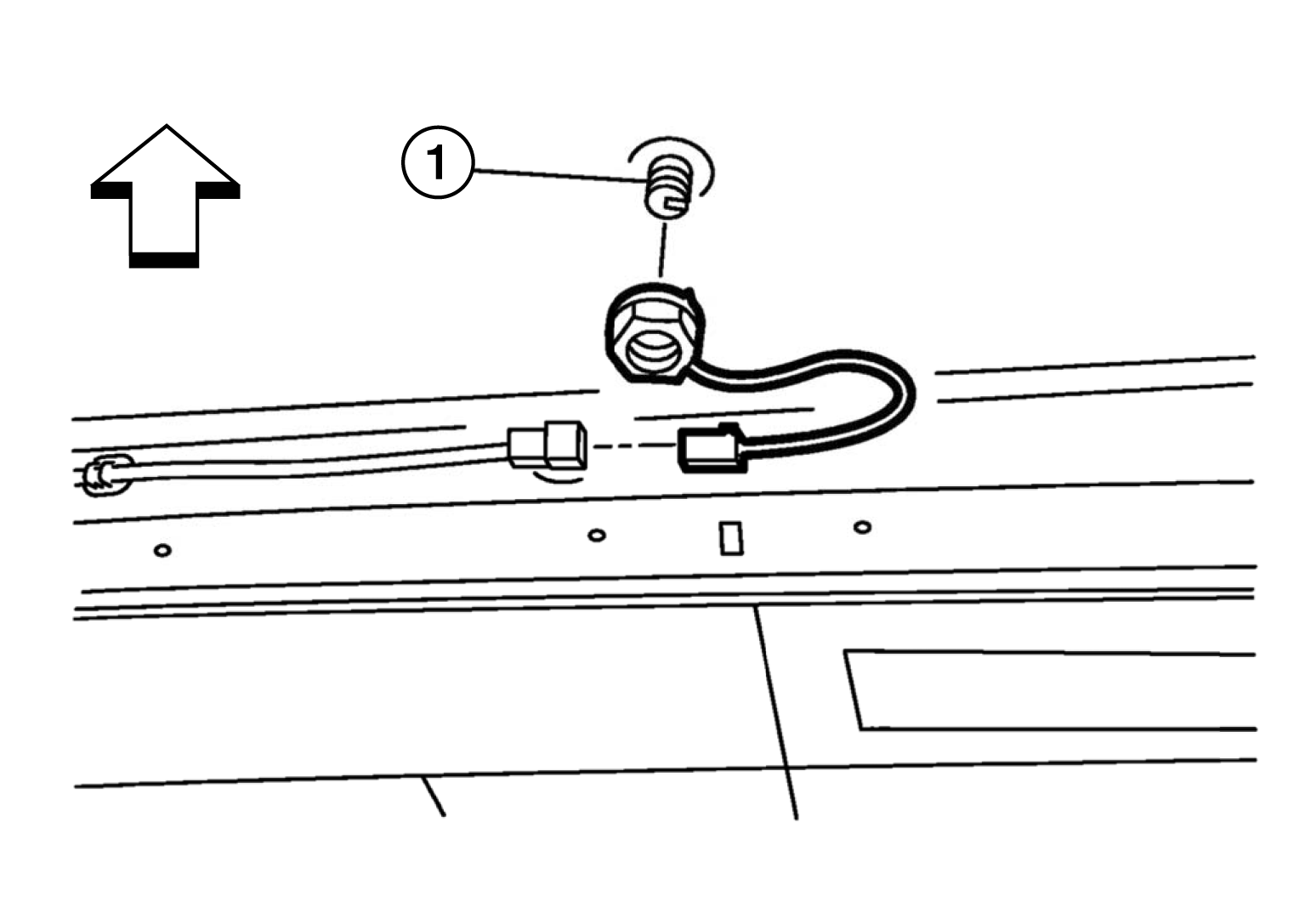

    GNSAWNIA2587Z-587Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front
