Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back pillar finisher. Refer to Removal and Installation .
  2. Remove rear side speaker screws (A) from back pillar finisher (1).

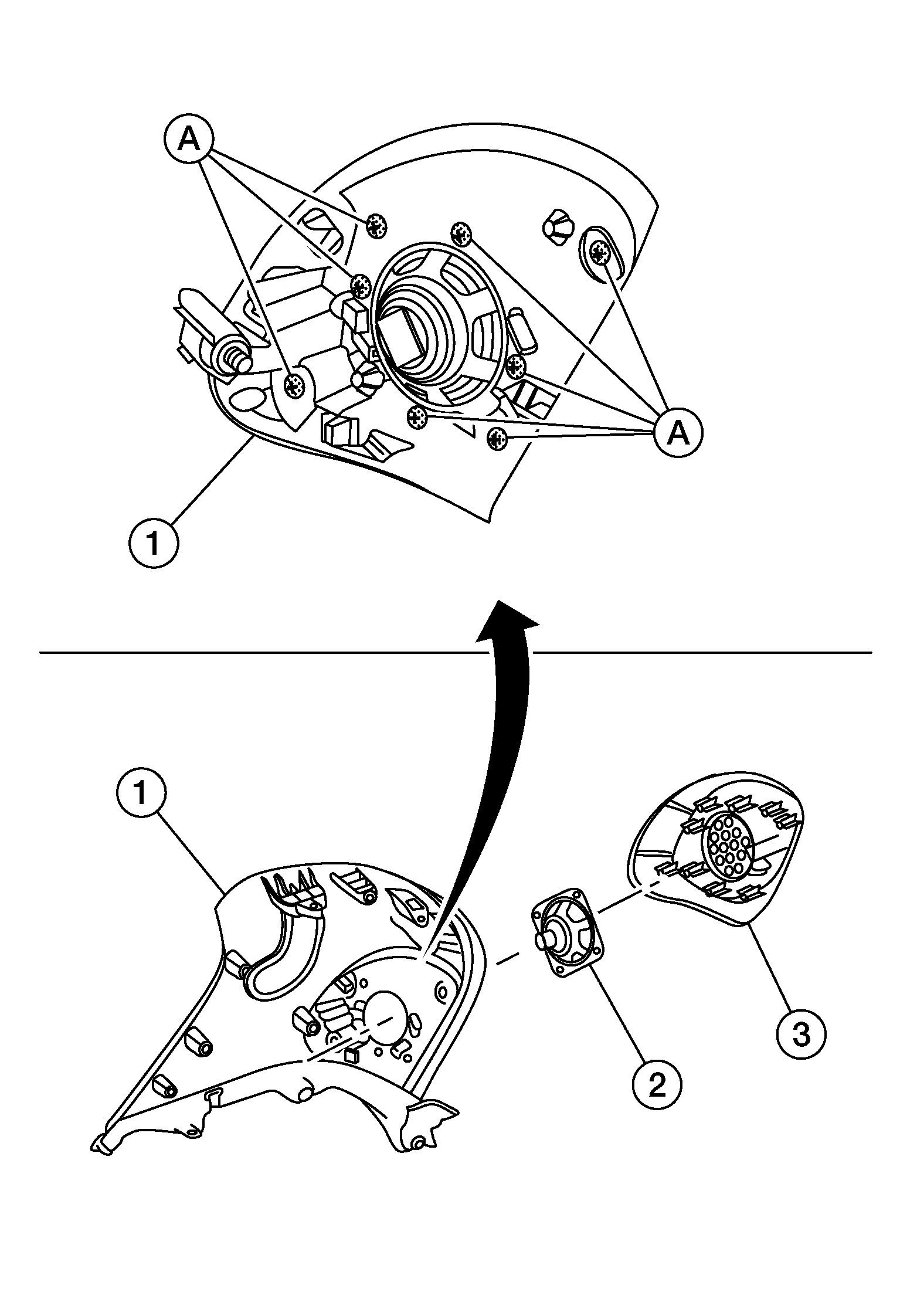

    GNSALNIA1505Z-505Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the rear side speaker (2) and grille (3).
