Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to Removal and Installation .
  2. Remove preset switch lower screws.
  3. Release pawls and detach preset switch from instrument panel assembly using suitable tool.

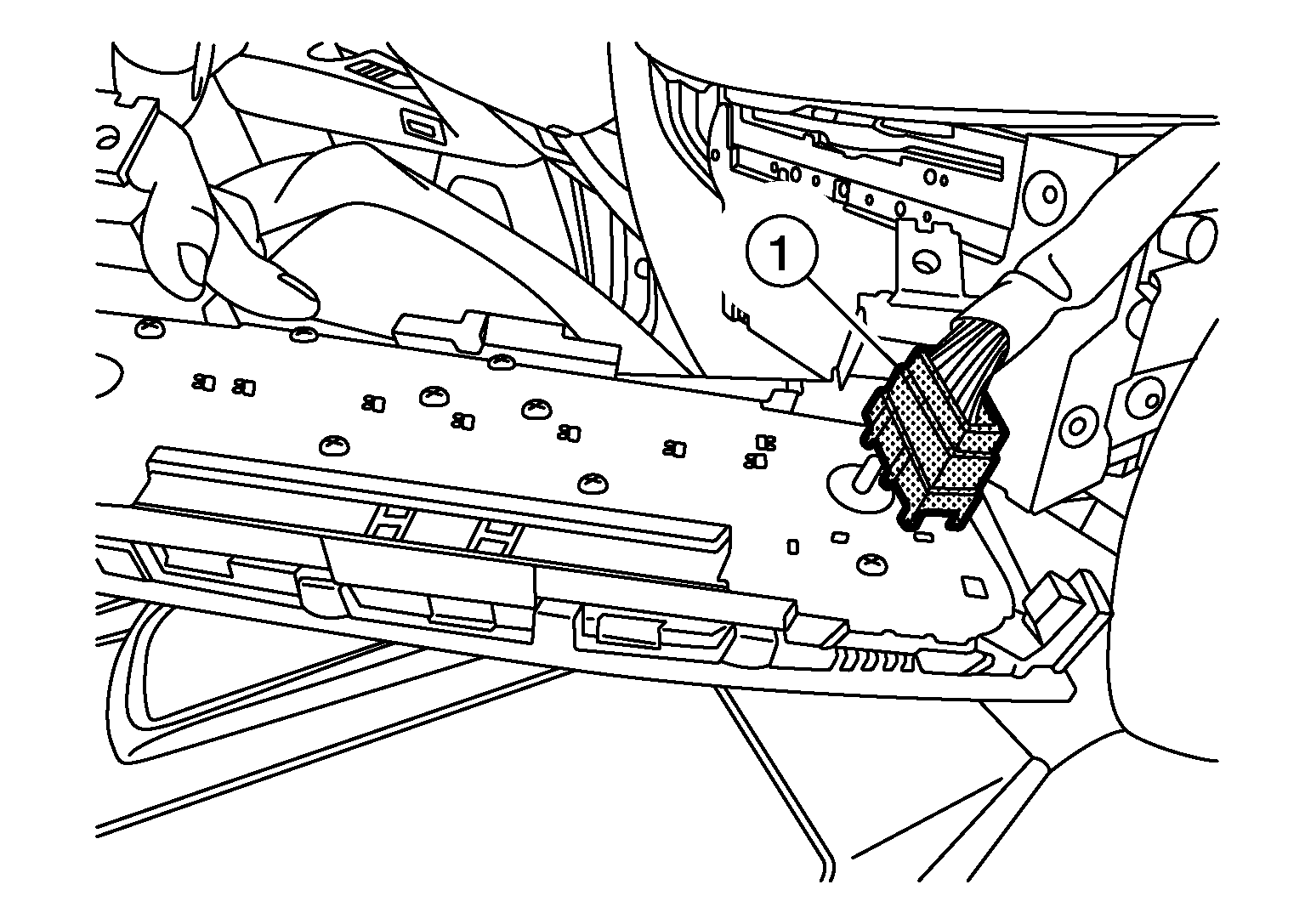

  4. Disconnect harness connector (1) from preset switch.
    GNSALIIA1147Z-147Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove preset switch from instrument panel assembly.
