Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front room/map lamp assembly. Refer to Removal and Installation .

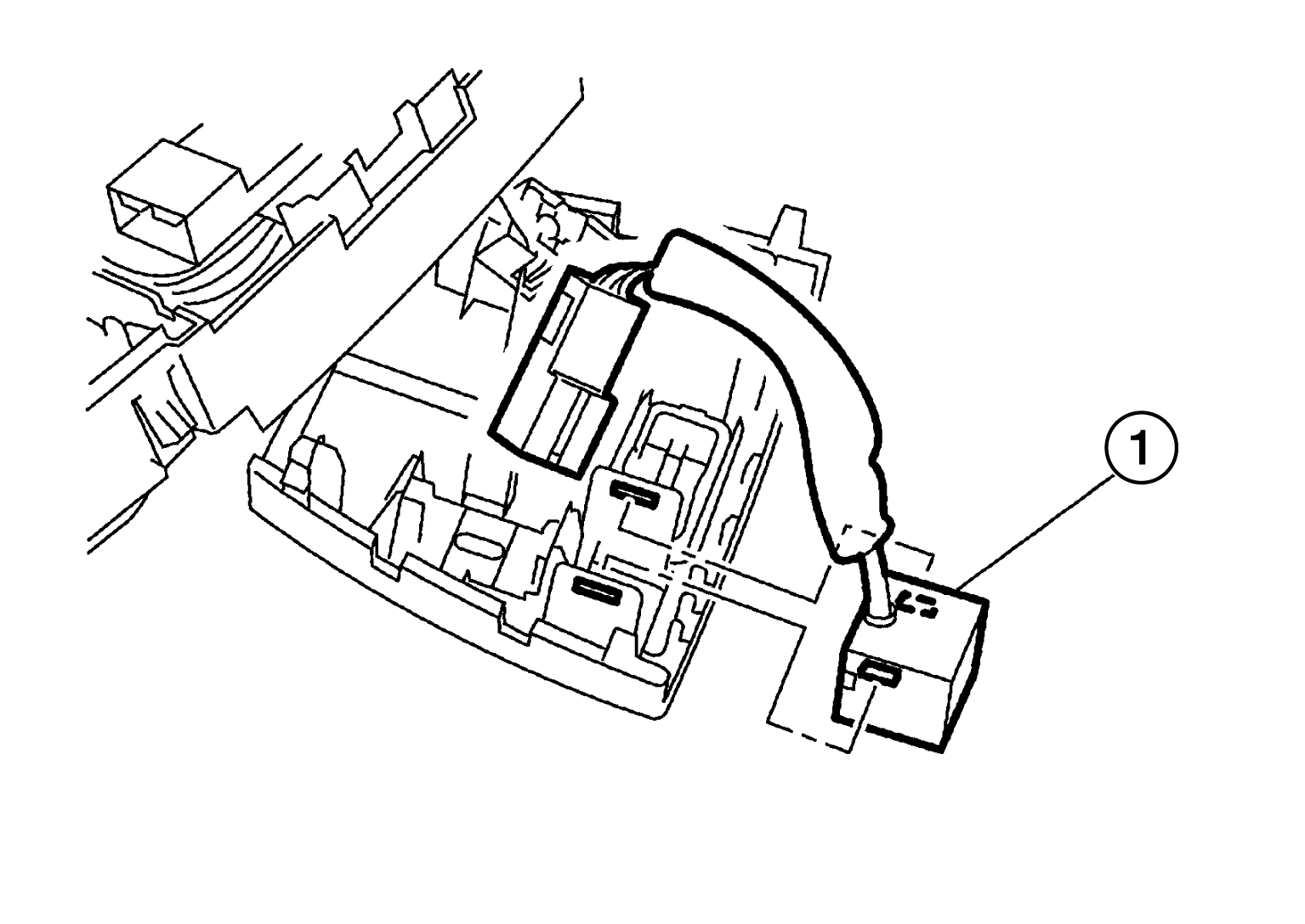

  2. Remove the microphone (1) from the front room/map lamp assembly.
    GNSAWNIA2584Z-584Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Carefully handle the pawls that retain the microphone to avoid damaging.
