Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the combination meter. Refer to Removal and Installation .
  2. Disconnect the harness connector from AV control unit.
  3. Release the harness feeder clips.

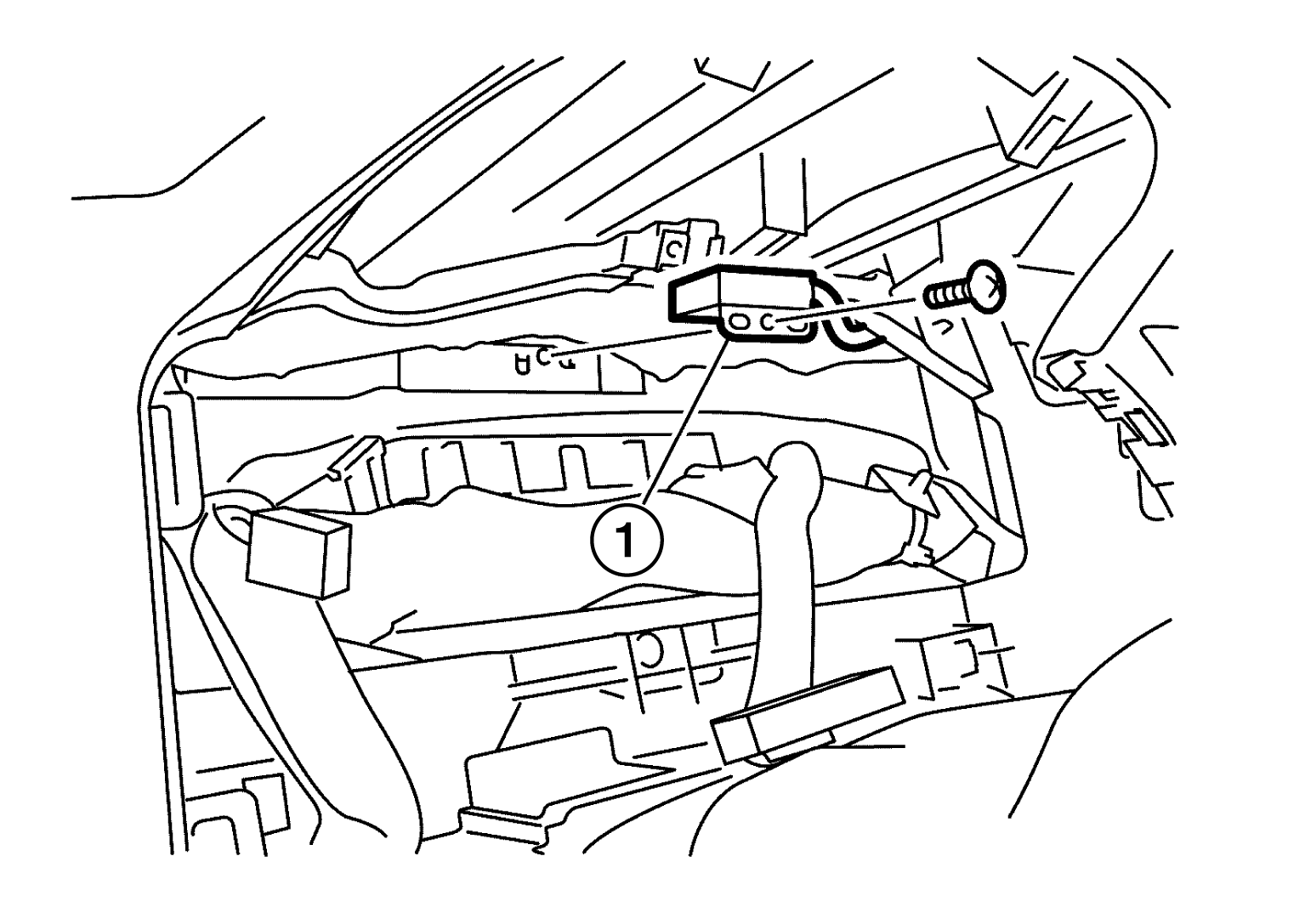

  4. Remove GPS antenna screw and the GPS antenna (1).
    GNSAWNIA2586Z-586Courtesy of NISSAN NORTH AMERICA, INC.
