Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

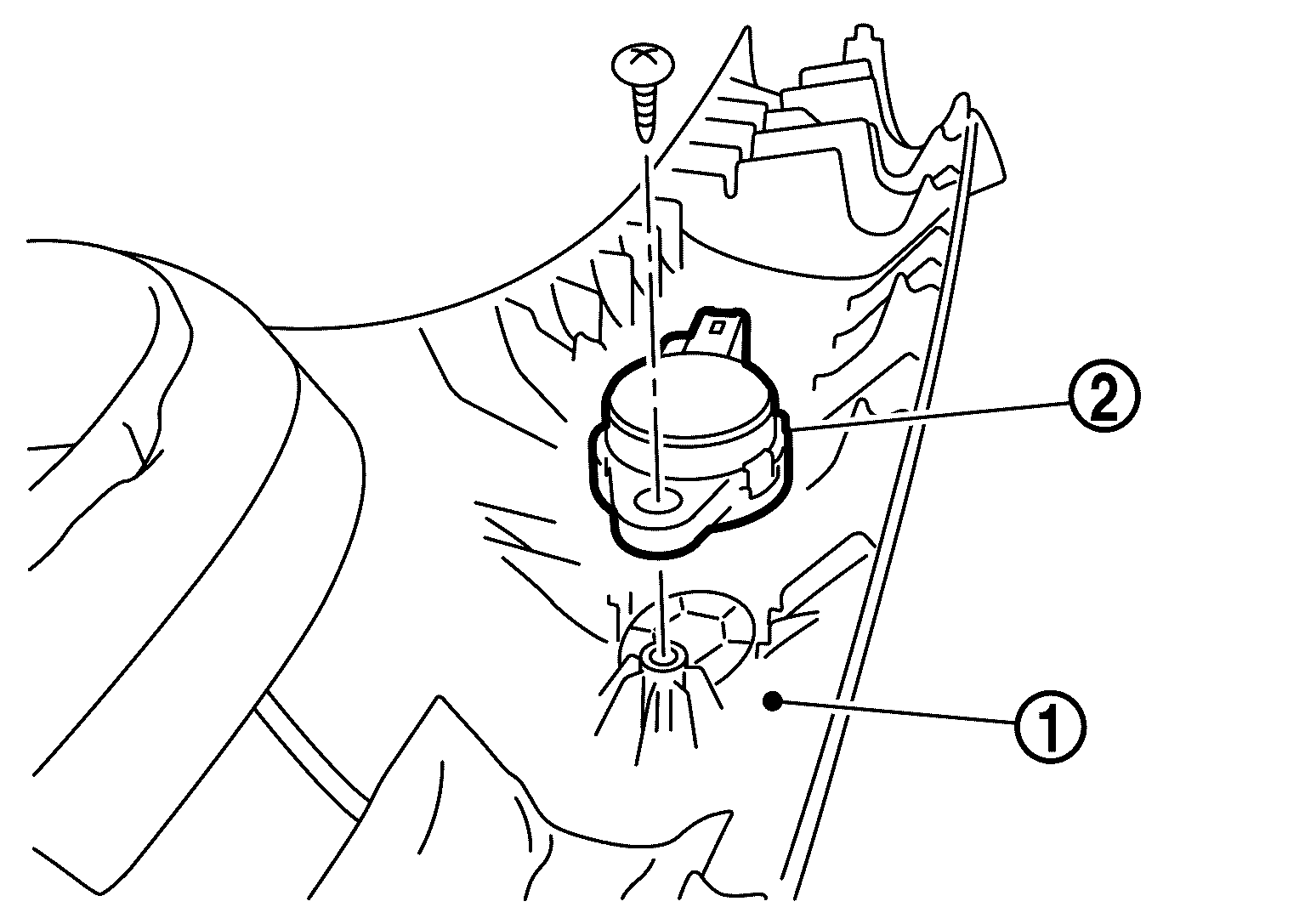

  1. Remove front pillar finisher. Refer to Removal and Installation .
  2. Remove two front tweeter screws.
  3. Remove front tweeter (2) from front pillar finisher (1).
    GNSJSNIA3786Z-786Courtesy of NISSAN NORTH AMERICA, INC.
