Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the hood.

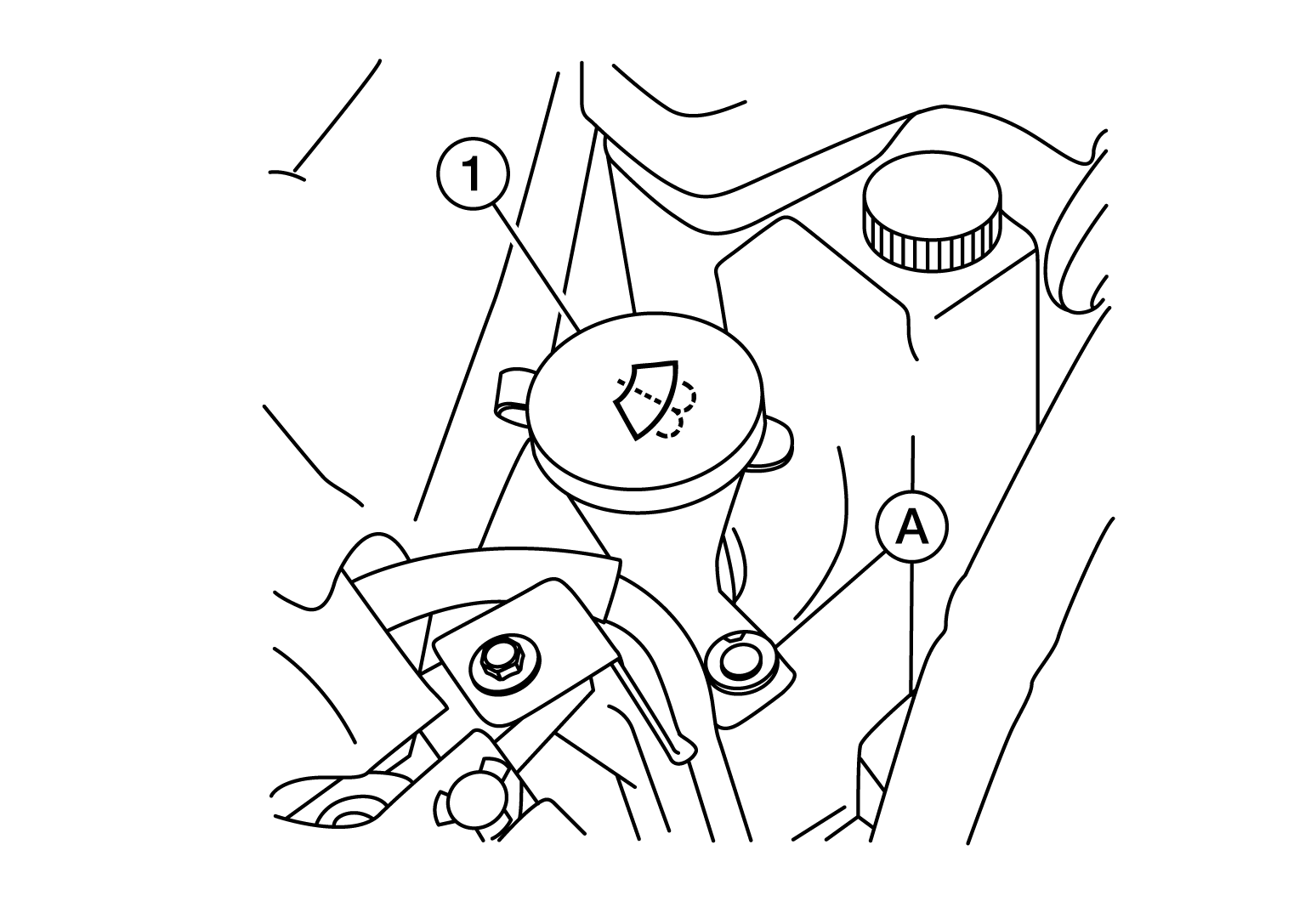

  2. Remove the washer tank inlet clip (A) from the coolant reservoir and pull the washer tank inlet tube (1) from the washer tank.
    GNSALLIA1096Z-096Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the front fender protector (RH). Refer to Removal and Installation .
  4. Disconnect the harness connector from the washer pump.
  5. Disconnect the harness connector from the washer level switch.
  6. Disconnect the front washer tube and rear washer tube.
  7. Remove the washer tank bolts.
  8. Remove the washer tank.
