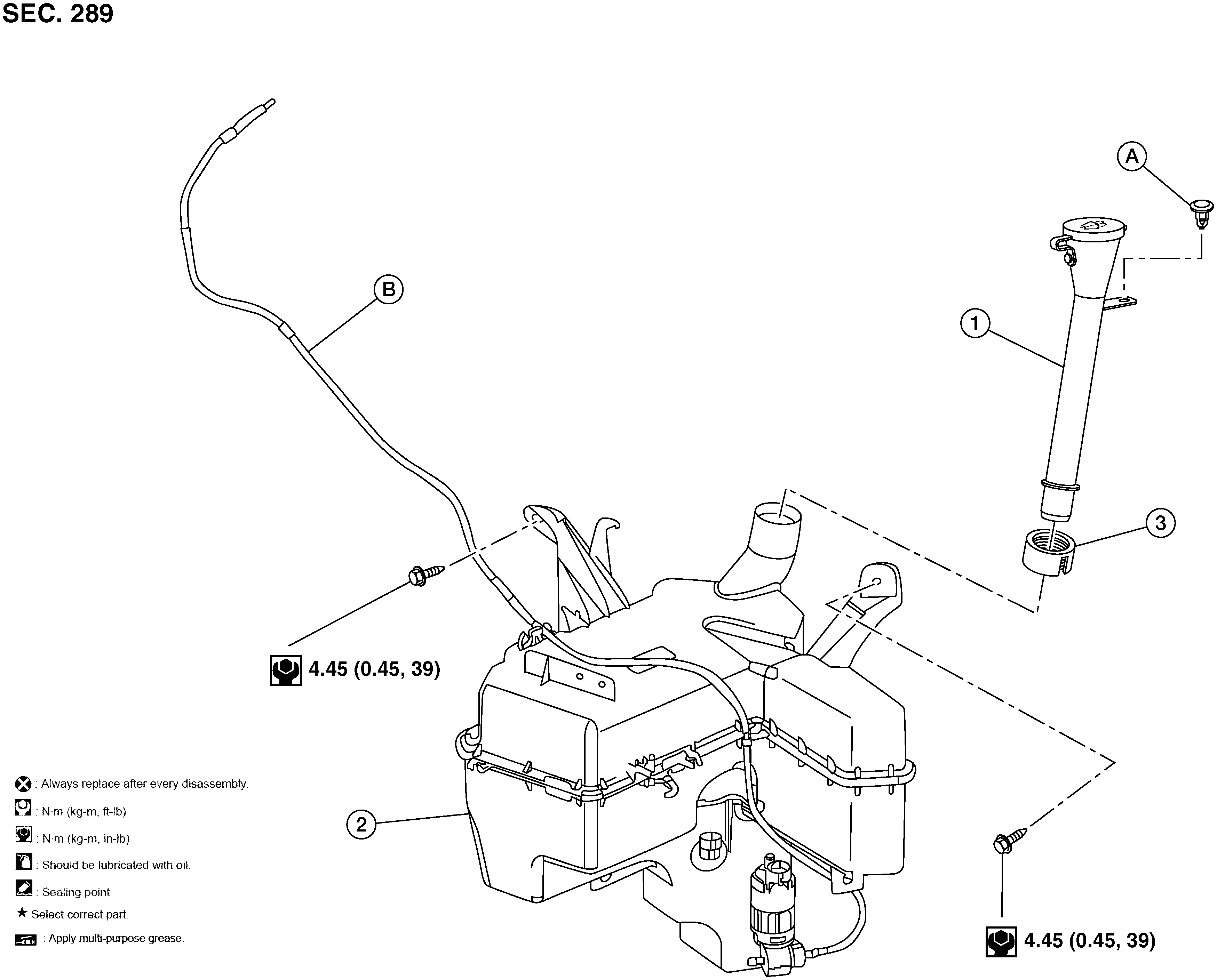

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Washer inlet tank |
2. |
Washer tank |
3. |
Grommet |
|
A. |
Clip |
B. |
To front washer tube. Refer to Washer Tube Layout . |
