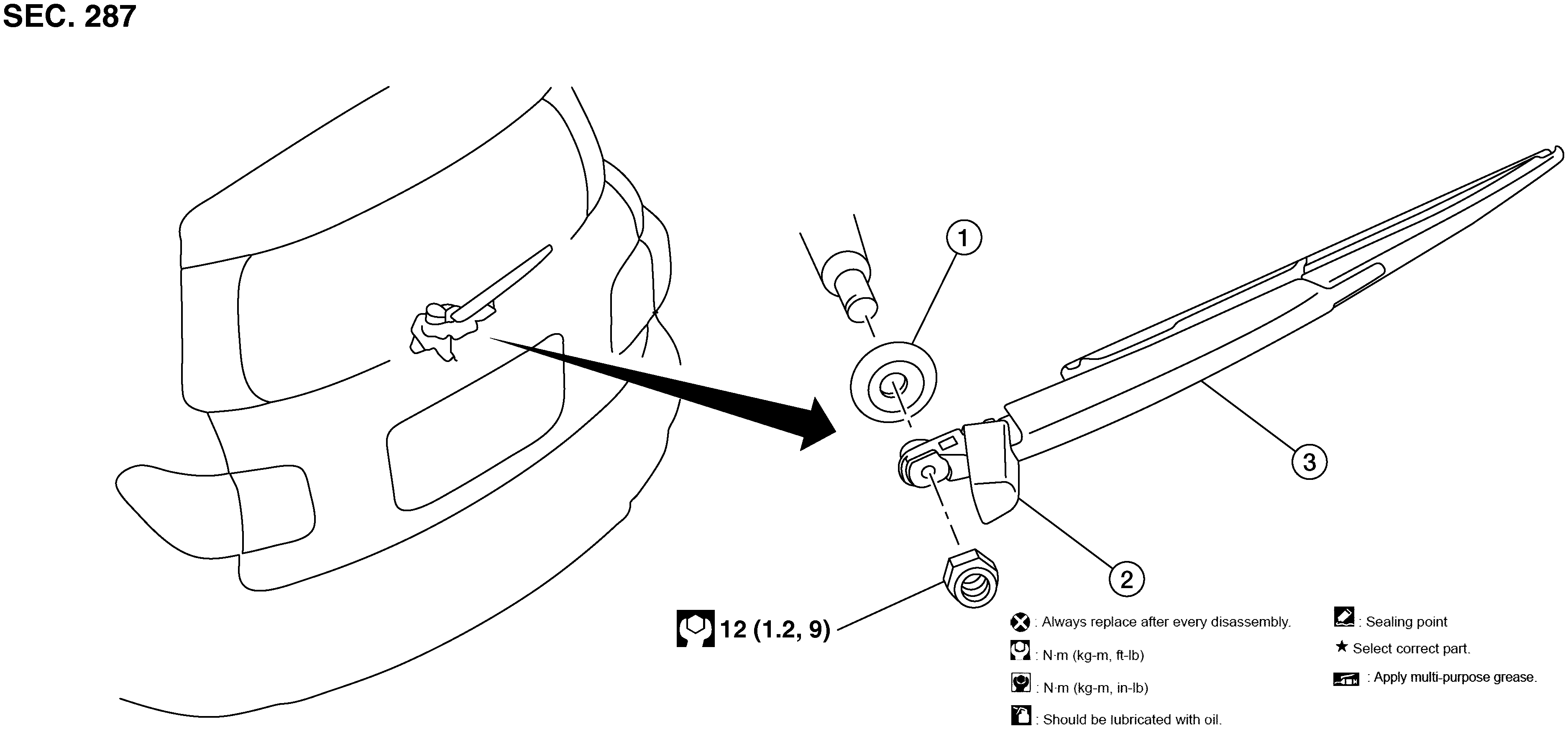

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWLIA0021Z-021Courtesy of NISSAN NORTH AMERICA, INC.

1.

Pivot seal

2.

Rear wiper arm cover

3.

Rear wiper arm
